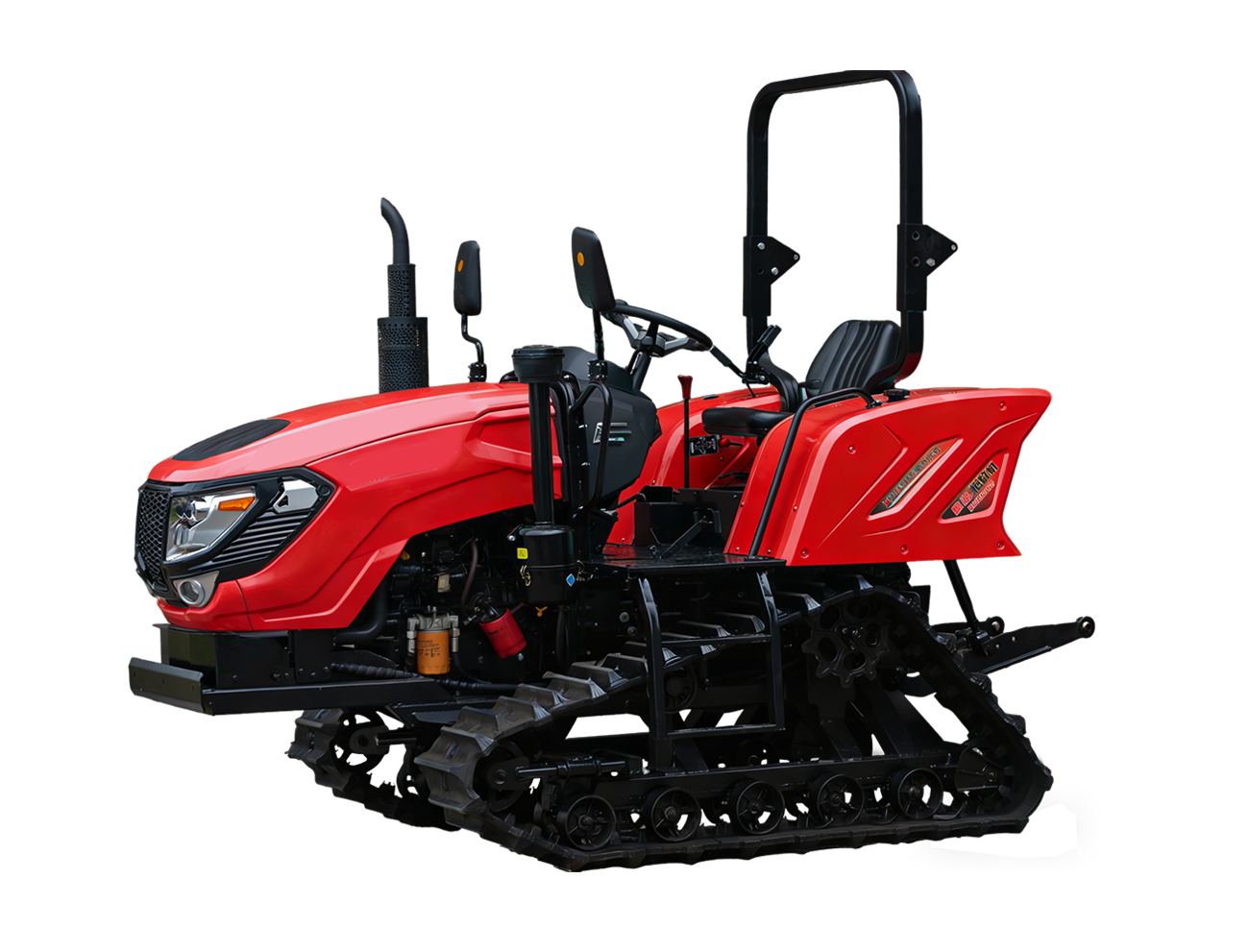

SRE502(Crawler Tractor)
Structure Type Crawler-Type Overall Dimensions（mm） 2970×1450×2400 Track Gauge（mm） 980 Center Distance of Main Transmission Gear Shafts（mm） 96 Minimum Operating Weight（kg） 1800 Minimum Specific Mass（kg/kw） 48.9 Engine Model 4L28P50 Engine Structure Type 4-Cylinder, Water-Cooled, 4-Stroke Engine Output（kW） 36.8 Rated Speed（r/min） 2400 Track Specification（Pitch × Number × Width） 90mm×44×350mm Track Ground Contact Length（mm） 1170 Steering Method Dual Power Flow Differential Steering Clutch Type Dual-Stage Dry Clutch Transmission Type Mechanical Range-Type Transmission Number of Gears (Forward / Reverse) 8F + 8R Number of Main Shift Gears 4 Number of Range Shift Gears 2×（1+1） Maximum Design Theoretical Speed（km/h） 12.4 Steering System Type HST (Hydrostatic Transmission) + Dual-Differential System Hitch Type / Category Rear Three-Point Hitch / Category 1 Rear PTO Standard Speed（r/min） 540/760 Maximum Drawbar Pull（KN） ≥10

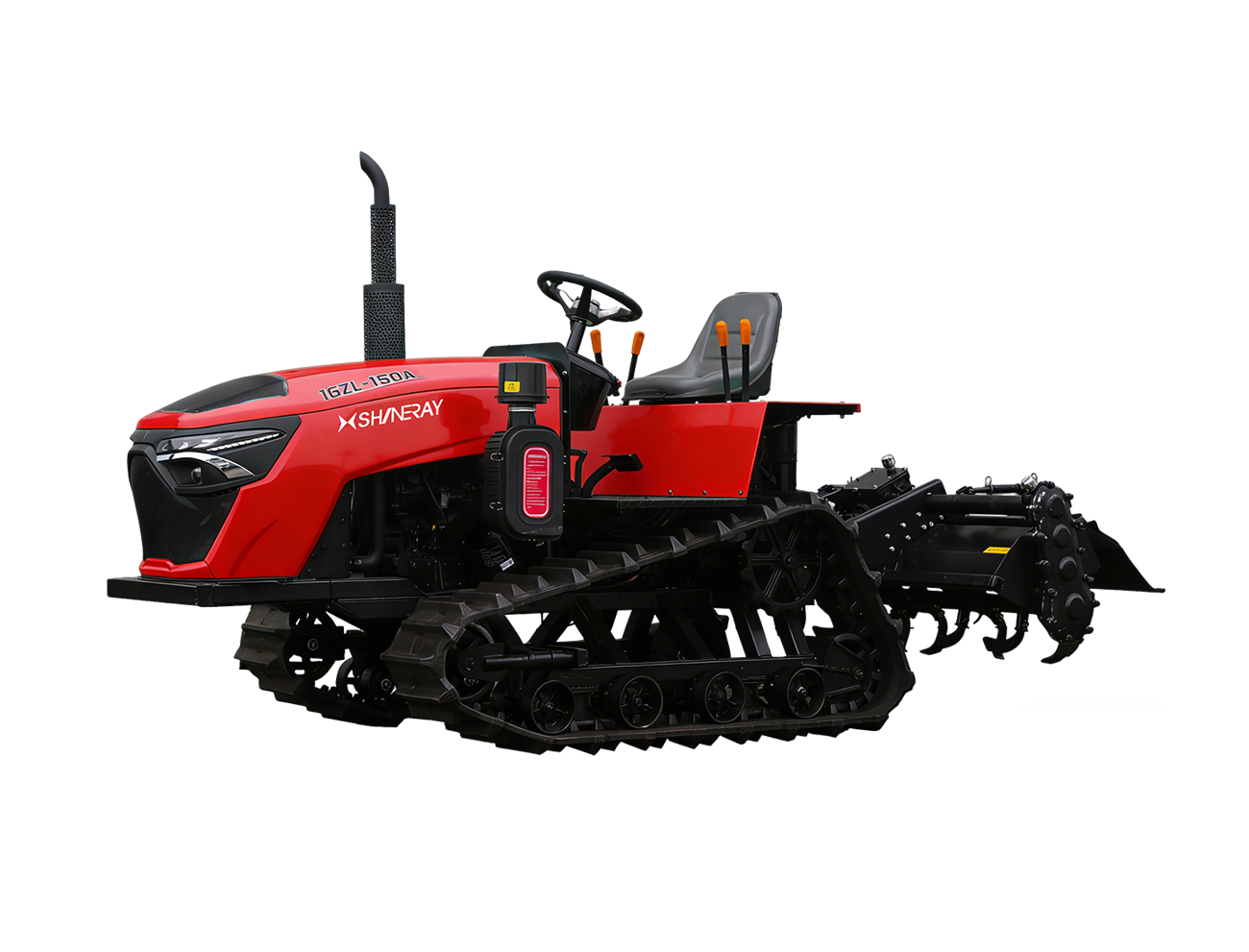

1GZL-150A(Crawler Rotary Tiller)
Output（kW） 36.8 Rated Speed（r/min） 2300 MachineWeight（kg） 1360 Overall Dimensions(mm) 3300×1650×1800 Track Type Double-Guide High-Lug Self-Cleaning Track Tread Width（mm） 950 Track Specification（Pitch × Number × Width） 90mm×45×350mm Minimum Ground Clearance（mm） 400 Gears 6+6 Steering Method Dual Power Flow Differential Steering Starting System Electric Start Service Brake Friction Disc Type Parking Brake Friction Disc Type Implement Attachment Type Universal Joint Direct Connection Working Width （mm） 1500 Transmission Type Full Gear Transmission Total Number of Blades (on Rotor) 30 Rotary Blade Model T205 Working Depth（mm) ≥120

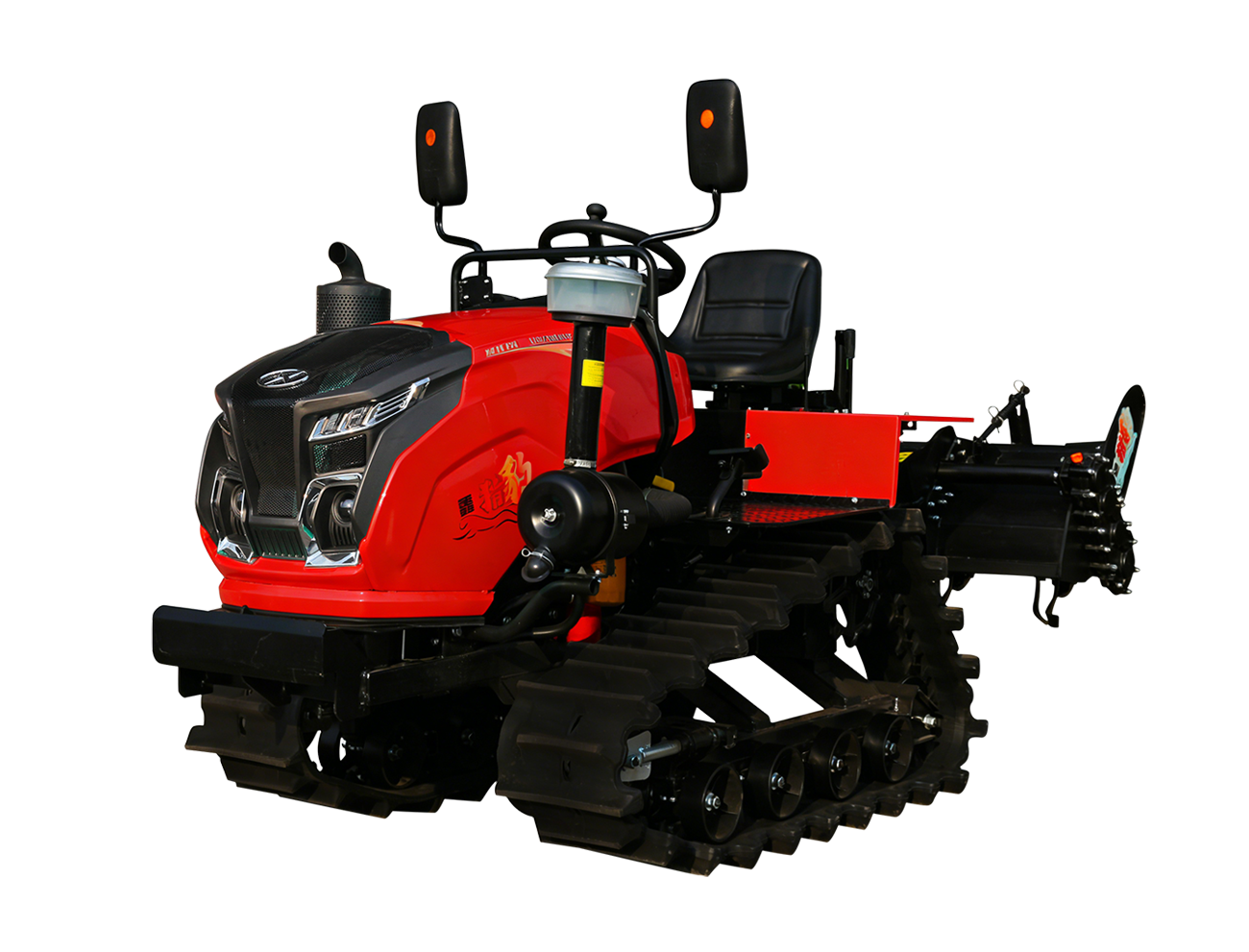

1GZL-130A(Crawler Rotary Tiller)
Output（kW） 22.1 Rated Speed（r/min） 2600
MachineWeight（kg）950+100
Overall Dimensions(mm)2640×1450×1400 Track Type Single-Guide High-Lug Self-Cleaning Track Tread Width（mm） 850 Track Specification（Pitch × Number × Width） 84mm×44×330mm Minimum Ground Clearance（mm） 350 Gears 6+6 Steering Method Dual Power Flow Differential Steering Starting System Electric Start Service Brake Dry Type/Shoe Type Parking Brake Dry Type/Shoe Type Implement Attachment Type Universal Joint Direct Connection Working Width （mm） 1300 Transmission Type Full Gear Transmission Total Number of Blades (on Rotor) 26/34 Rotary Blade Model 195/225 Working Depth（mm) ≥120

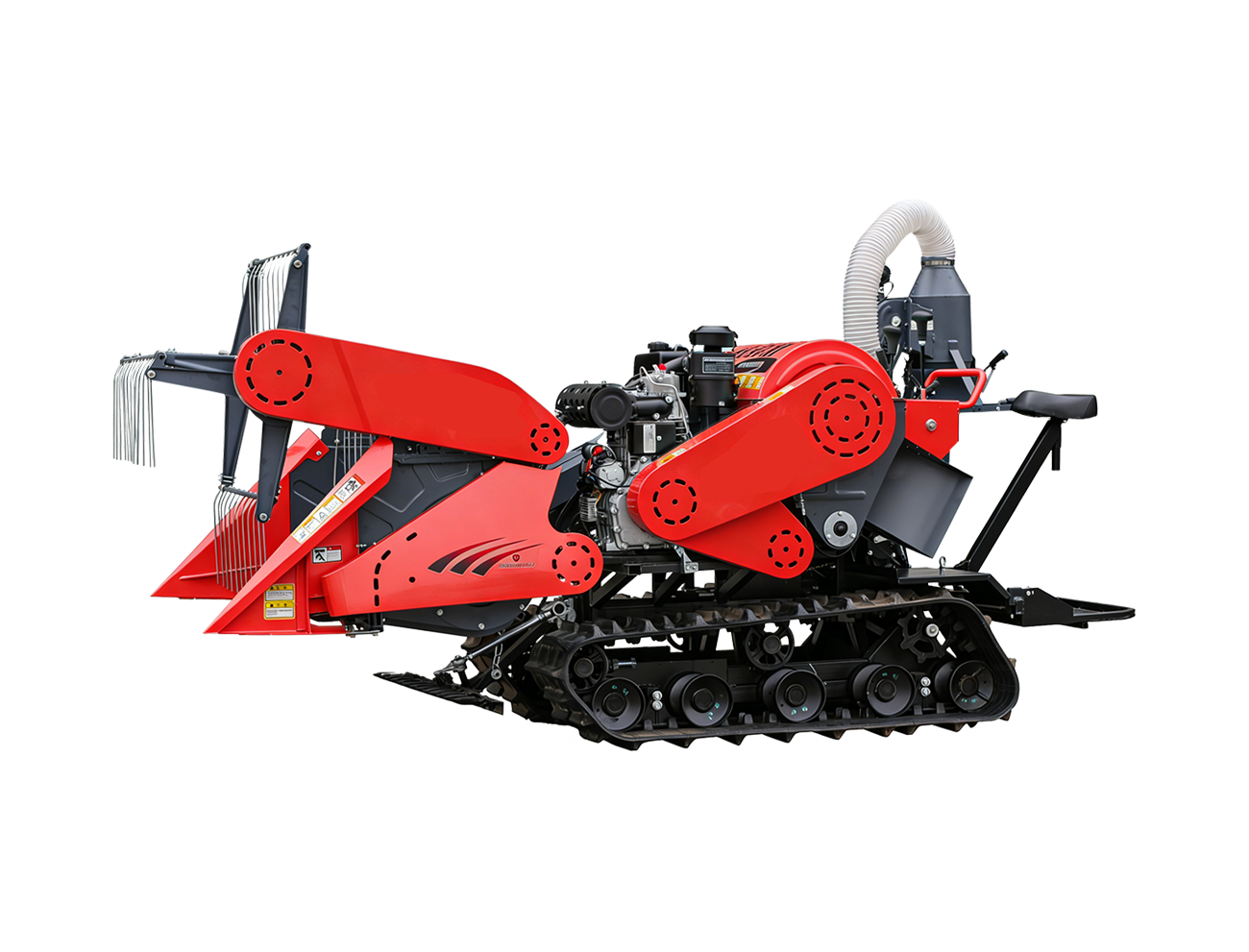

4LZ-1.1LB(Combine Harvester)
Structure Type Crawler-Type, Ride-On, Full-Feed Overall Dimensions（mm） 3100×1350×1700 MachineWeight（kg） 645 Header Working Width（mm） 1150 Minimum Ground Clearance（mm） 210 Rated Feed Rate（kg/S） 1.1 Gears
Working Gears: Slow, Neutral, Medium, Fast
Travel Gears: Forward, Neutral, ReverseWorking Speed（m/s） 0.4-1.2 Output per Hour （h㎡/h） ≥0.06 Fuel Consumption （kg/hm2） ≤35 Engine Model
KD1100F Air-Cooled Diesel EngineEngine Structure Type
Vertical, Single-Cylinder, 4-Stroke, Air-Cooled, Direct InjectionRated Powe（kW） 9.8 Rated Speed（r/min） 3600 Cooling System Air-Cooled Starting System Electric Start Header Lifting Method Power Hydraulic Control Number of Cutter Assemblies 2 Auger Type Retractable Finger Type Reel Type Eccentric Spring Tooth Type Intermediate Conveyor Type Chain Rake Type Threshing Cylinder Type Axial Flow TypeRasp Bar Threshing Drum Dimensions（mm） 390×890 Grain Conveyor Type Scraper Type Grain Collection Method Manual Bagging Track Specification（Pitch × Number × Width） 79mm×41×360mm Tread Width（mm） 690 Transmission Type Step-Type, with Reverse Travel Clutch Type Tension Pulley Type Brake Type Friction Disc Type Working Clutch Type Tension Pulley Type Steering Method Dog Clutch Steering

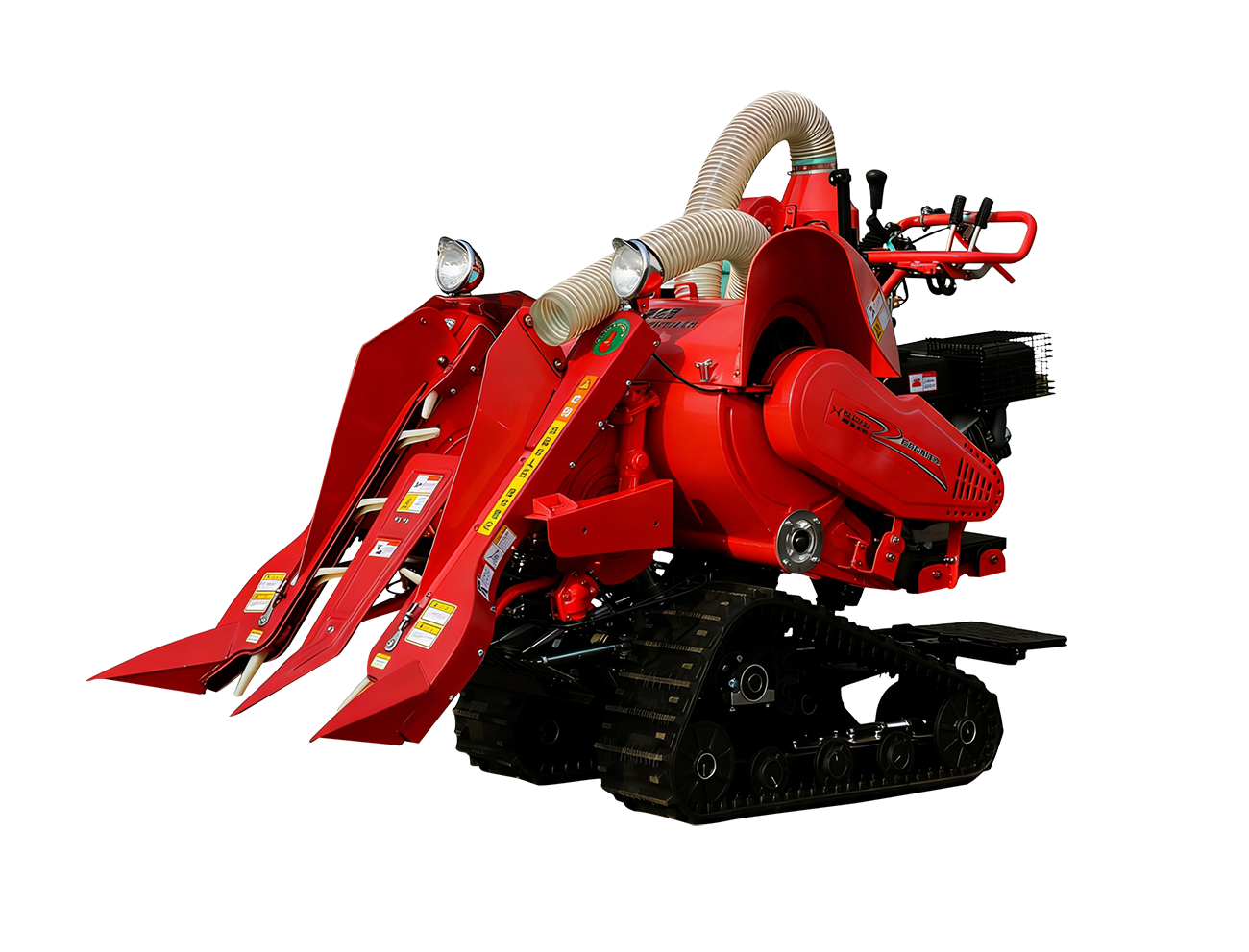

4LZ-0.6L(Mini Harvester)
Structure Type Crawler-Type, Full-Feed Overall Dimensions（mm） 2460×1000×1570 MachineWeight（kg） 320 Header Working Width（mm） 900 Minimum Ground Clearance（mm） 180 Rated Feed Rate（kg/S） 0.6 Gears
5 Positions (Slow, Neutral, Fast, Neutral, Reverse)Working Speed（m/s） 0.5-0.9 Output per Hour （h㎡/h） ≥0.06 Fuel Consumption （kg/hm2） ≤30 Engine Model
180F/P Gasoline EngineEngine Structure Type
Single-Cylinder, 4-Stroke, OHV, Horizontal ShaftRated Powe（kW） 6.5 Rated Speed（r/min） 3600 Cooling System Air-Cooled Starting System Electric Start Header Lifting Method Manual Hydraulic Control Number of Cutter Assemblies 2 Auger Type Screw Type Reel Type Finger Type Intermediate Conveyor Type / Threshing Cylinder Type Axial Flow TypeRasp Bar Threshing Drum Dimensions（mm） 360×640 Grain Conveyor Type Scraper Type Grain Collection Method Manual Bagging Track Specification（Pitch × Number × Width） 72mm×28×250mm Tread Width（mm） 520 Transmission Type Step-Type, with Reverse Travel Clutch Type Tension Pulley Type Brake Type Drum Type Working Clutch Type Tension Pulley Type Steering Method Dog Clutch Steering
