Medium Machinery

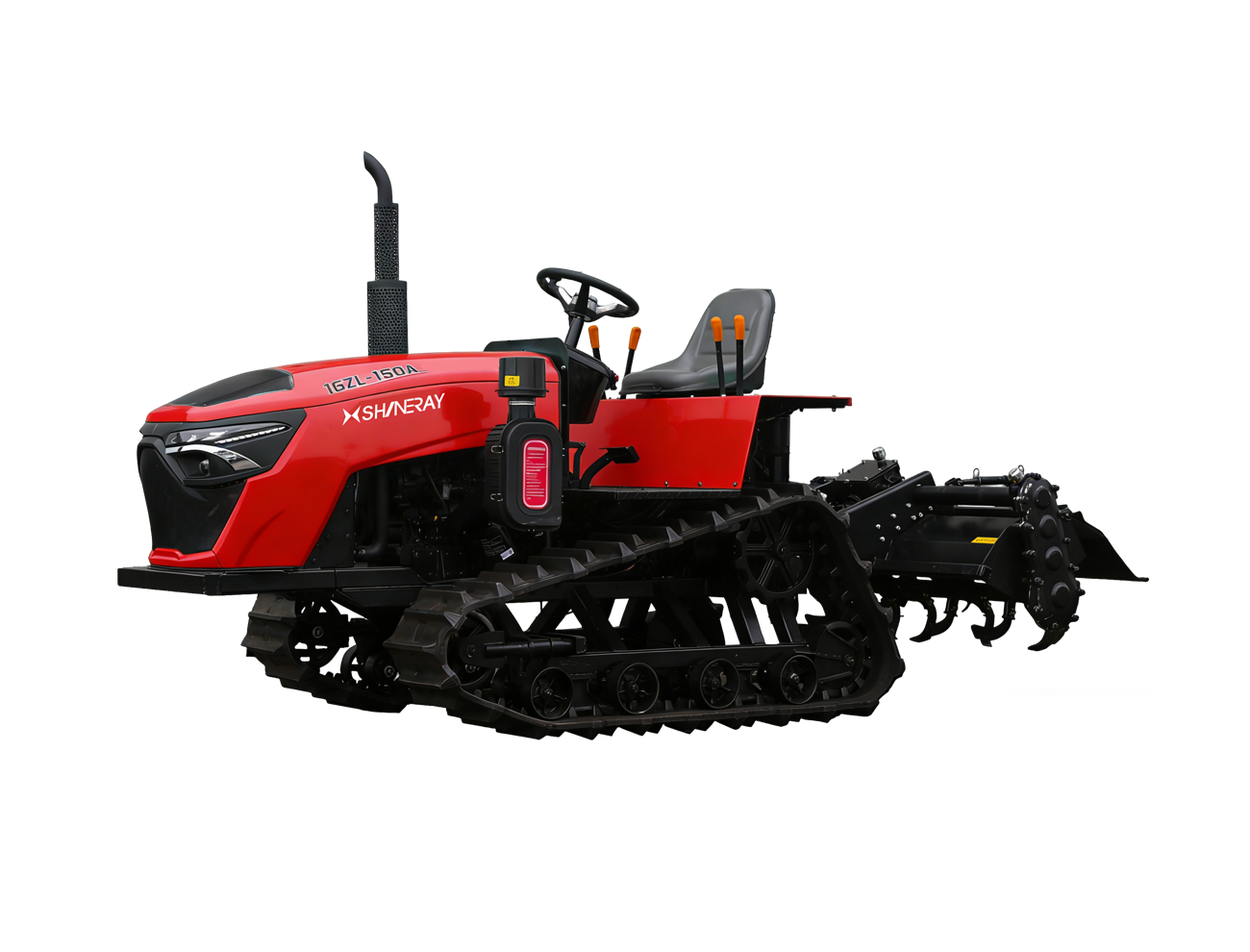

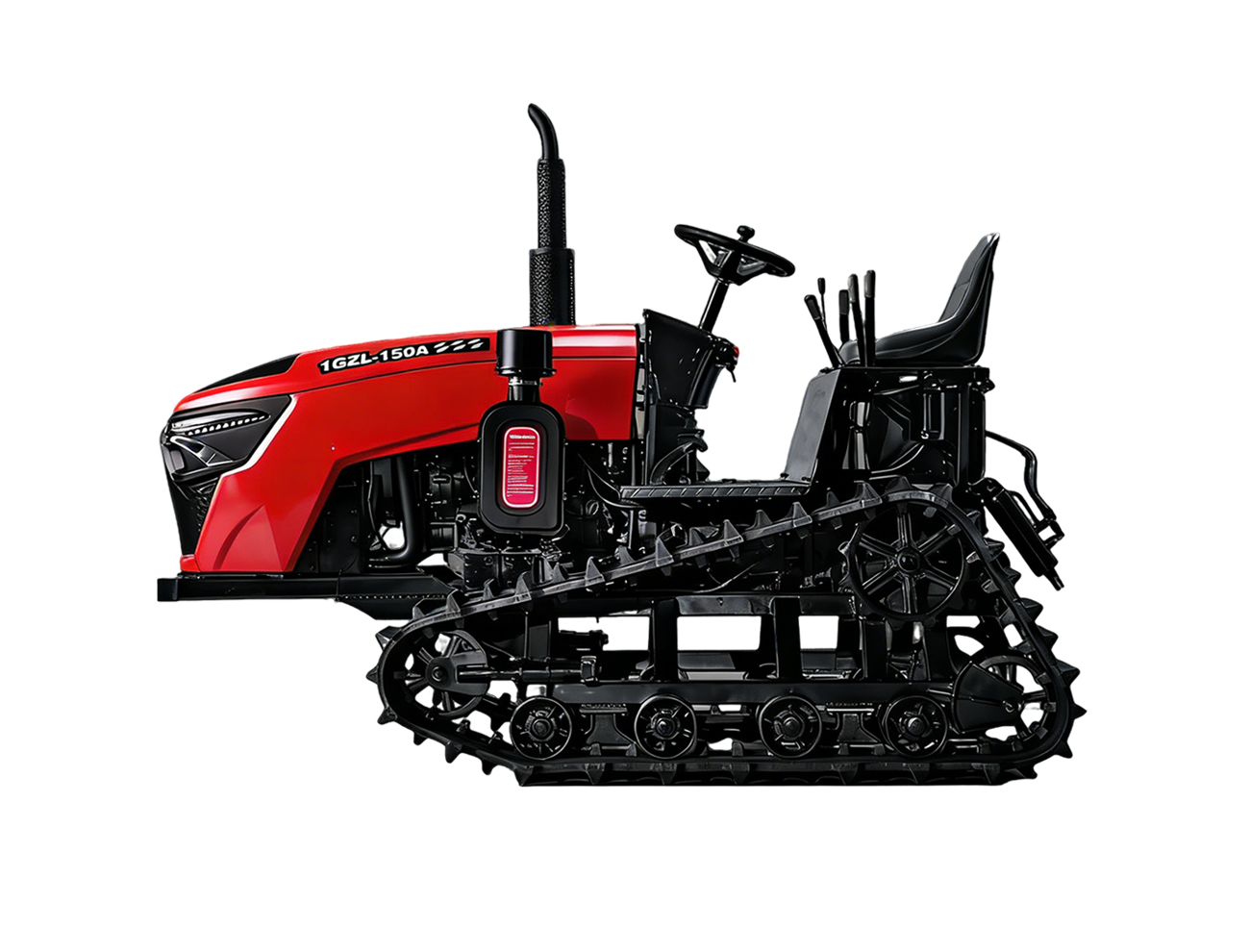

1GZL-150A(Crawler Rotary Tiller)
-
Output[ kw-（r/min）]36.8
-
Overall Dimensions( mm )3300×1650×1800
-
Weight ( kg )1360
Panel Information
Features
Powered by a 50 HP EFI diesel engine, this crawler tractor delivers clean, efficient power for the toughest jobs. The full gear direct drive transmission ensures maximum torque transfer, while the HST dual-differential steering system provides effortless turning—even in tight orchard rows.
Equipped with double-row high-lug rubber tracks, it excels in paddy fields, dry land, and orchards without damaging soil or crops. With pressure-enhanced implements, it handles tilling, trenching, and ridging with precision and ease.

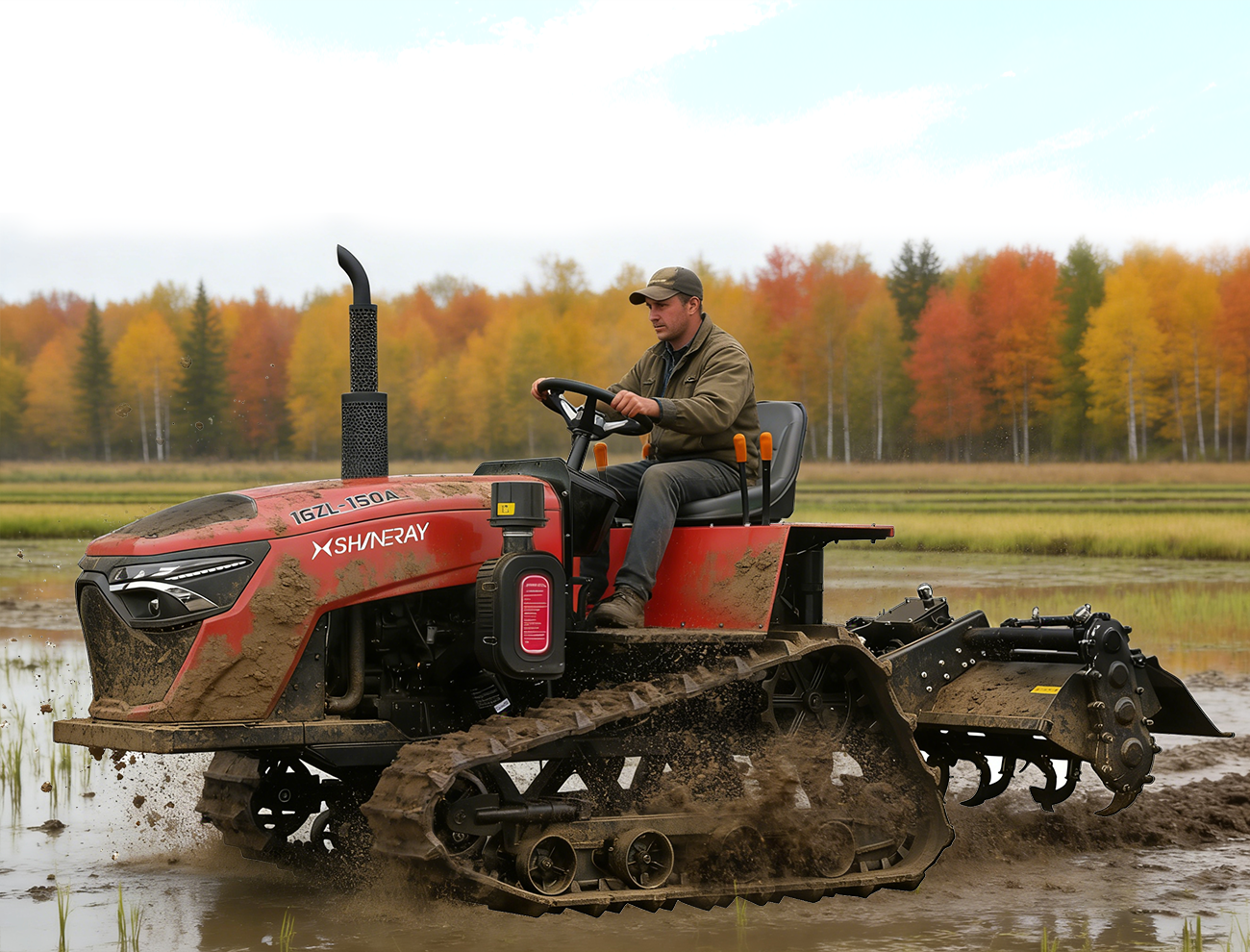

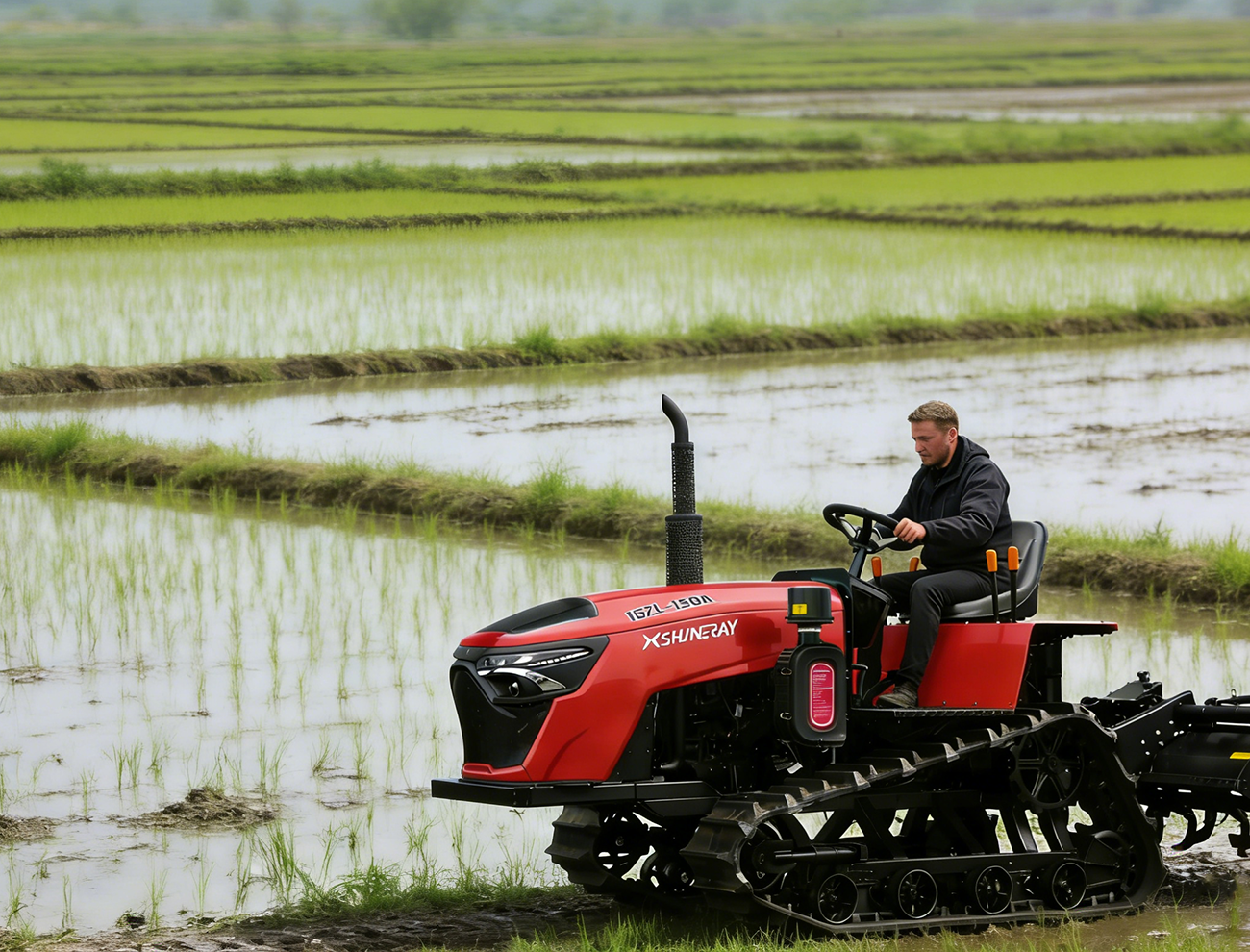

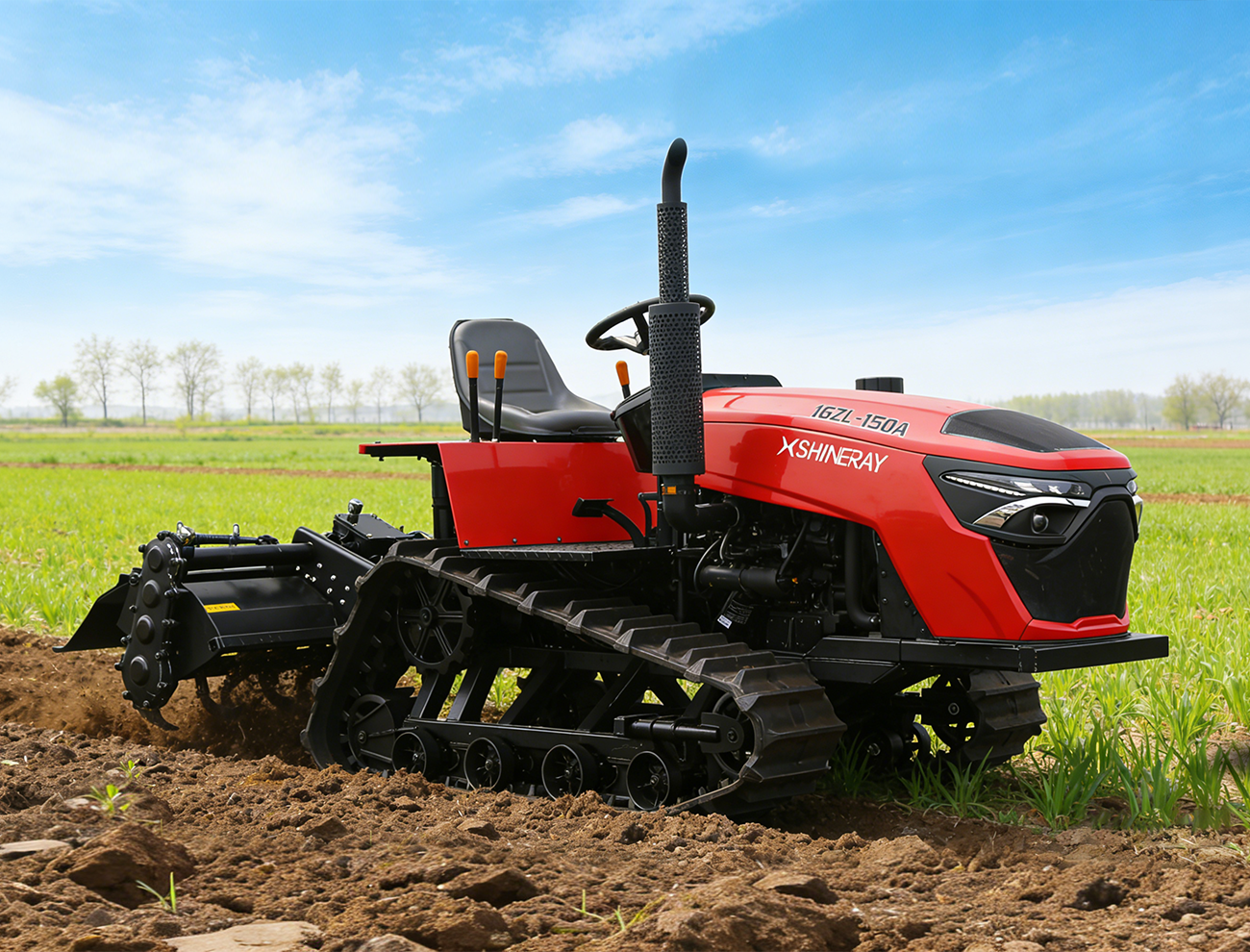

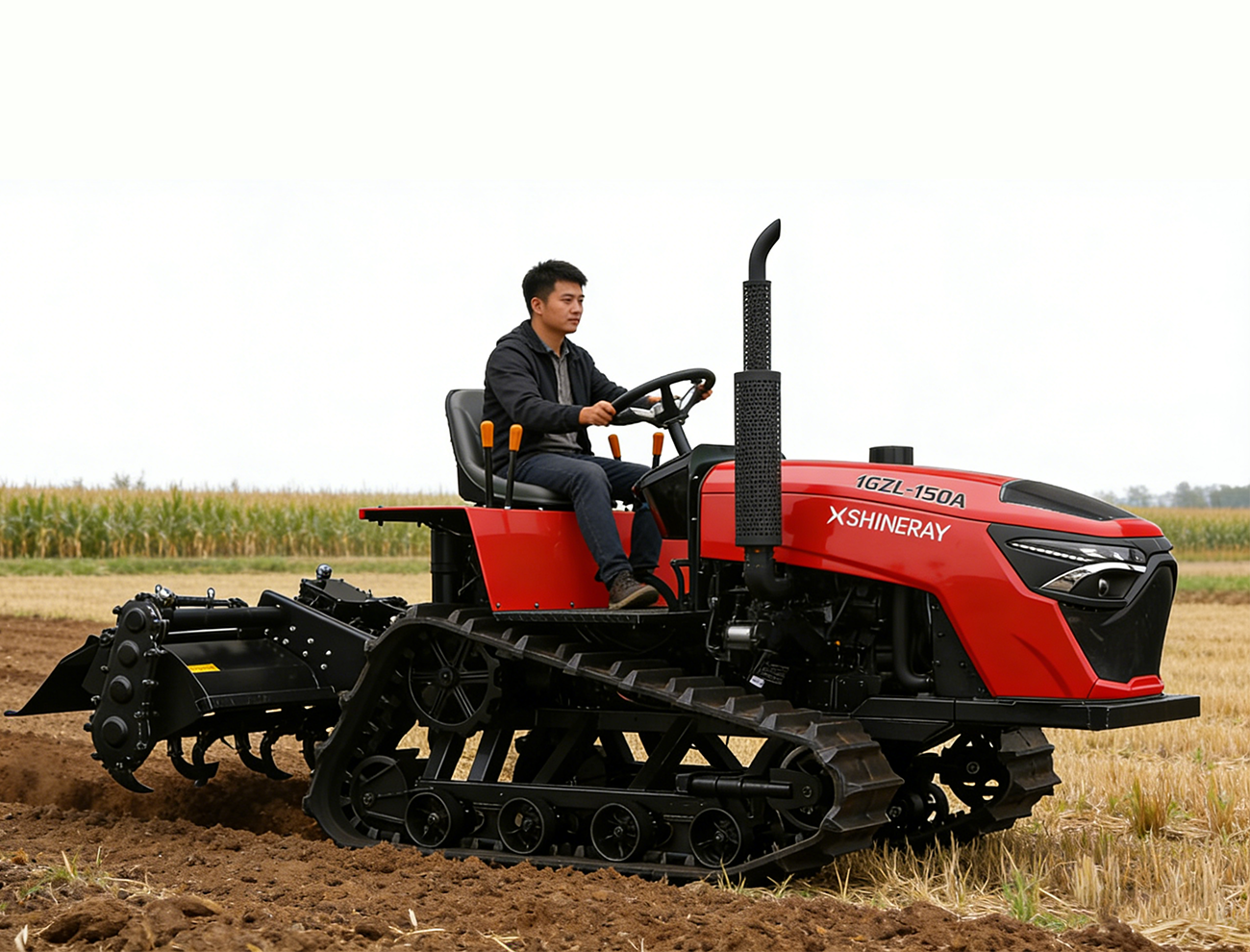

Usage Scenarios
Parameter Table
| Output（kW） | 36.8 |
| Rated Speed（r/min） | 2300 |
| MachineWeight（kg） | 1360 |
| Overall Dimensions(mm) | 3300×1650×1800 |
| Track Type | Double-Guide High-Lug Self-Cleaning Track |
| Tread Width（mm） | 950 |
| Track Specification（Pitch × Number × Width） | 90mm×45×350mm |
| Minimum Ground Clearance（mm） | 400 |
| Gears | 6+6 |
| Steering Method | Dual Power Flow Differential Steering |
| Starting System | Electric Start |
| Service Brake | Friction Disc Type |
| Parking Brake | Friction Disc Type |
| Implement Attachment Type | Universal Joint Direct Connection |
| Working Width （mm） | 1500 |
| Transmission Type | Full Gear Transmission |
| Total Number of Blades (on Rotor) | 30 |
| Rotary Blade Model | T205 |
| Working Depth（mm) | ≥120 |
