Medium Machinery

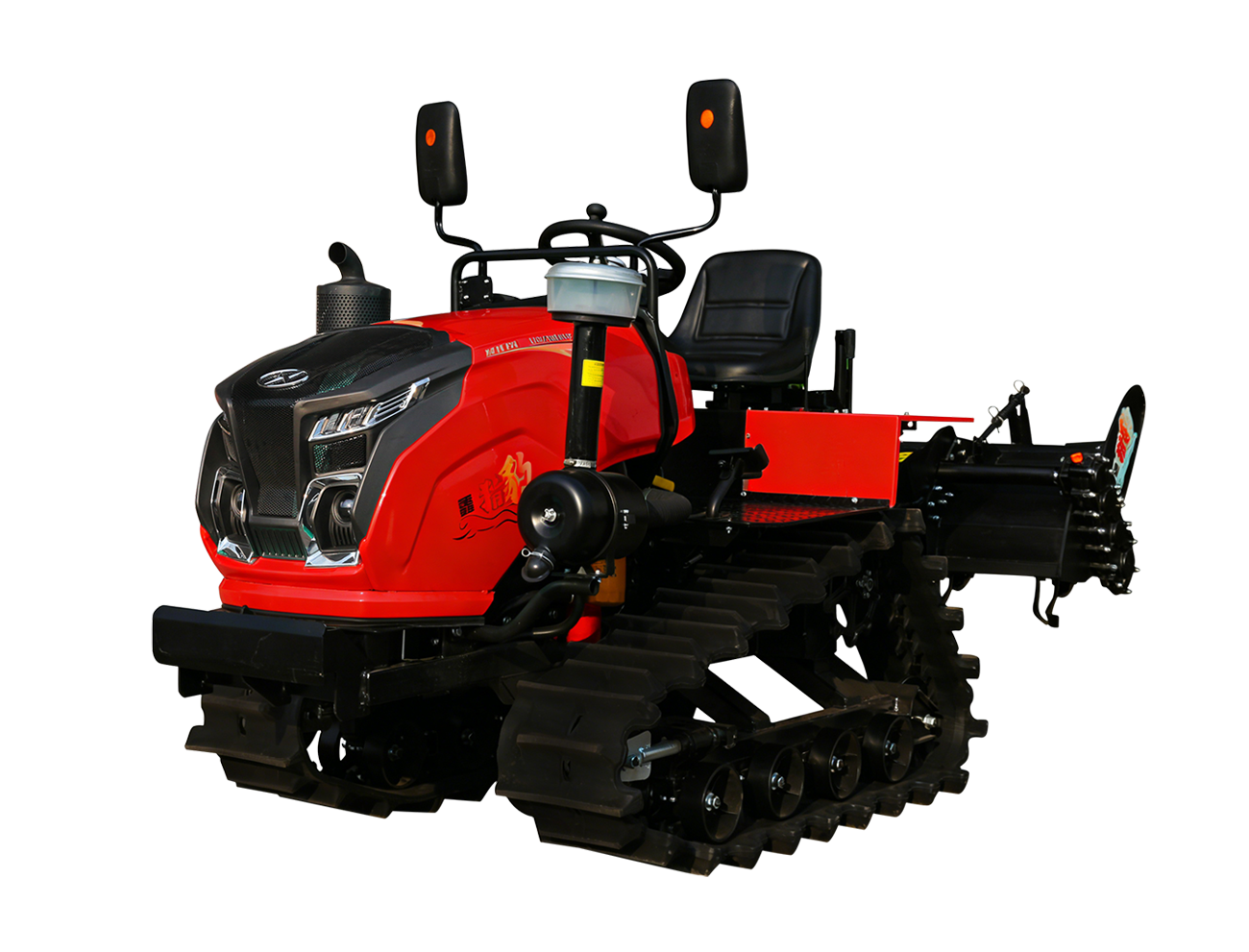

1GZL-130A(Crawler Rotary Tiller)
  • Output
    [ kw-(r/min)]
    22.1
  • Overall Dimensions
    ( mm )
    2640×1450×1400
  • Weight
    ( kg )
    950+100

Panel Information

Features

Powered by a reliable 30 HP diesel engine, this multi-functional crawler machine delivers exceptional power for a variety of field operations. The full gear direct drive transmission ensures maximum power transfer with minimal loss, while the HST hydraulic dual-differential steering system provides effortless and precise maneuvering, even in wet paddy fields.

Equipped with double-row high-lug rubber tracks, it offers superior traction and self-cleaning ability, preventing slippage in muddy conditions. The straddle-type chassis provides excellent stability and operator comfort. With pressure-enhanced implements, it handles tough soils with ease for tilling, trenching, and ridging—all in one versatile machine.

Usage Scenarios

Parameter Table

Output(kW) 22.1
Rated Speed(r/min) 2600

MachineWeight(kg)
950+100

Overall Dimensions(mm)
2640×1450×1400
Track Type Single-Guide High-Lug Self-Cleaning Track
Tread Width(mm) 850
Track Specification(Pitch × Number × Width) 84mm×44×330mm
Minimum Ground Clearance(mm) 350
Gears 6+6
Steering Method Dual Power Flow Differential Steering
Starting System Electric Start
Service Brake Dry Type/Shoe Type
Parking Brake Dry Type/Shoe Type
Implement Attachment Type Universal Joint Direct Connection
Working Width (mm) 1300
Transmission Type Full Gear Transmission
Total Number of Blades (on Rotor) 26/34
Rotary Blade Model 195/225
Working Depth(mm) ≥120
