Medium Machinery

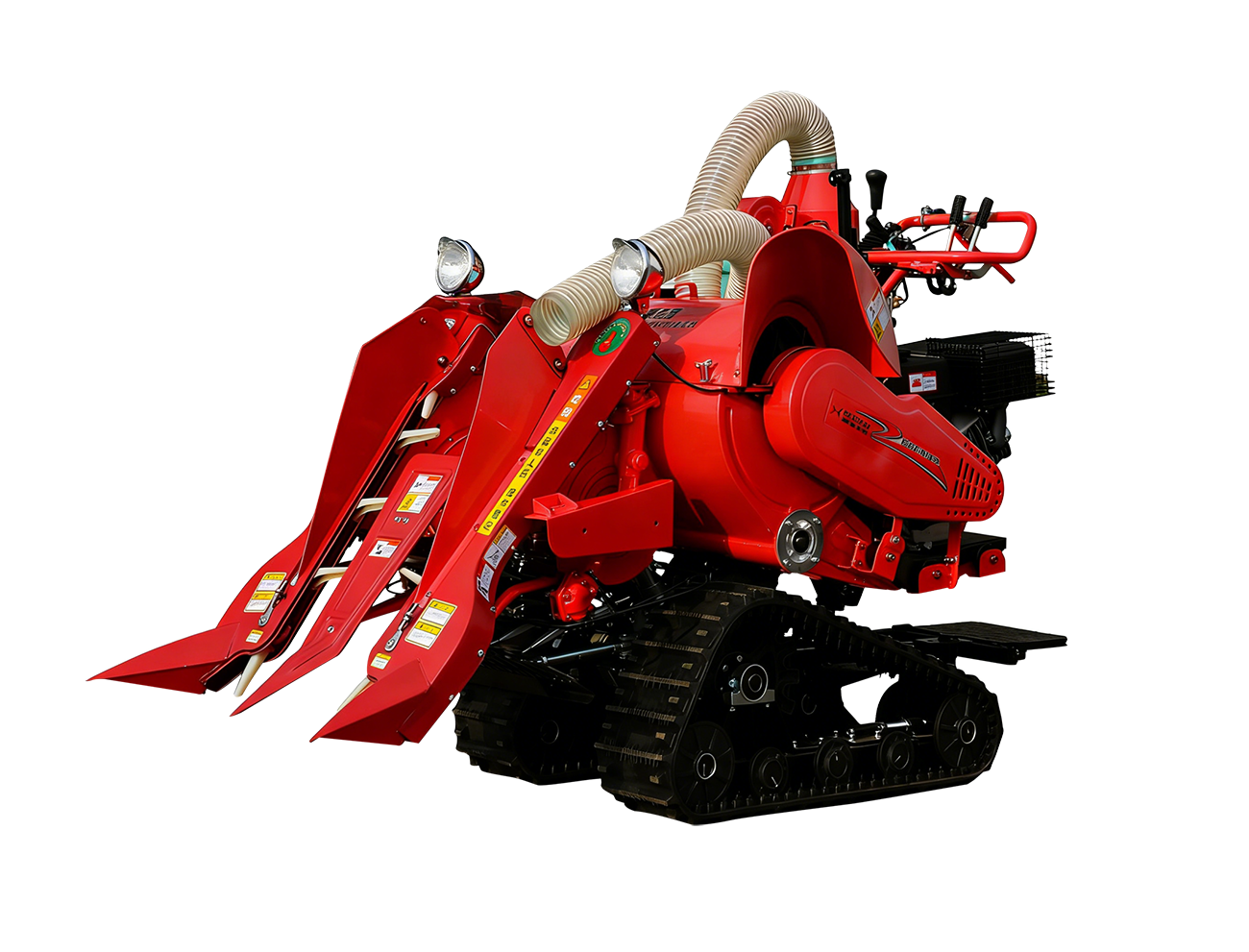

4LZ-0.6L(Mini Harvester)
-
Output[ kw-（r/min）]6.5
-
Overall Dimensions( mm )2460×1000×1570
-
Weight ( kg )320
Panel Information
Features
Gasoline-Powered, Powerful & Fuel-Efficient: Delivers robust performance while keeping fuel costs low.
Lightweight Design, Easy Transport: Compact construction allows for effortless transportation between fields.
Hydraulic Control, Agile Steering: Provides smooth and responsive maneuverability.
Full Track System, Superior Traction: Ensures excellent passability in wet fields and soft soil.
Ride-On Option, Comfortable Operation: Reduces operator fatigue for longer working hours.

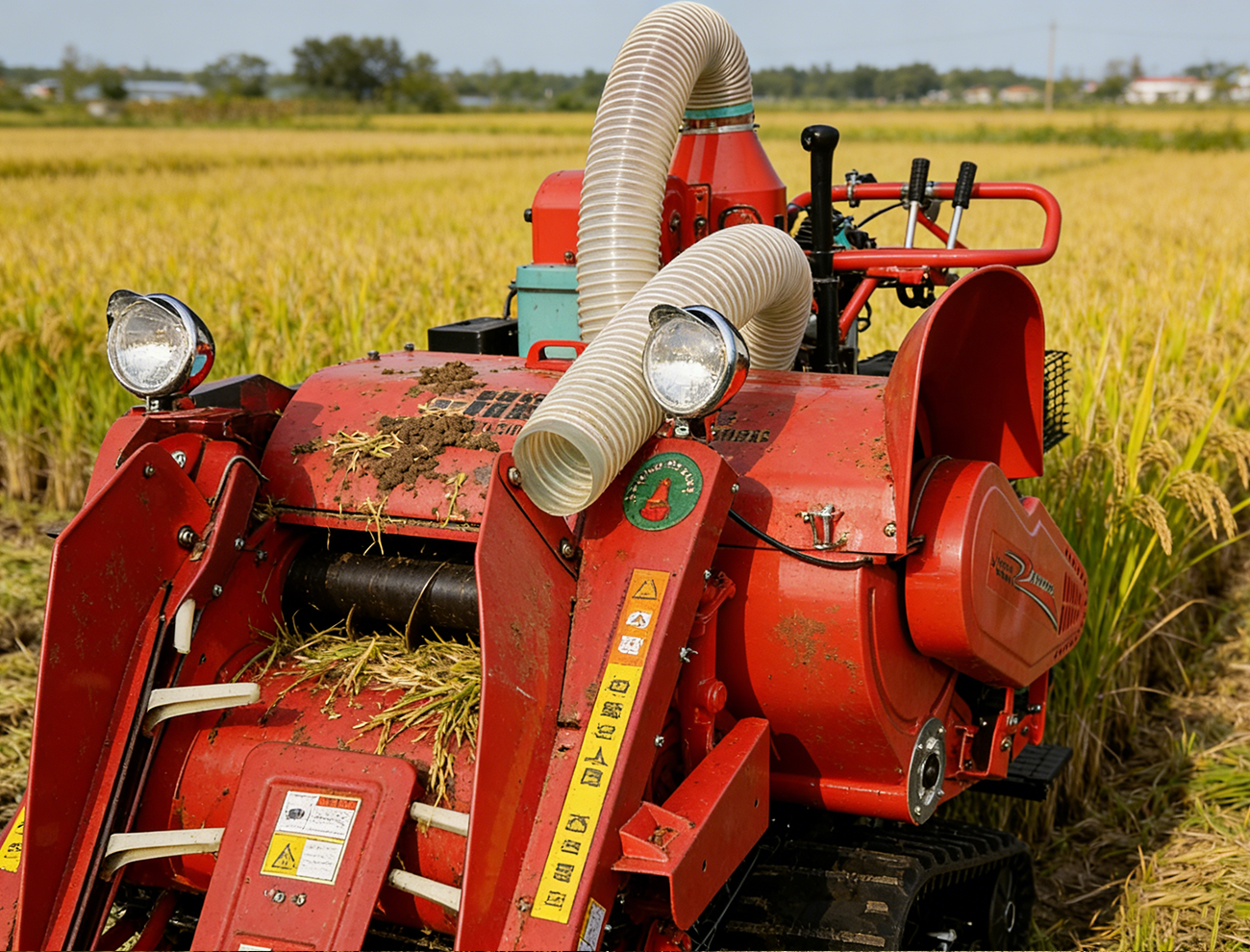

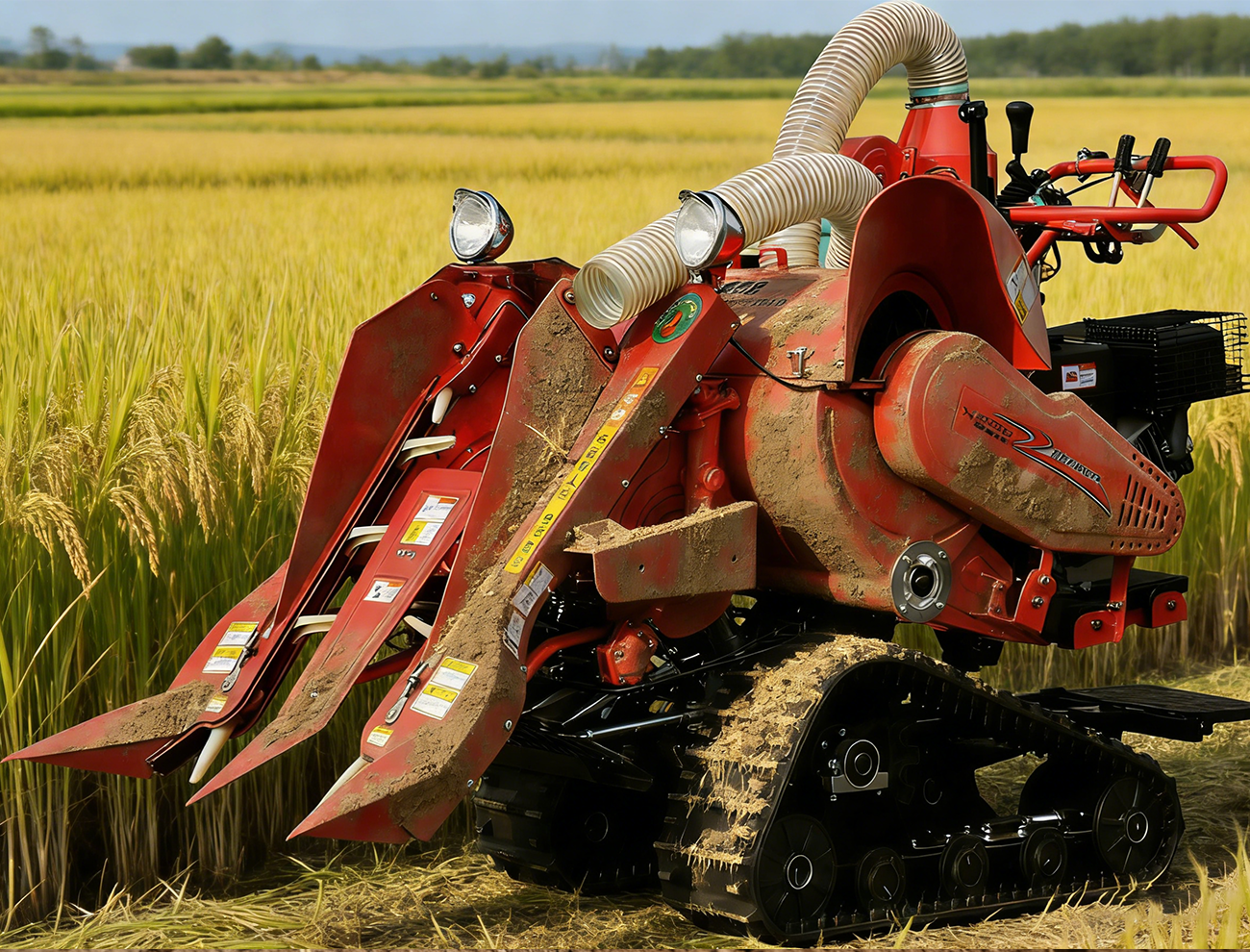

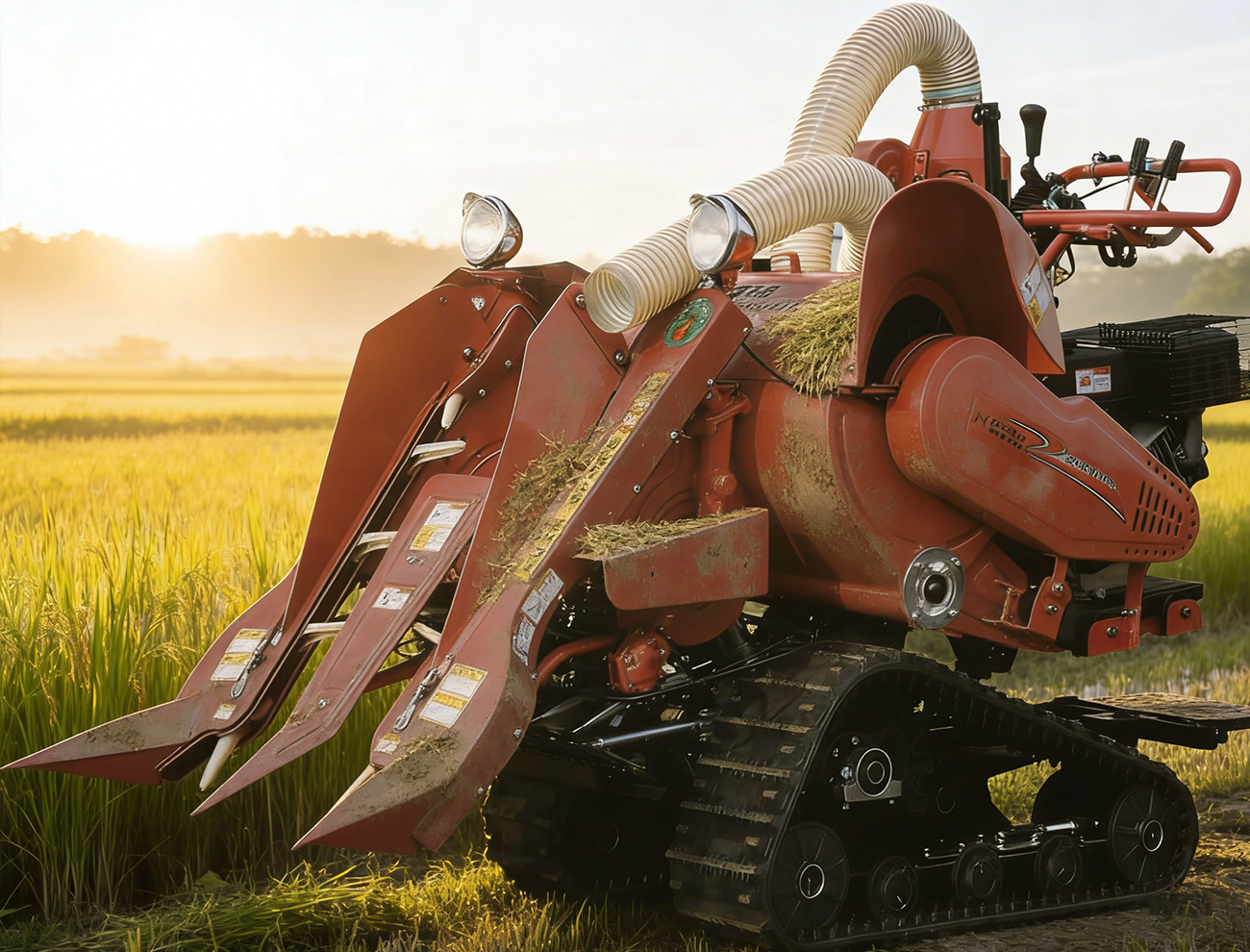

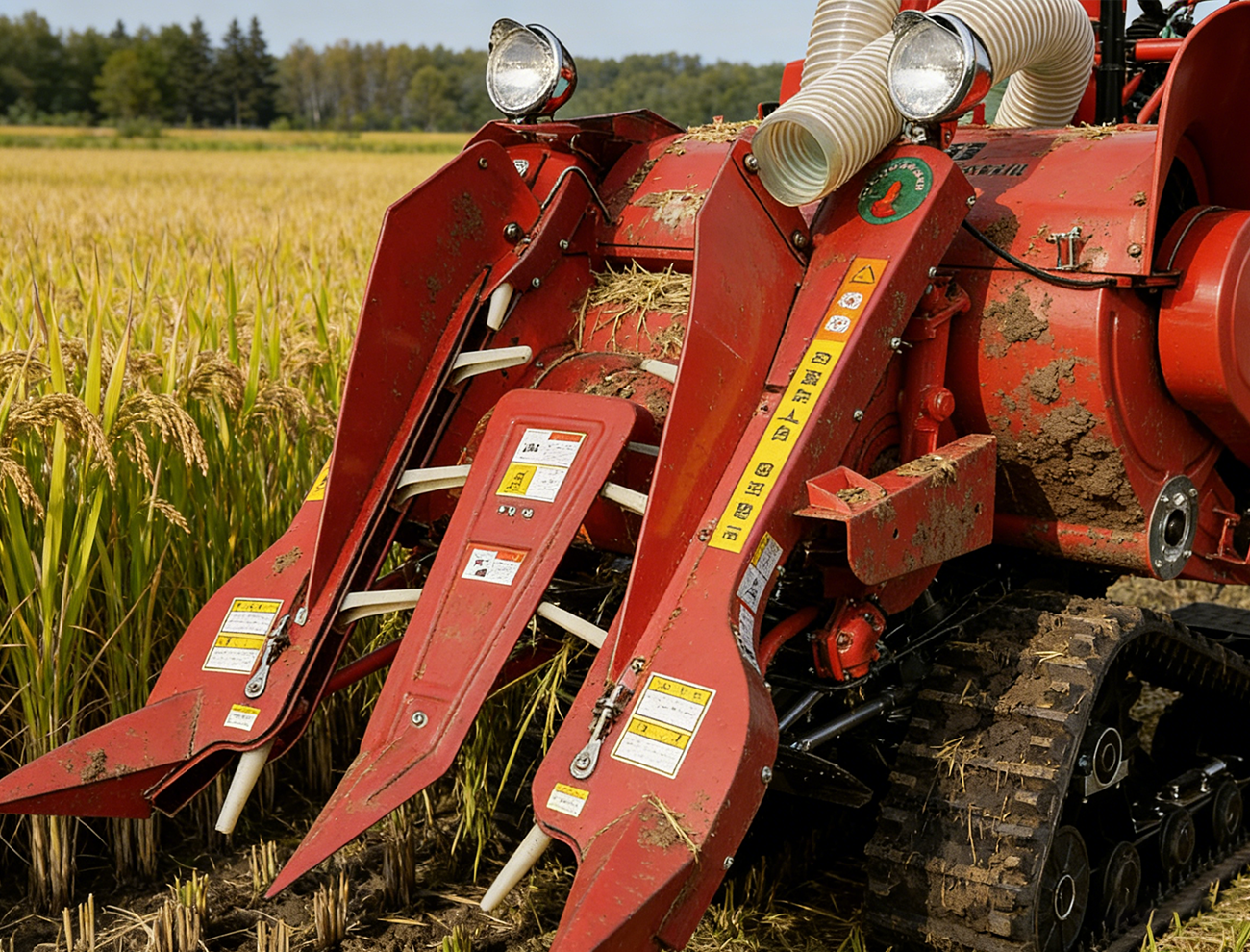

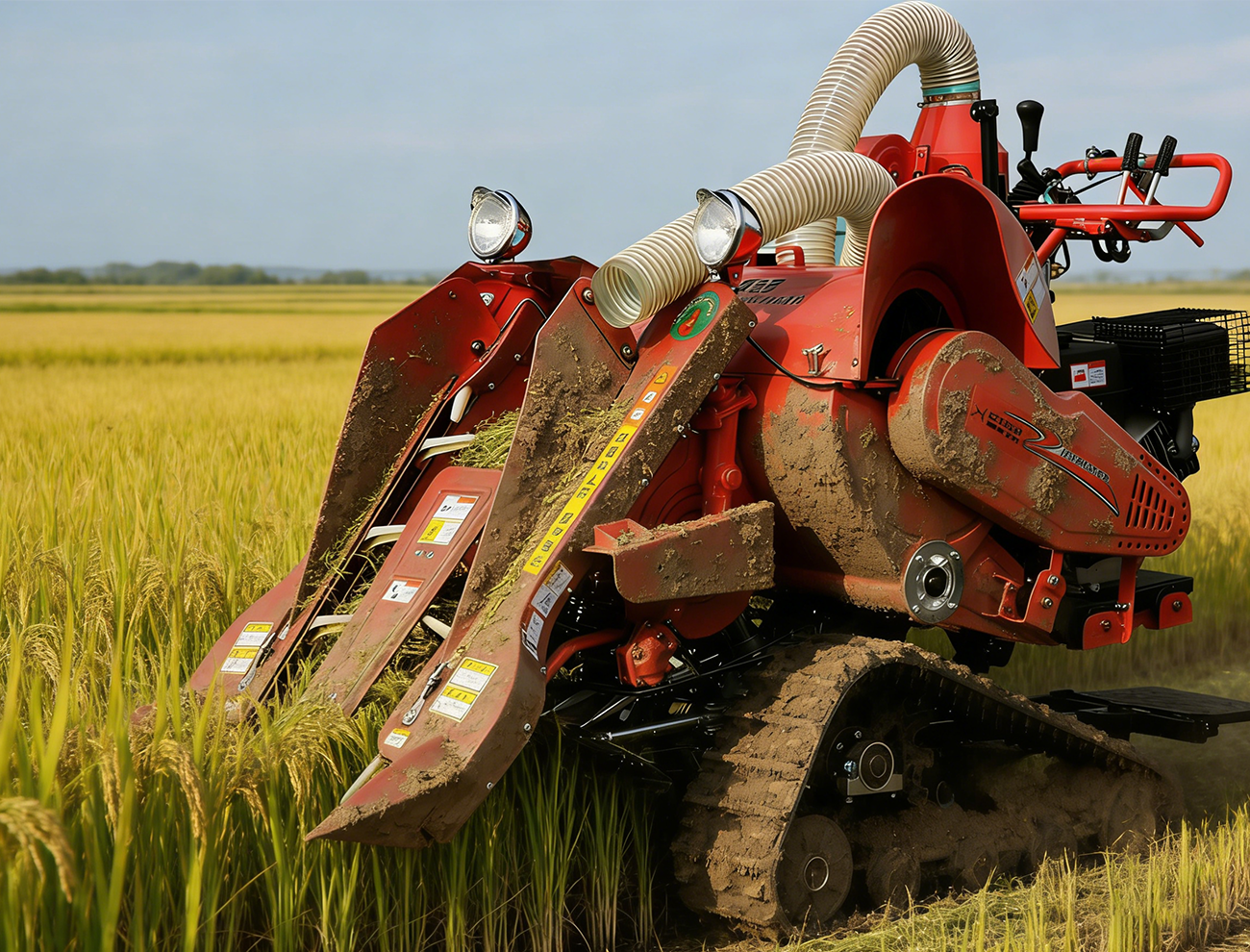

Usage Scenarios
Parameter Table
| Structure Type | Crawler-Type, Full-Feed |
| Overall Dimensions（mm） | 2460×1000×1570 |
| MachineWeight（kg） | 320 |
| Header Working Width（mm） | 900 |
| Minimum Ground Clearance（mm） | 180 |
| Rated Feed Rate（kg/S） | 0.6 |
| Gears |
5 Positions (Slow, Neutral, Fast, Neutral, Reverse) |
| Working Speed（m/s） | 0.5-0.9 |
| Output per Hour （h㎡/h） | ≥0.06 |
| Fuel Consumption （kg/hm2） | ≤30 |
| Engine Model |
180F/P Gasoline Engine |
| Engine Structure Type |
Single-Cylinder, 4-Stroke, OHV, Horizontal Shaft |
| Rated Powe（kW） | 6.5 |
| Rated Speed（r/min） | 3600 |
| Cooling System | Air-Cooled |
| Starting System | Electric Start |
| Header Lifting Method | Manual Hydraulic Control |
| Number of Cutter Assemblies | 2 |
| Auger Type | Screw Type |
| Reel Type | Finger Type |
| Intermediate Conveyor Type | / |
| Threshing Cylinder Type | Axial Flow TypeRasp Bar |
| Threshing Drum Dimensions（mm） | 360×640 |
| Grain Conveyor Type | Scraper Type |
| Grain Collection Method | Manual Bagging |
| Track Specification（Pitch × Number × Width） | 72mm×28×250mm |
| Tread Width（mm） | 520 |
| Transmission Type | Step-Type, with Reverse |
| Travel Clutch Type | Tension Pulley Type |
| Brake Type | Drum Type |
| Working Clutch Type | Tension Pulley Type |
| Steering Method | Dog Clutch Steering |
