SR192F
MODE SR192F TYPE Single-cylinder 4-stroke, forced air-cooled, vertical, direct injection CYLINDER BORE ×STROKE(mm) 92×75 DISPLACEMENT(ml) 498 RATED POWER[kw-（r/min）] 8.2/3600 MAXIMUM NET TORQUE 24.3/2800 FUEL CAPACITY(L) 5.5 ROTATE DIRECTION Counterclockwise (facing the output shaft) STARTING SYSTEM Kick start/Electric start L×W×H(mm) 417×441×494 NET WEIGHT(kg) 50
SR188F
MODE SR188F TYPE Single-cylinder 4-stroke, forced air-cooled, vertical, direct injection CYLINDER BORE ×STROKE(mm) 88×72 DISPLACEMENT(ml) 438 RATED POWER[kw-（r/min）] 6.8/3600 MAXIMUM NET TORQUE 20.2/2800 FUEL CAPACITY(L) 5.5 ROTATE DIRECTION Counterclockwise (facing the output shaft) STARTING SYSTEM Kick start/Electric start L×W×H(mm) 417×441×494 NET WEIGHT(kg) 48
SR186FA
MODE SR186FA TYPE Single-cylinder 4-stroke, forced air-cooled, vertical, direct injection CYLINDER BORE ×STROKE(mm) 86×72 DISPLACEMENT(ml) 418 RATED POWER[kw-（r/min）] 6.3/3600 MAXIMUM NET TORQUE 18.7/2800 FUEL CAPACITY(L) 5.5 ROTATE DIRECTION Counterclockwise (facing the output shaft) STARTING SYSTEM Kick start/Electric start L×W×H(mm) 417×441×494 NET WEIGHT(kg) 48
SR178F
MODE SR178F TYPE Single-cylinder 4-stroke, forced air-cooled, vertical, direct injection CYLINDER BORE ×STROKE(mm) 78×62 DISPLACEMENT(ml) 296 RATED POWER[kw-（r/min）] 4.0/3600 MAXIMUM NET TORQUE 11.8/2800 FUEL CAPACITY(L) 3.5 ROTATE DIRECTION Counterclockwise (facing the output shaft) STARTING SYSTEM Kick start/Electric start L×W×H(mm) 383×421×450 NET WEIGHT(kg) 33

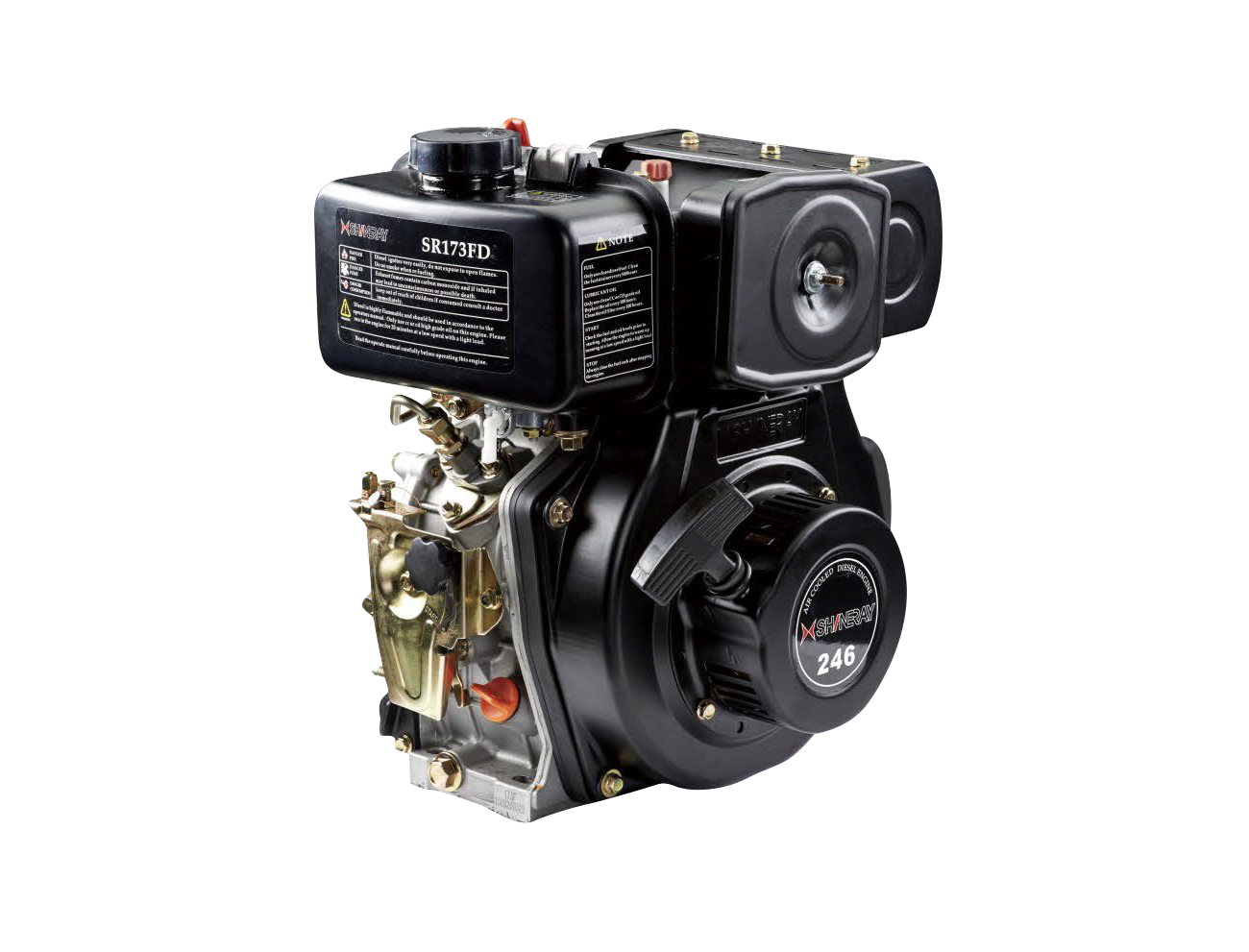

SR173F
TYPE Single-cylinder 4-stroke, forced air-cooled, vertical, direct injection CYLINDER BORE ×STROKE(mm) 73×59 DISPLACEMENT(ml) 246 RATED POWER[kw-（r/min）] 3.6/3600 MAXIMUM NET TORQUE 10.6/2800 FUEL CAPACITY(L) 2.5 ROTATE DIRECTION Counterclockwise (facing the output shaft) STARTING SYSTEM Kick start/Electric start L×W×H(mm) 332×376×415 NET WEIGHT(kg) 25
