Diesel power

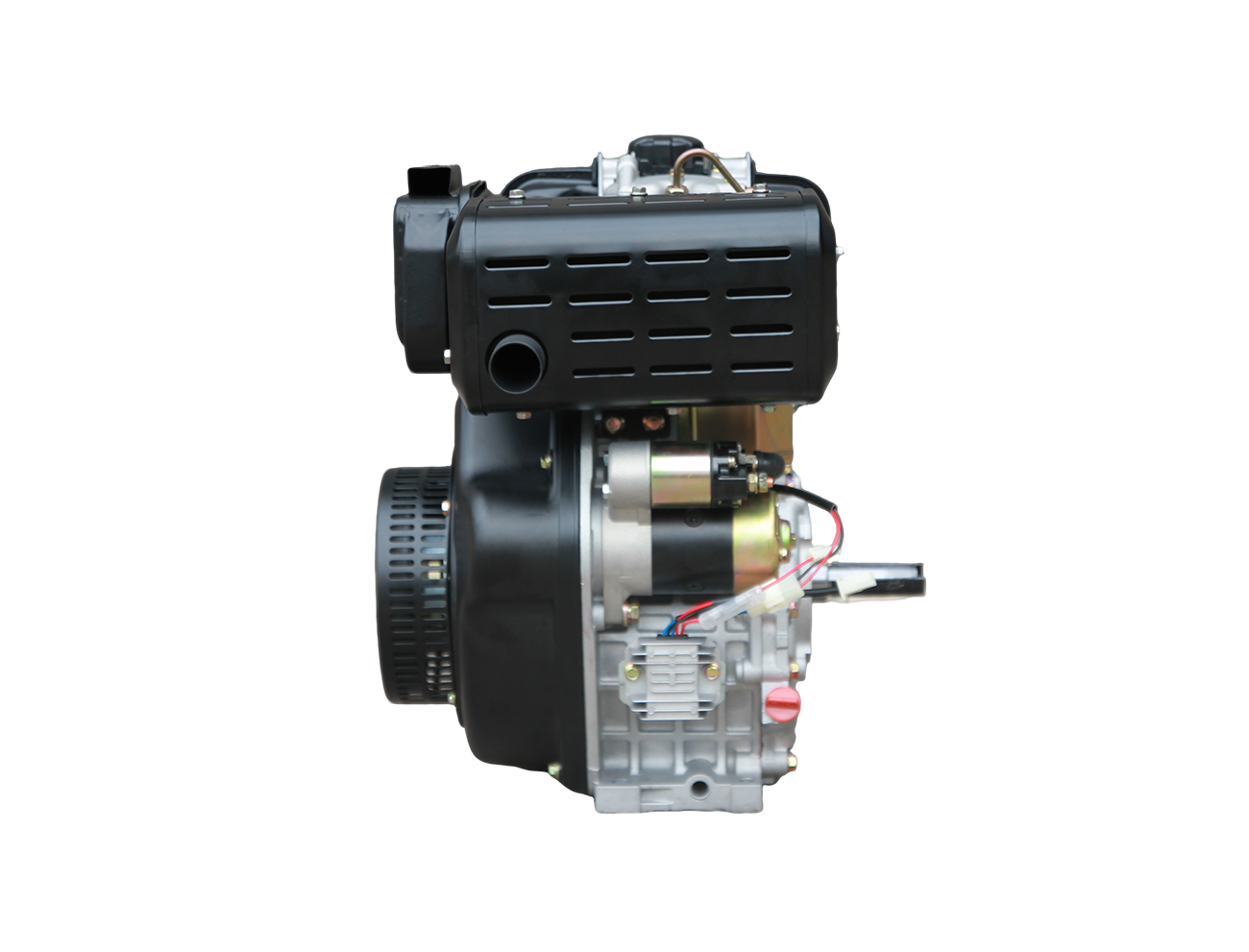

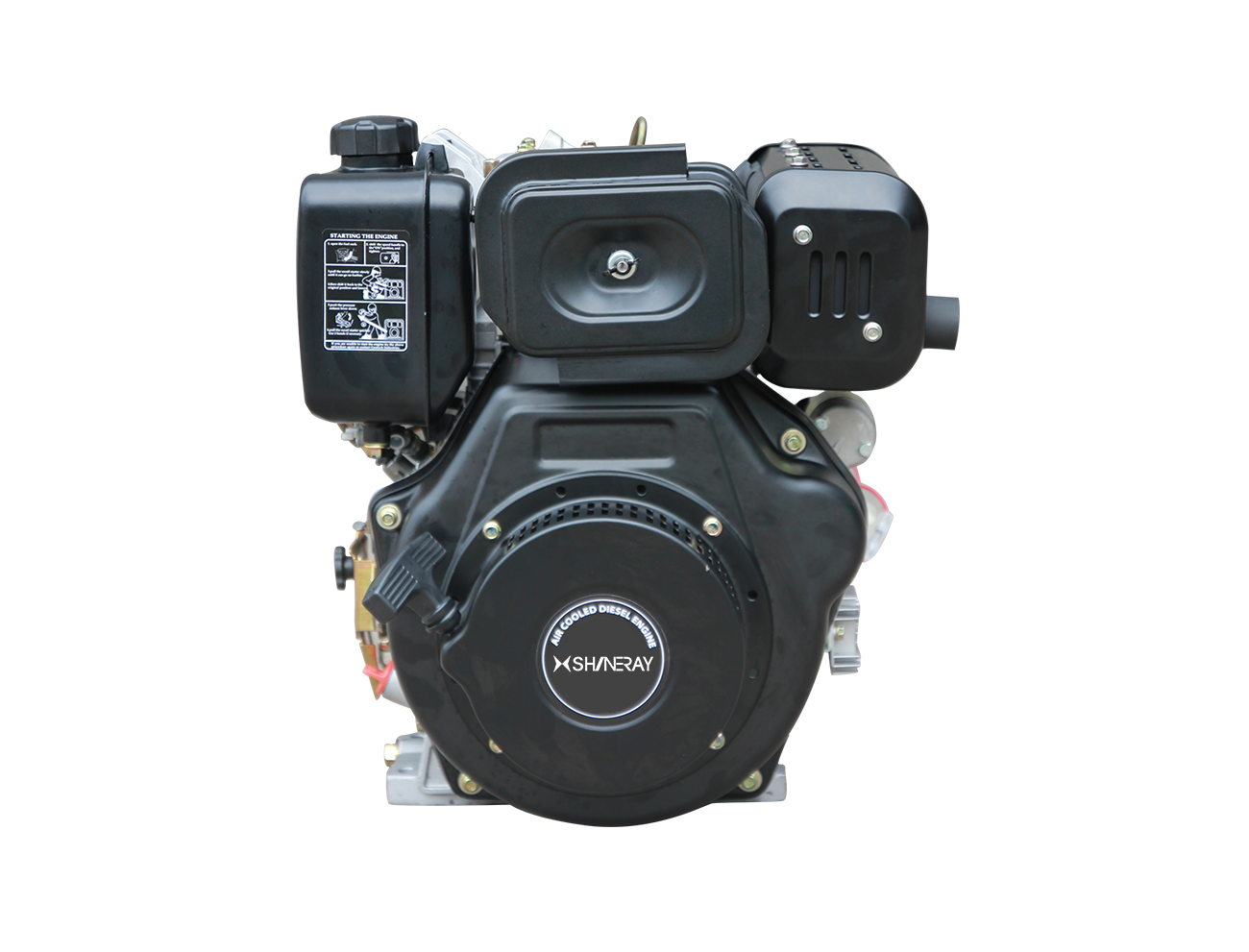

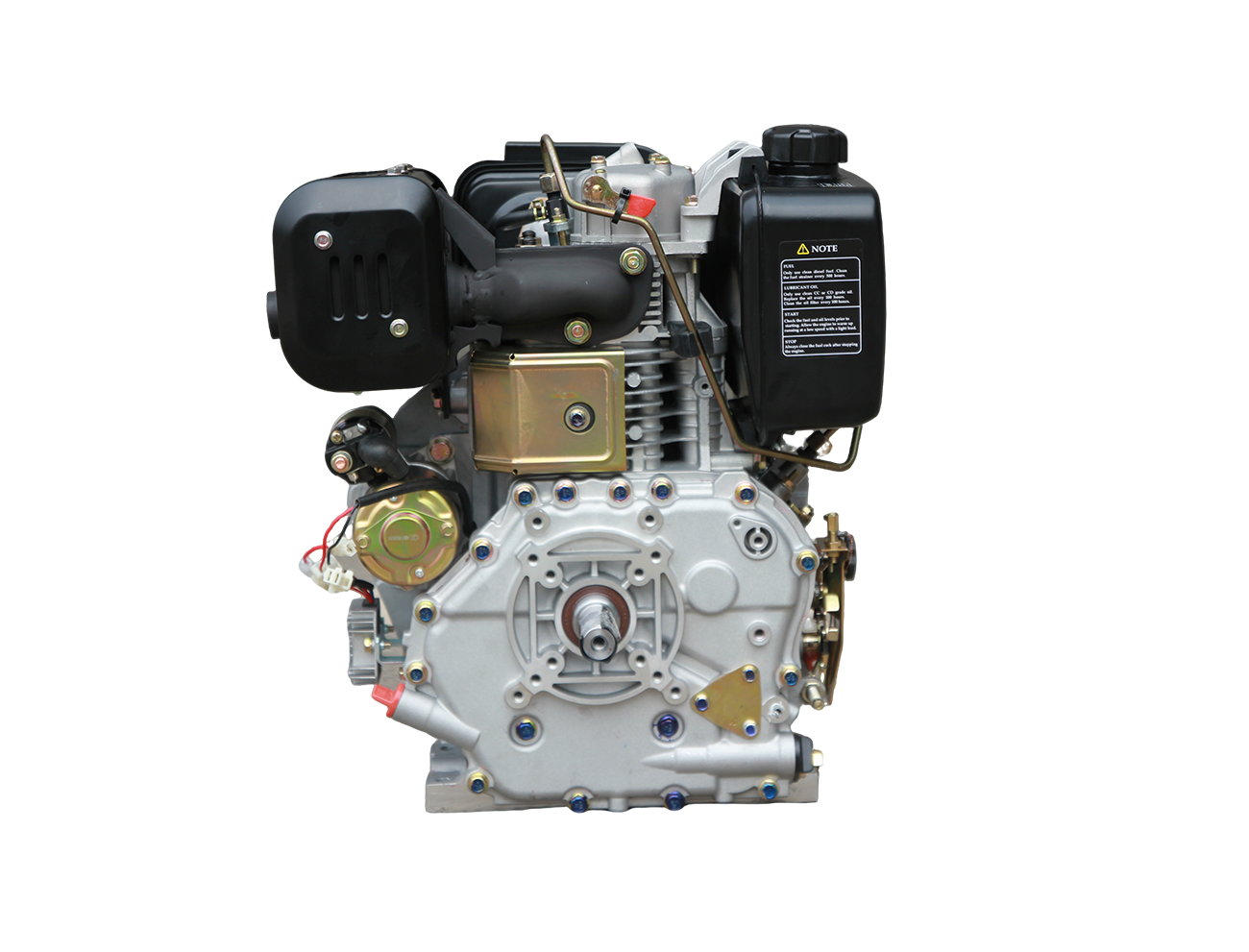

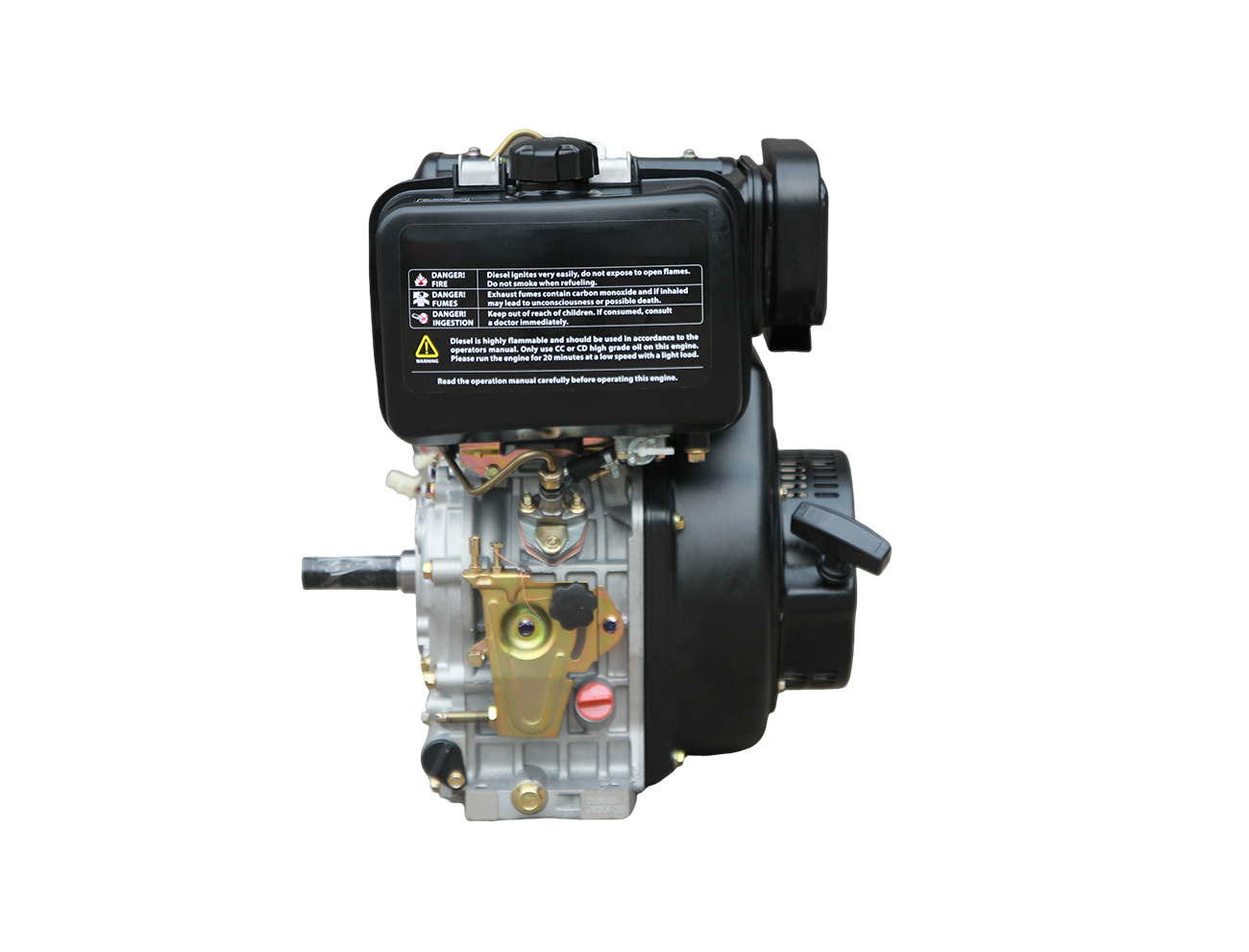

SR188F
-
Output[ kw-（r/min）]6.8/3600
-
Overall Dimensions( mm )417×441×494
-
Weight ( kg )48
Panel Information
Features
Metal Cam & Forged Crankshaft: Ensures prolonged service life and durability.
Dual-Stage Air Filter: Enhances air filtration efficiency for optimal engine performance.
Large-Capacity Muffler: Delivers superior noise reduction for quieter operation.
Euro 5 Compliant: Meets stringent European environmental standards.

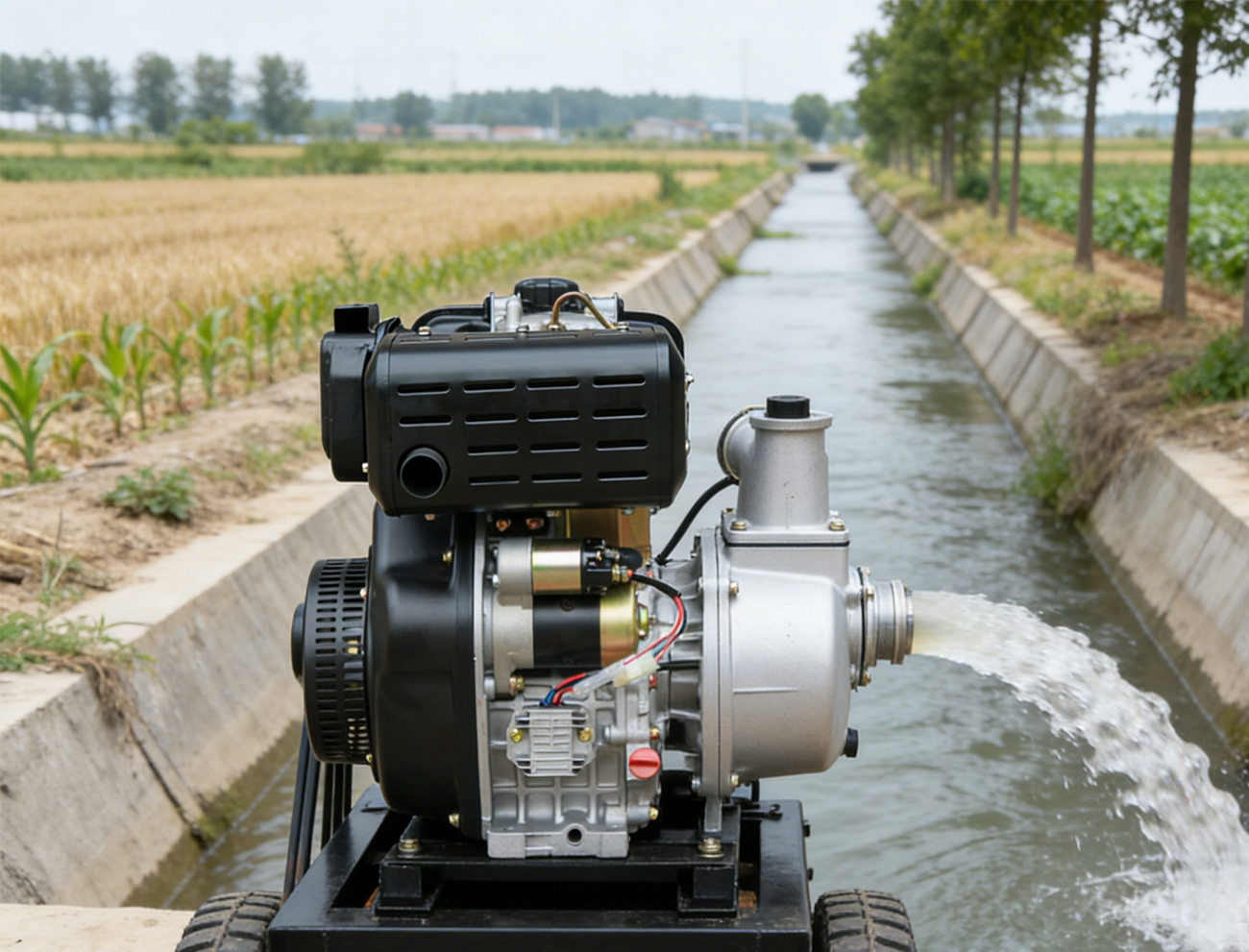

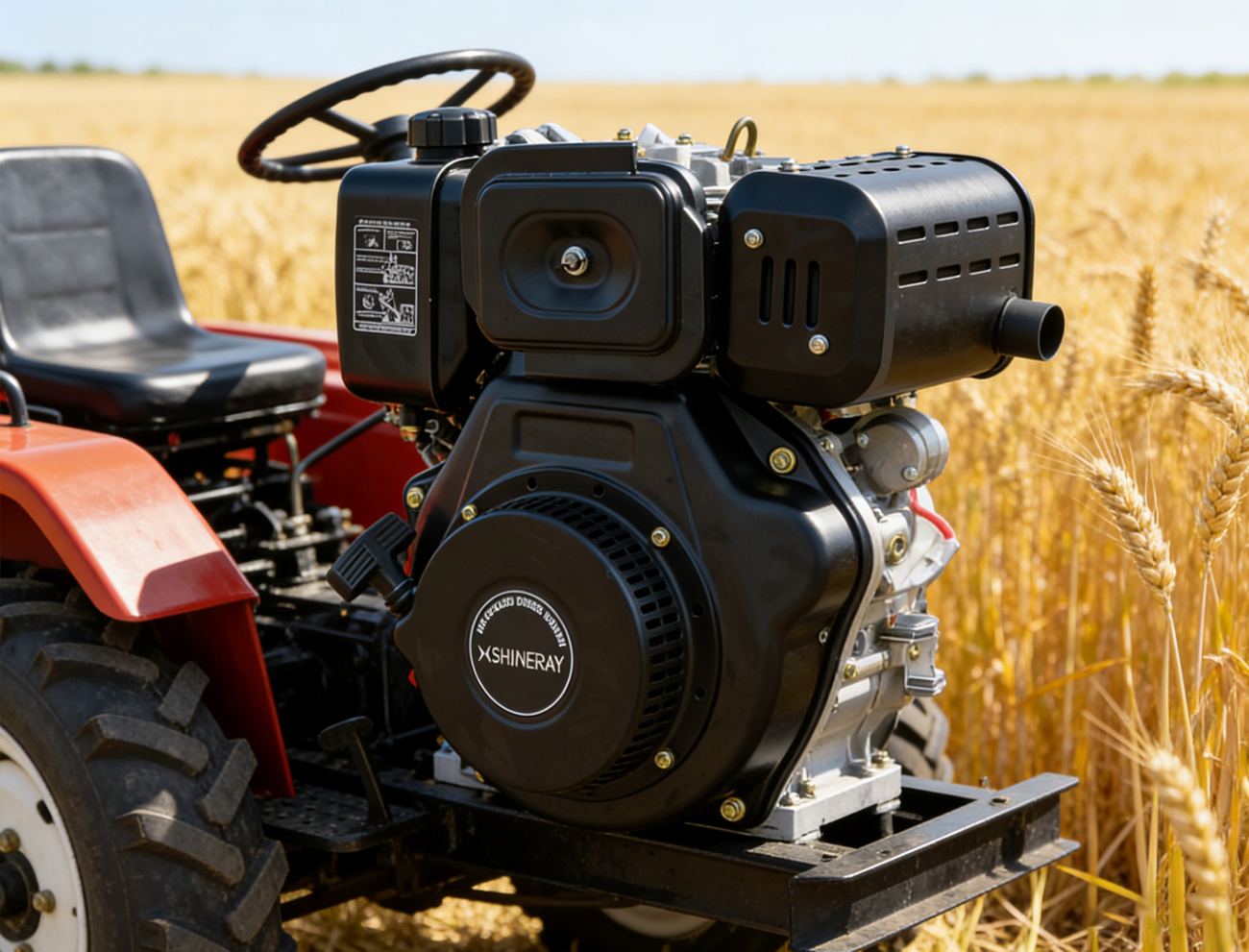

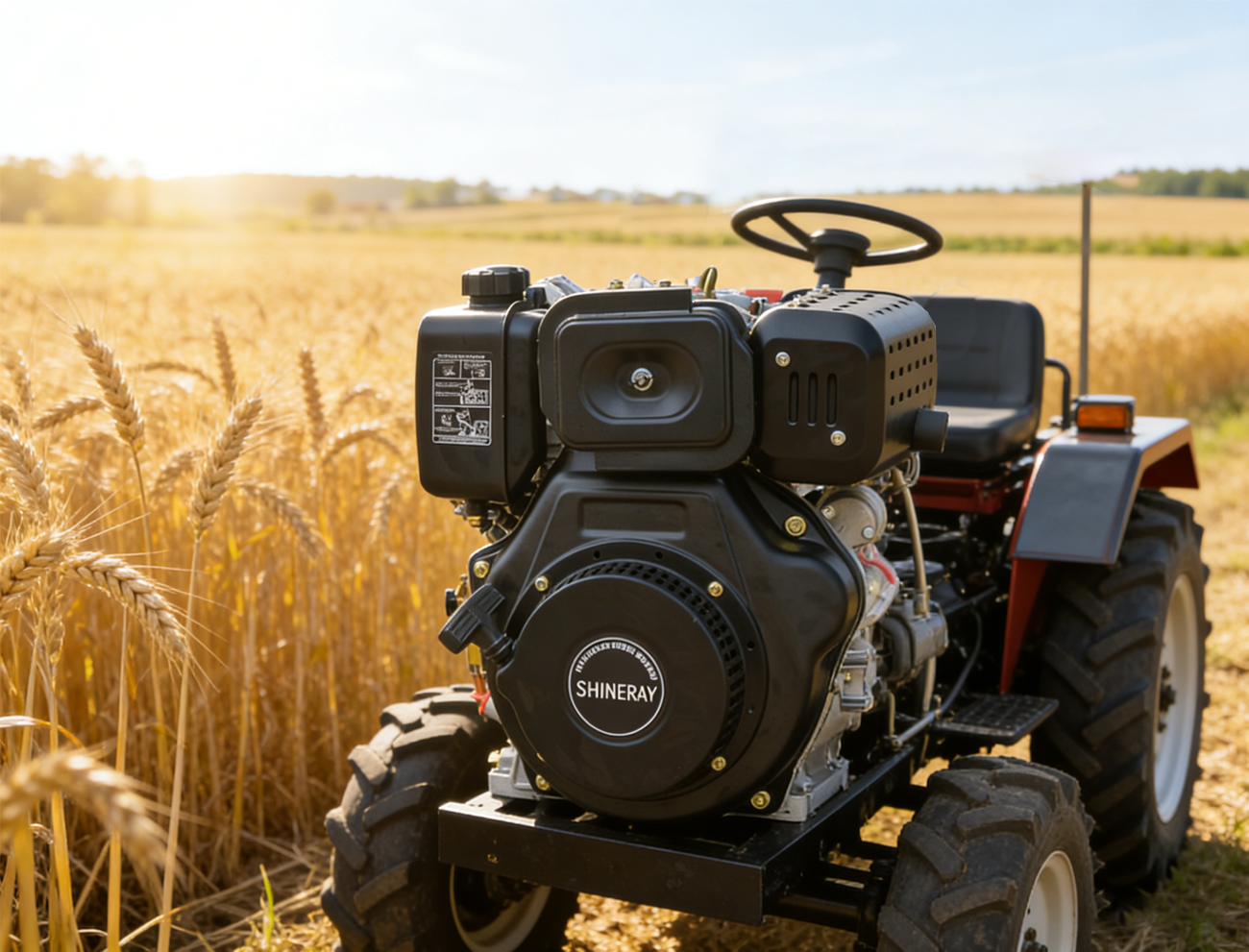

Usage Scenarios
Parameter Table
| MODE | SR188F |
| TYPE | Single-cylinder 4-stroke, forced air-cooled, vertical, direct injection |
| CYLINDER BORE ×STROKE(mm) | 88×72 |
| DISPLACEMENT(ml) | 438 |
| RATED POWER[kw-（r/min）] | 6.8/3600 |
| MAXIMUM NET TORQUE | 20.2/2800 |
| FUEL CAPACITY(L) | 5.5 |
| ROTATE DIRECTION | Counterclockwise (facing the output shaft) |
| STARTING SYSTEM | Kick start/Electric start |
| L×W×H(mm) | 417×441×494 |
| NET WEIGHT(kg) | 48 |
