Diesel power

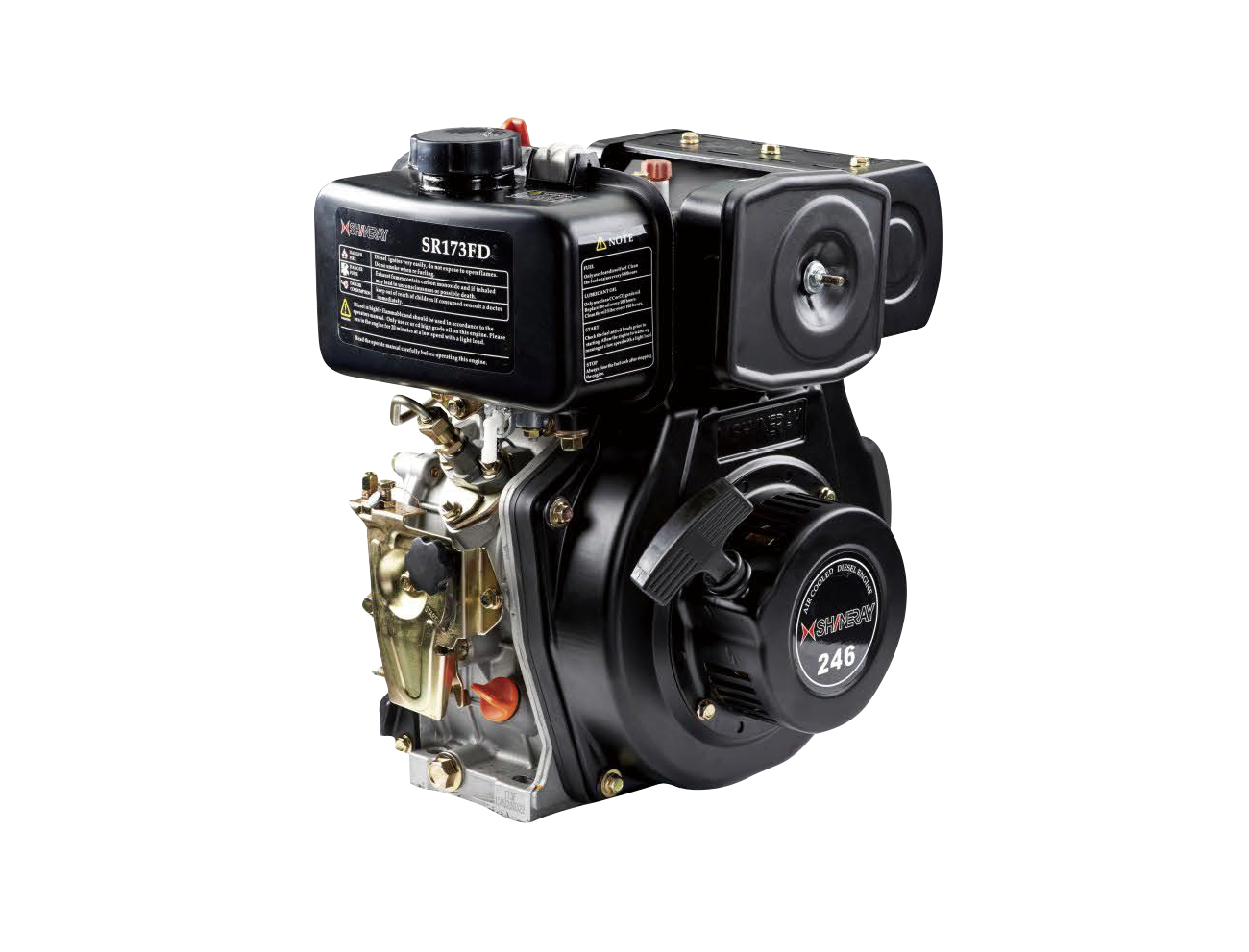

SR173F
-
Output[ kw-（r/min）]3.6/3600
-
Overall Dimensions( mm )332×376×415
-
Weight ( kg )25
Panel Information
Features
Metal Cam & Forged Crankshaft: Ensures prolonged service life and durability.
Dual-Stage Air Filter: Enhances air filtration efficiency for optimal engine performance.
Large-Capacity Muffler: Delivers superior noise reduction for quieter operation.
Euro 5 Compliant: Meets stringent European environmental standards.

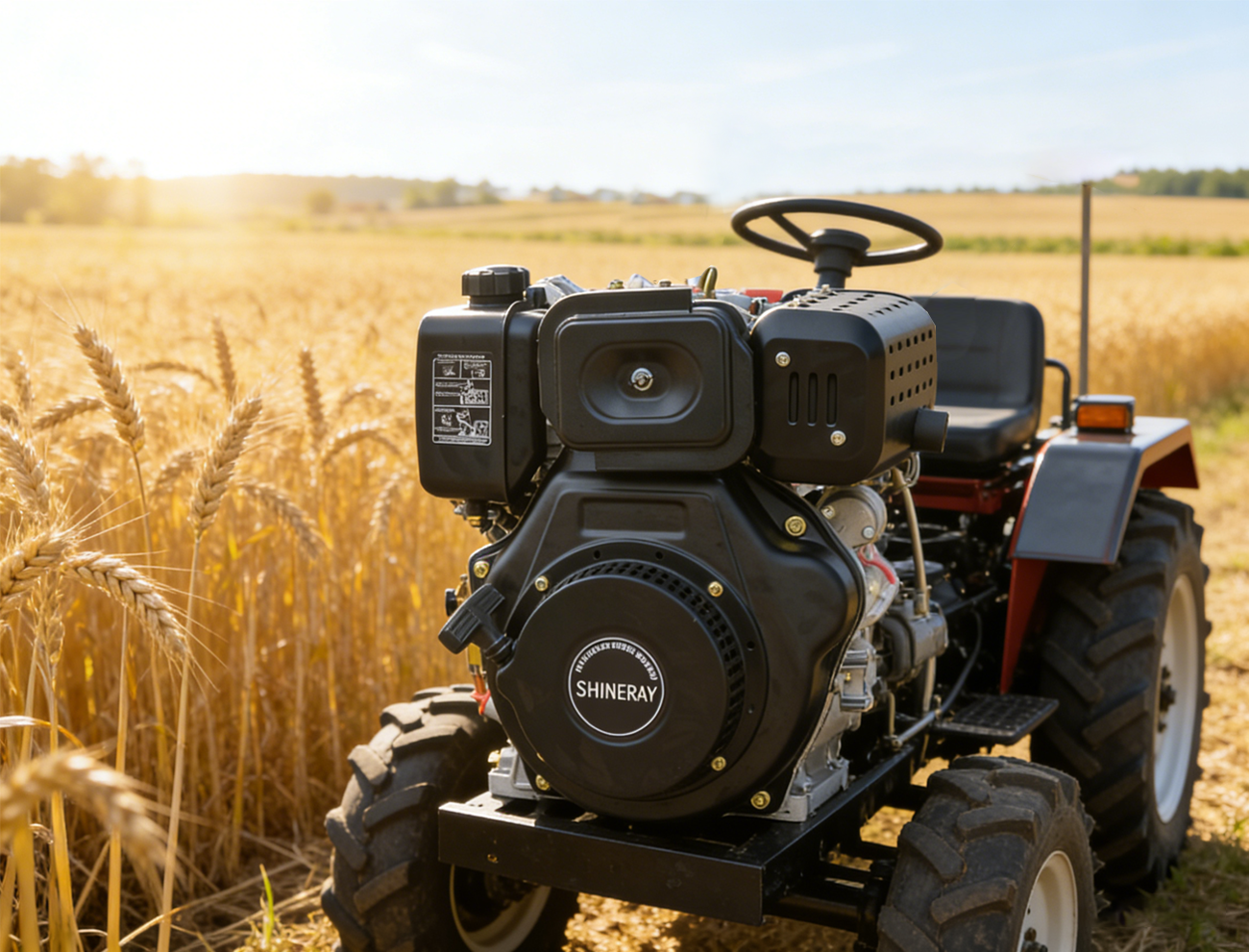

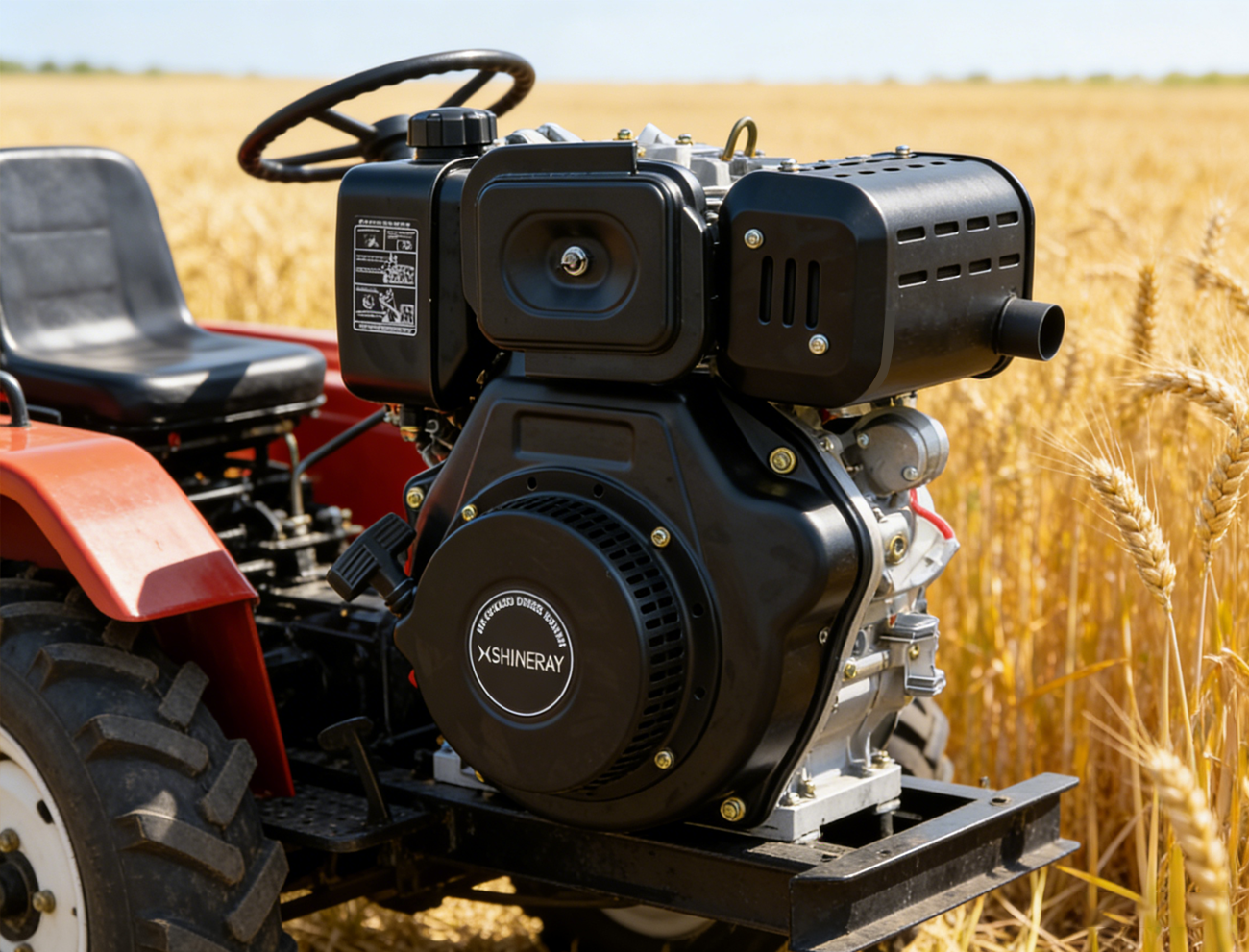

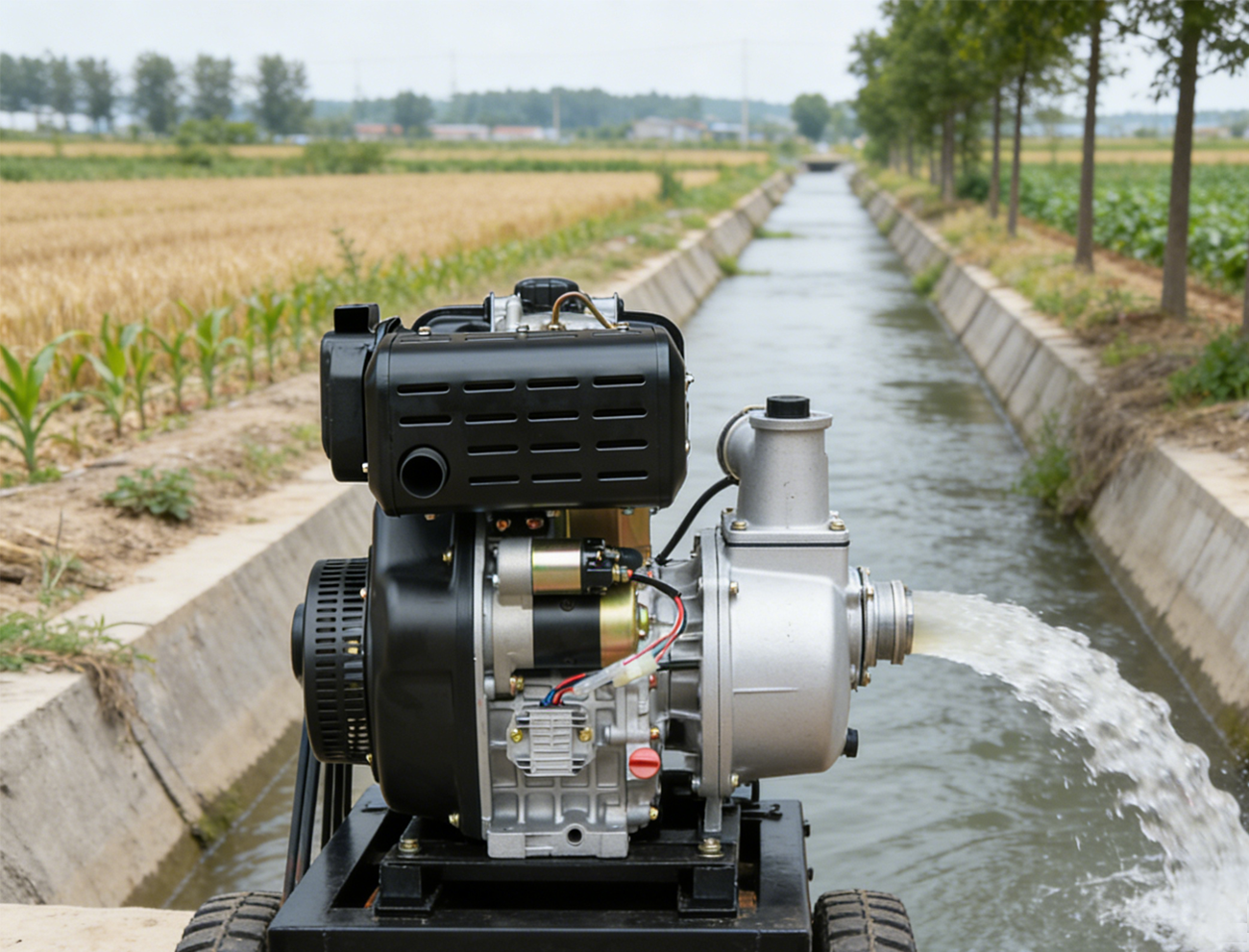

Usage Scenarios
Parameter Table
| TYPE | Single-cylinder 4-stroke, forced air-cooled, vertical, direct injection |
| CYLINDER BORE ×STROKE(mm) | 73×59 |
| DISPLACEMENT(ml) | 246 |
| RATED POWER[kw-（r/min）] | 3.6/3600 |
| MAXIMUM NET TORQUE | 10.6/2800 |
| FUEL CAPACITY(L) | 2.5 |
| ROTATE DIRECTION | Counterclockwise (facing the output shaft) |
| STARTING SYSTEM | Kick start/Electric start |
| L×W×H(mm) | 332×376×415 |
| NET WEIGHT(kg) | 25 |
