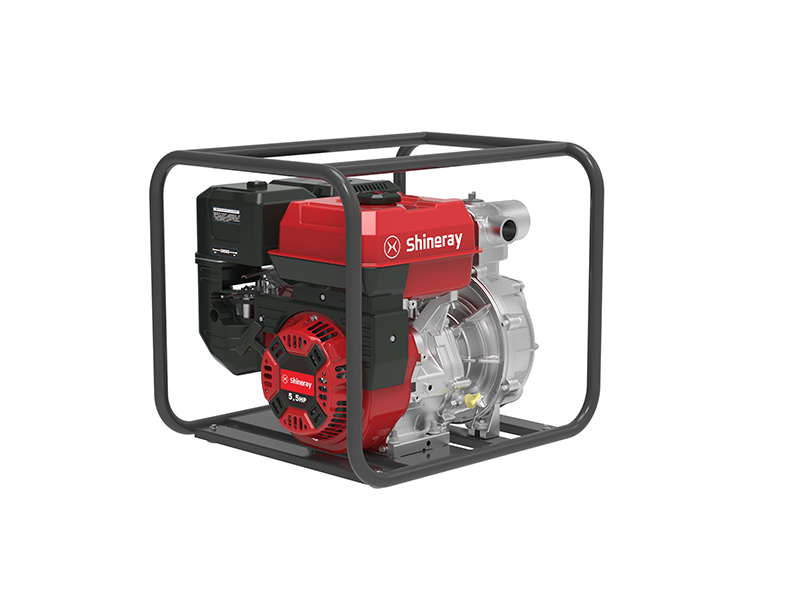

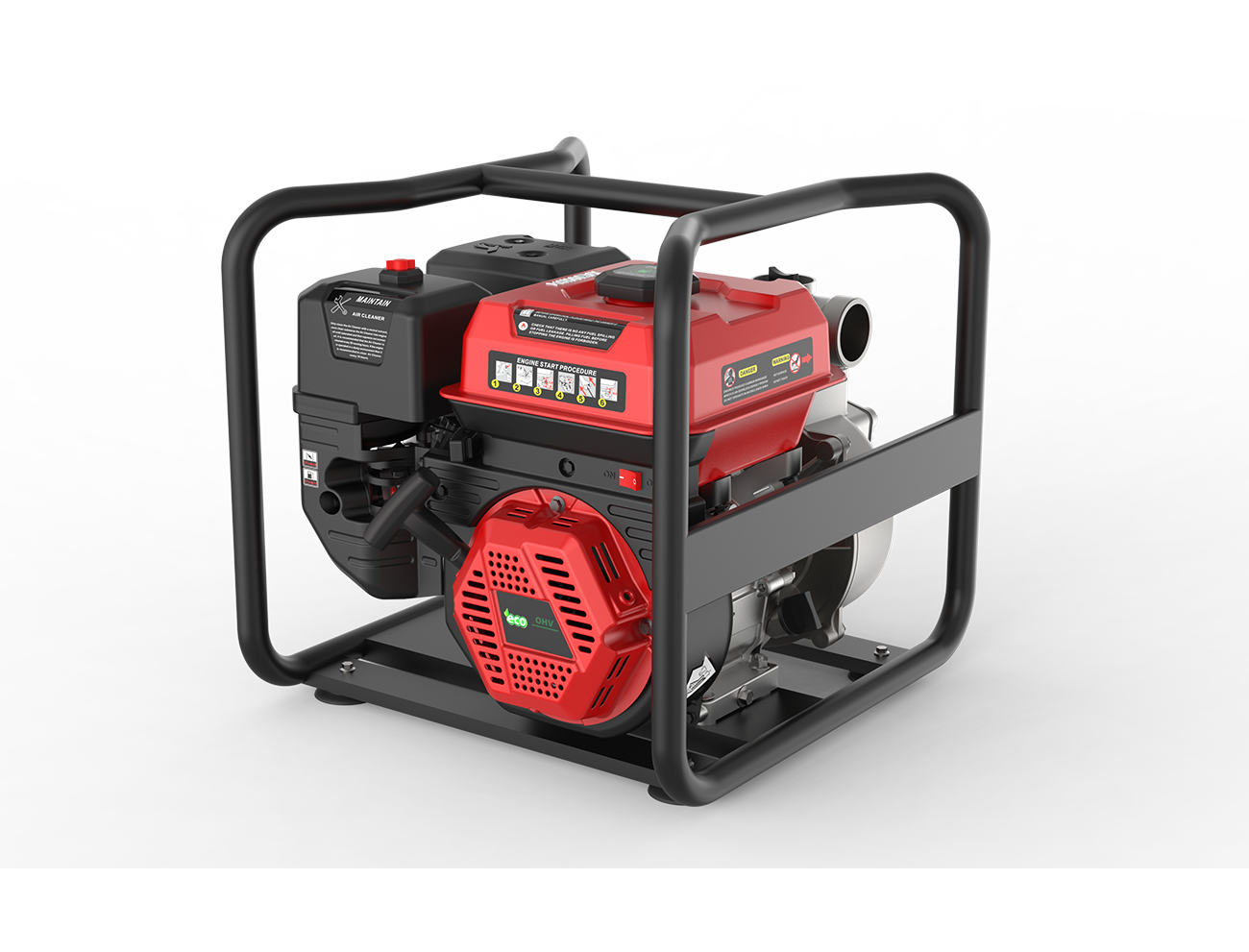

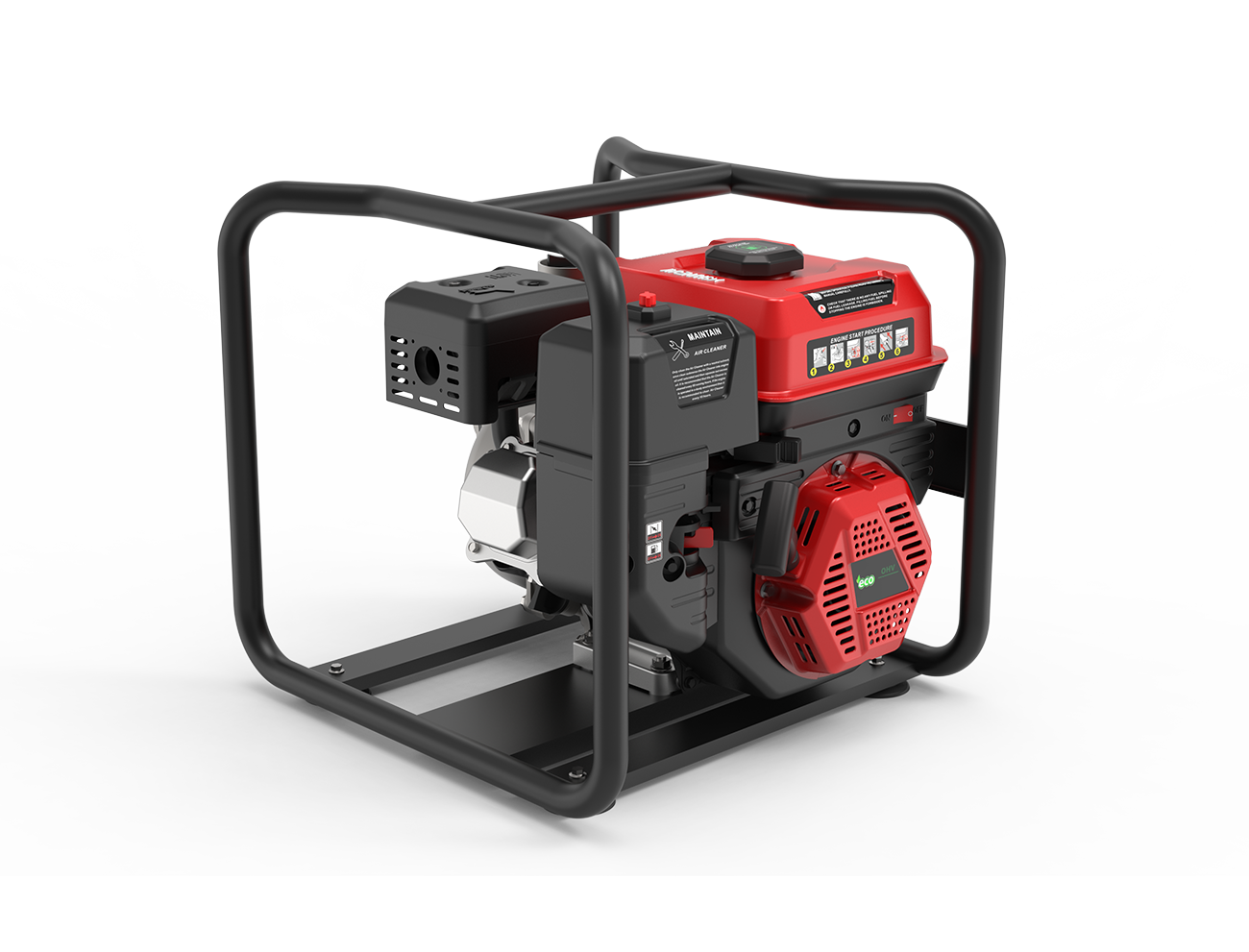

Water Pump
SRWP20
-
Output[ kw-(r/min)]4.3/3600
-
Overall Dimensions( mm )475*445*460
-
Weight ( kg )26

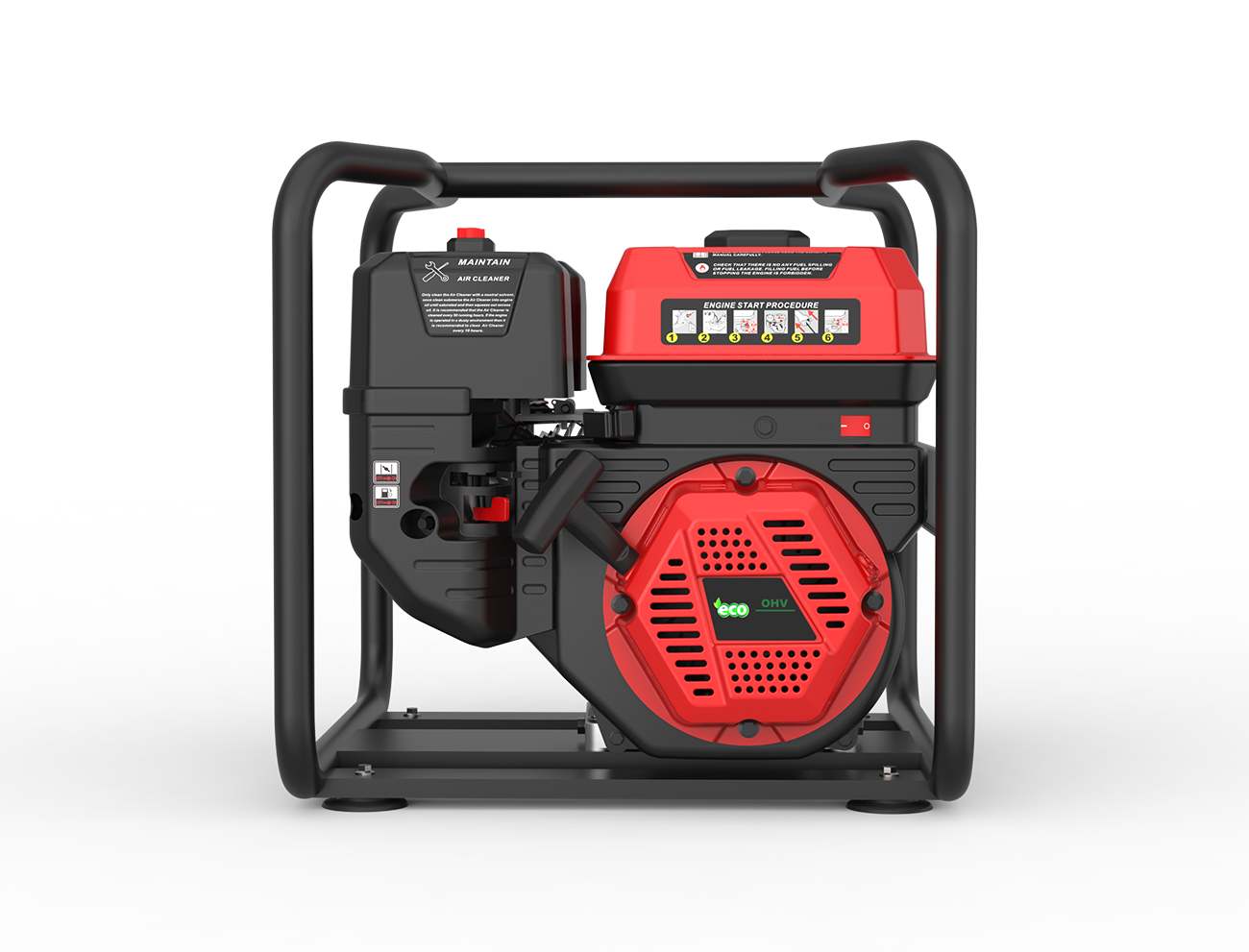

Panel Information
Features
Built to Last: Forged steel crankshaft and cast iron cylinder liner deliver exceptional durability and extended engine life.
Smart Protection: Low oil automatic shutdown safeguards critical components at all times.
Smooth & Efficient: Dual ball bearing design reduces friction for more stable performance and longer service life.
Easy Starting: Compression release technology ensures effortless pull-start, saving time and labor.
Usage Scenarios
Parameter Table
| STARTING SYSTEM | Recoil Start |
| Displacement(ml) | 212 |
| Pump type | Aluminum |
| Max.Output(kw)/(r/min) | 4.3/3600 |
| Inler/Outlet Diameter(mm) | 50/50 |
| Suction(m) | 7 |
| Lift(m) | 30 |
| Flow(m³/h) | 32 |
| Packing Dismensions | 475*445*460 |
| G.W(kg) | 26 |
| Loading Quantity(40HQ) | 628 |
| Forced air cooling,4-Stroke, SV,Single Cylinder | Forced air cooling,4-Stroke, OHV,25°Single Cylinder |
