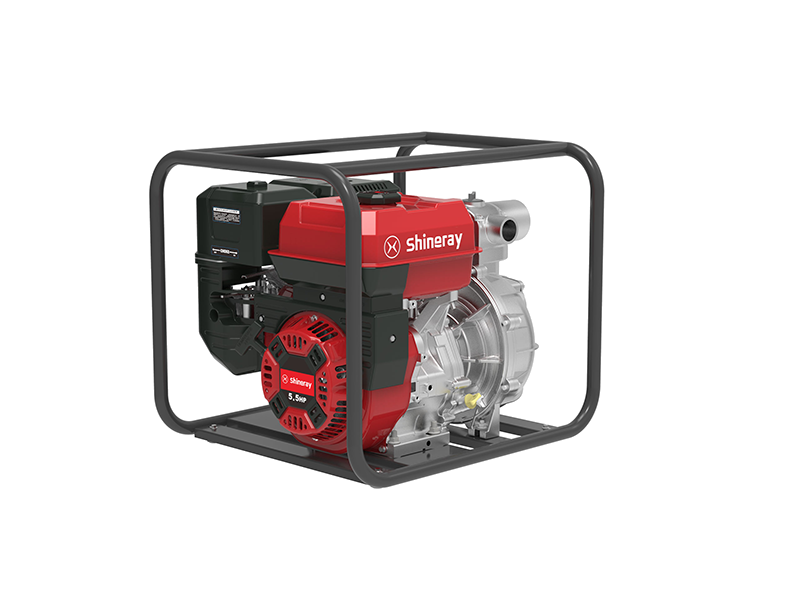

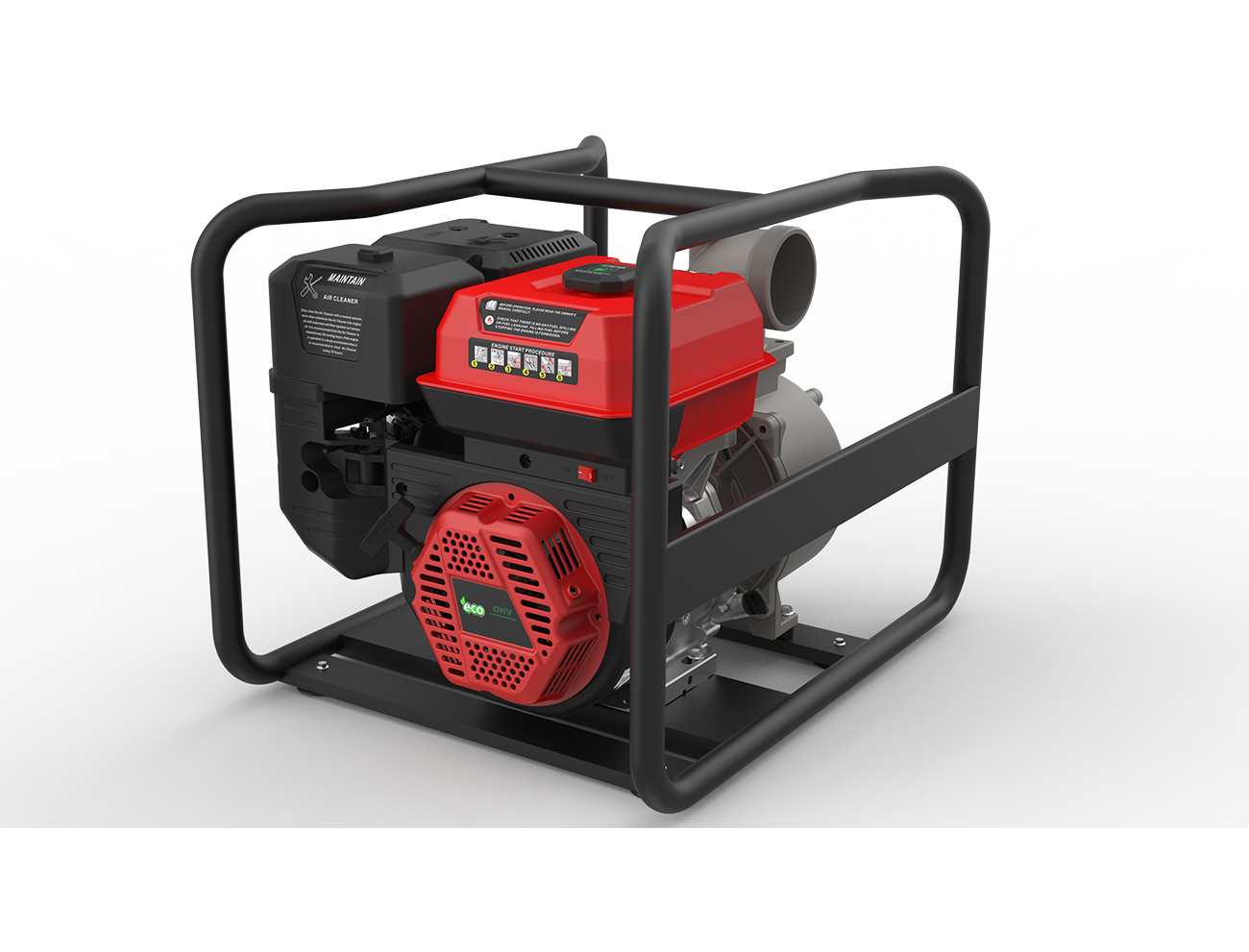

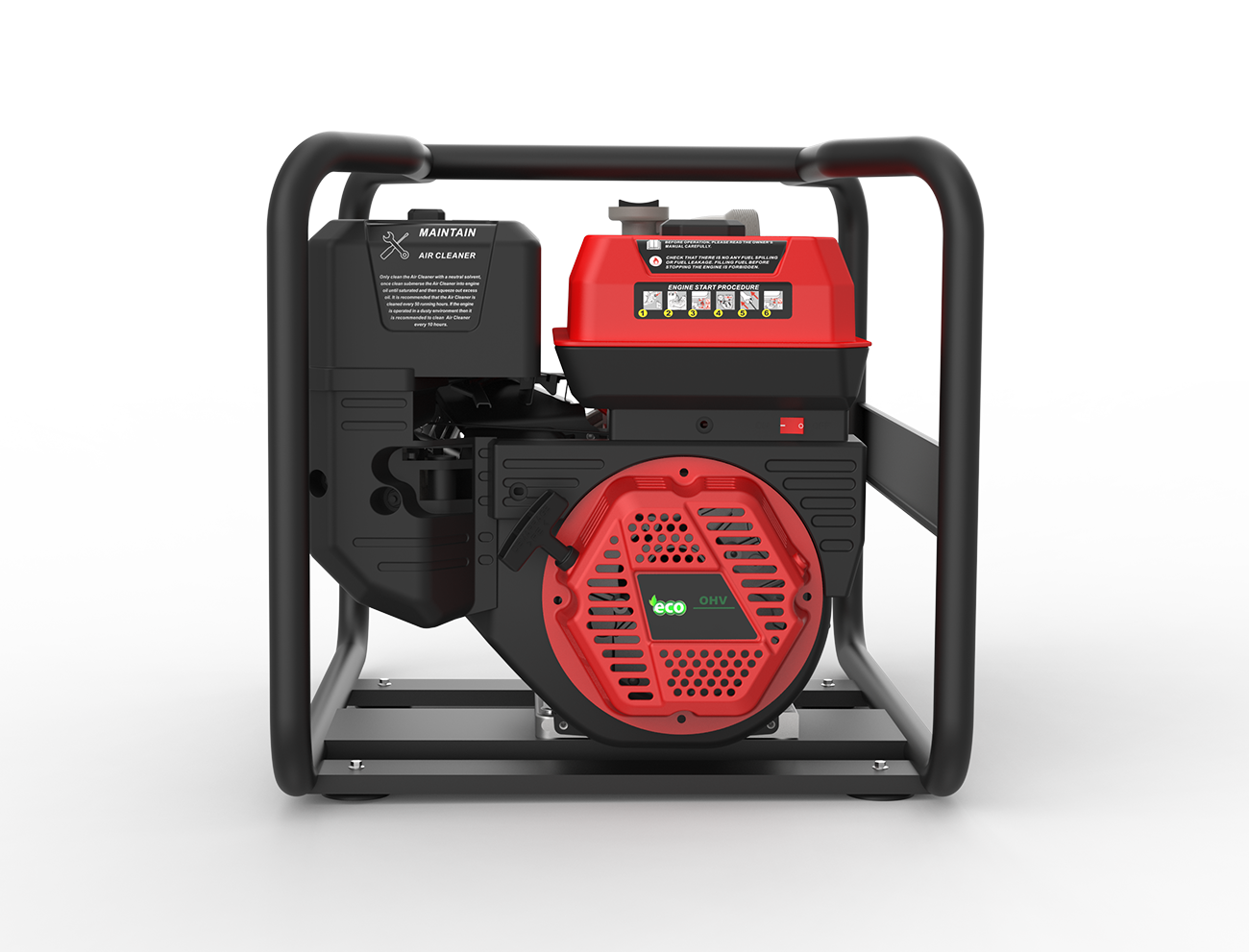

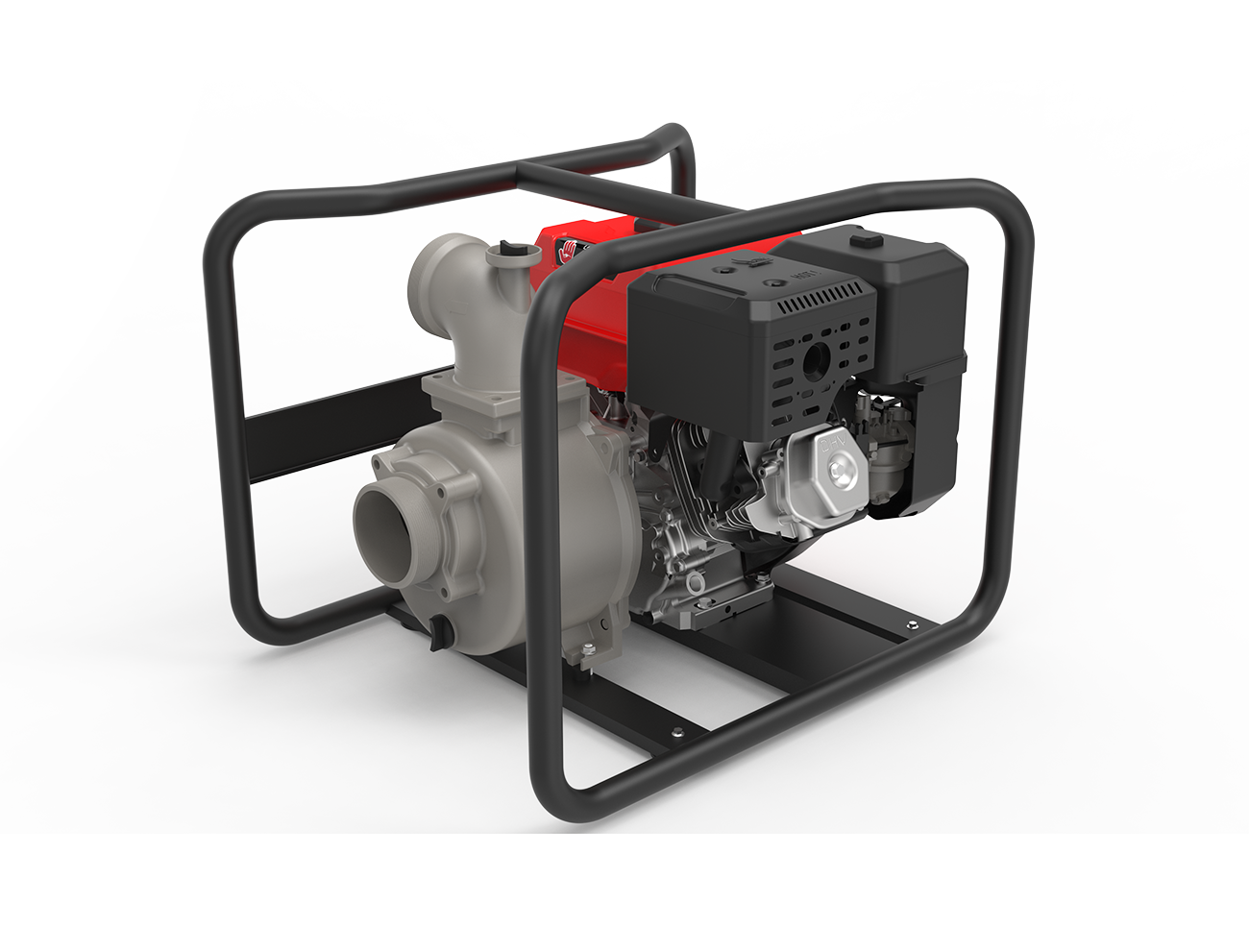

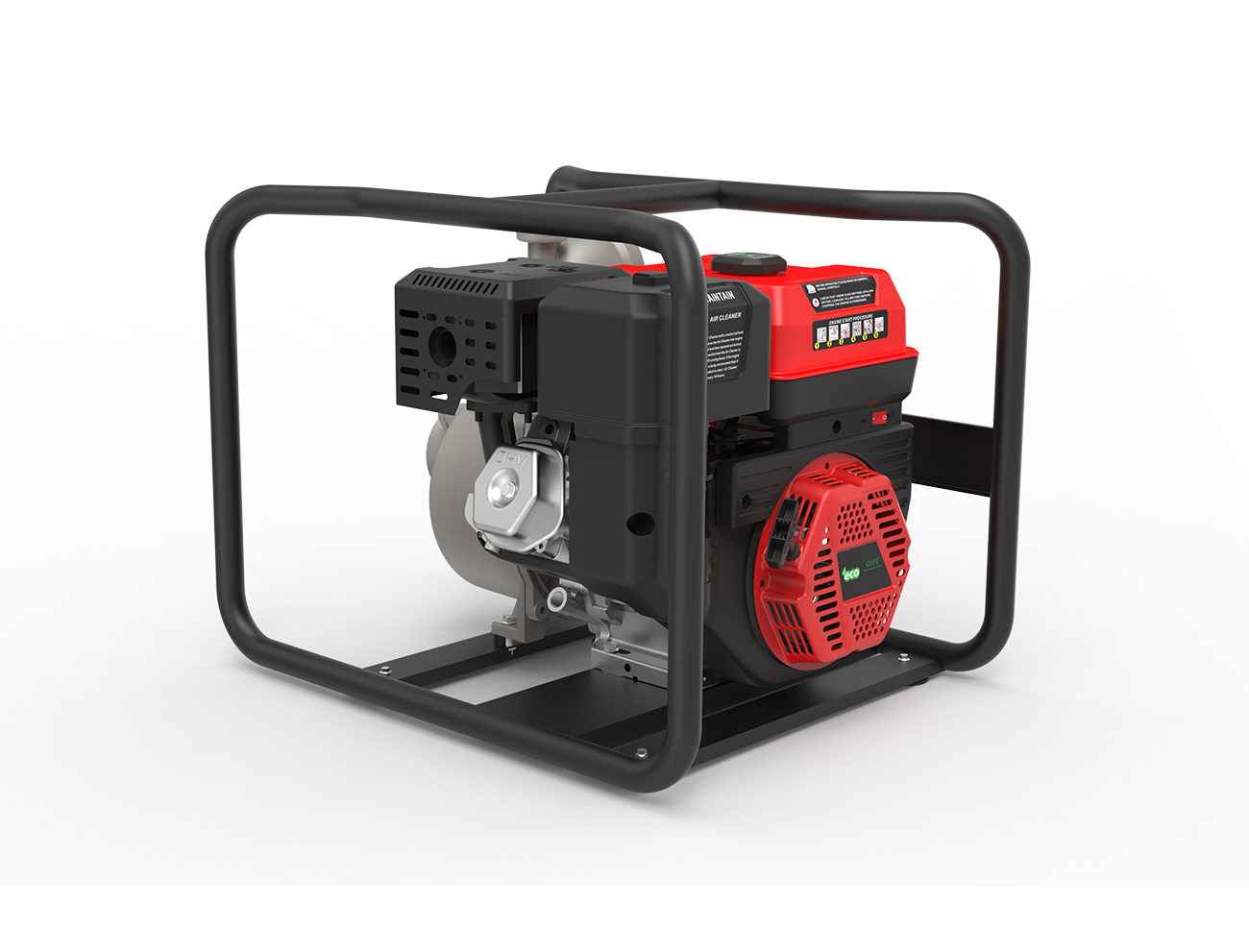

Water Pump
SRWP40
  • Output
    [ kw-(r/min)]
    4.3/3600
  • Overall Dimensions
    ( mm )
    620*465*540
  • Weight
    ( kg )
    31.5

Panel Information

Features

Built to Last: Forged steel crankshaft and cast iron cylinder liner deliver exceptional durability and extended engine life.

Smart Protection: Low oil automatic shutdown safeguards critical components at all times.

Smooth & Efficient: Dual ball bearing design reduces friction for more stable performance and longer service life.

Easy Starting: Compression release technology ensures effortless pull-start, saving time and labor.

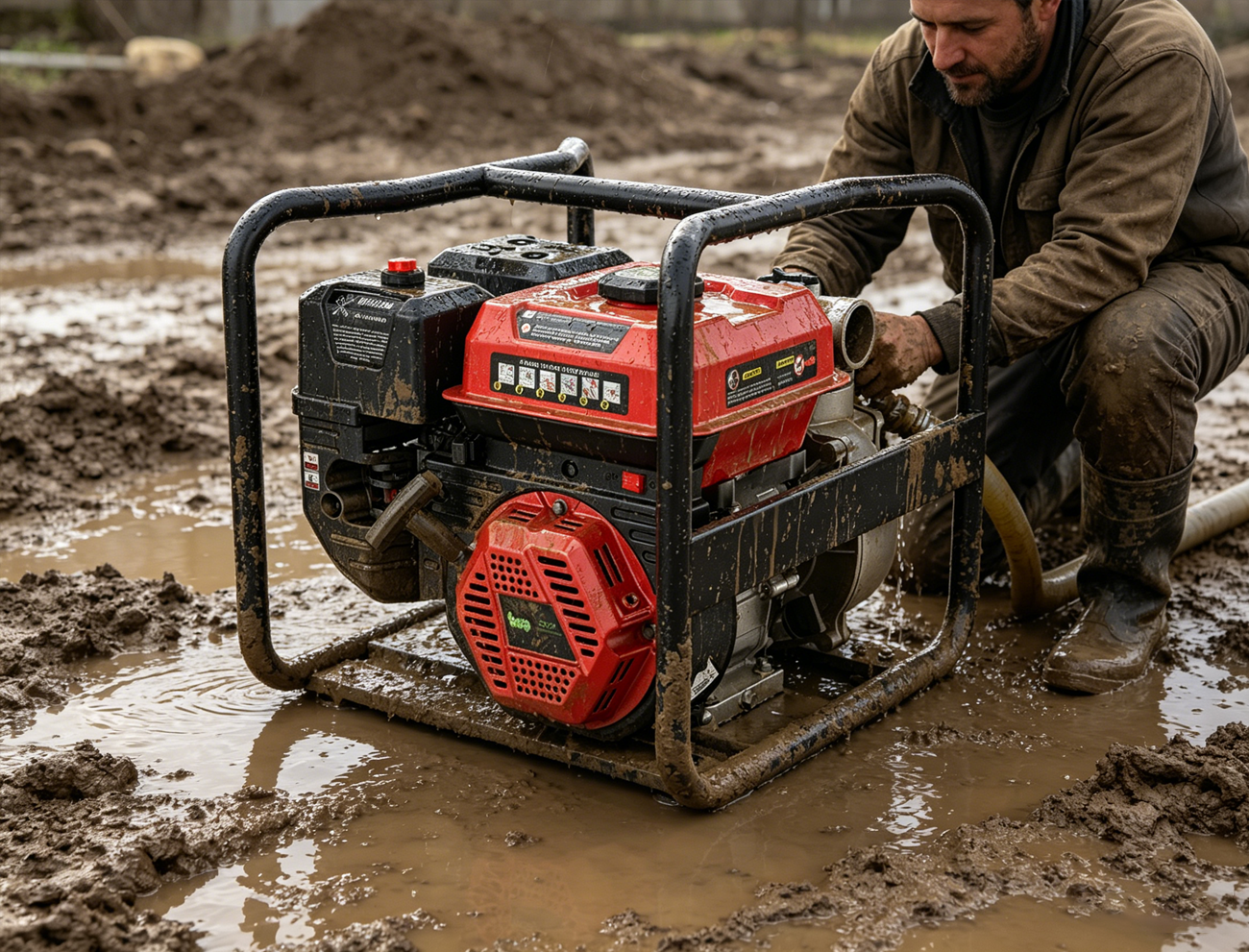

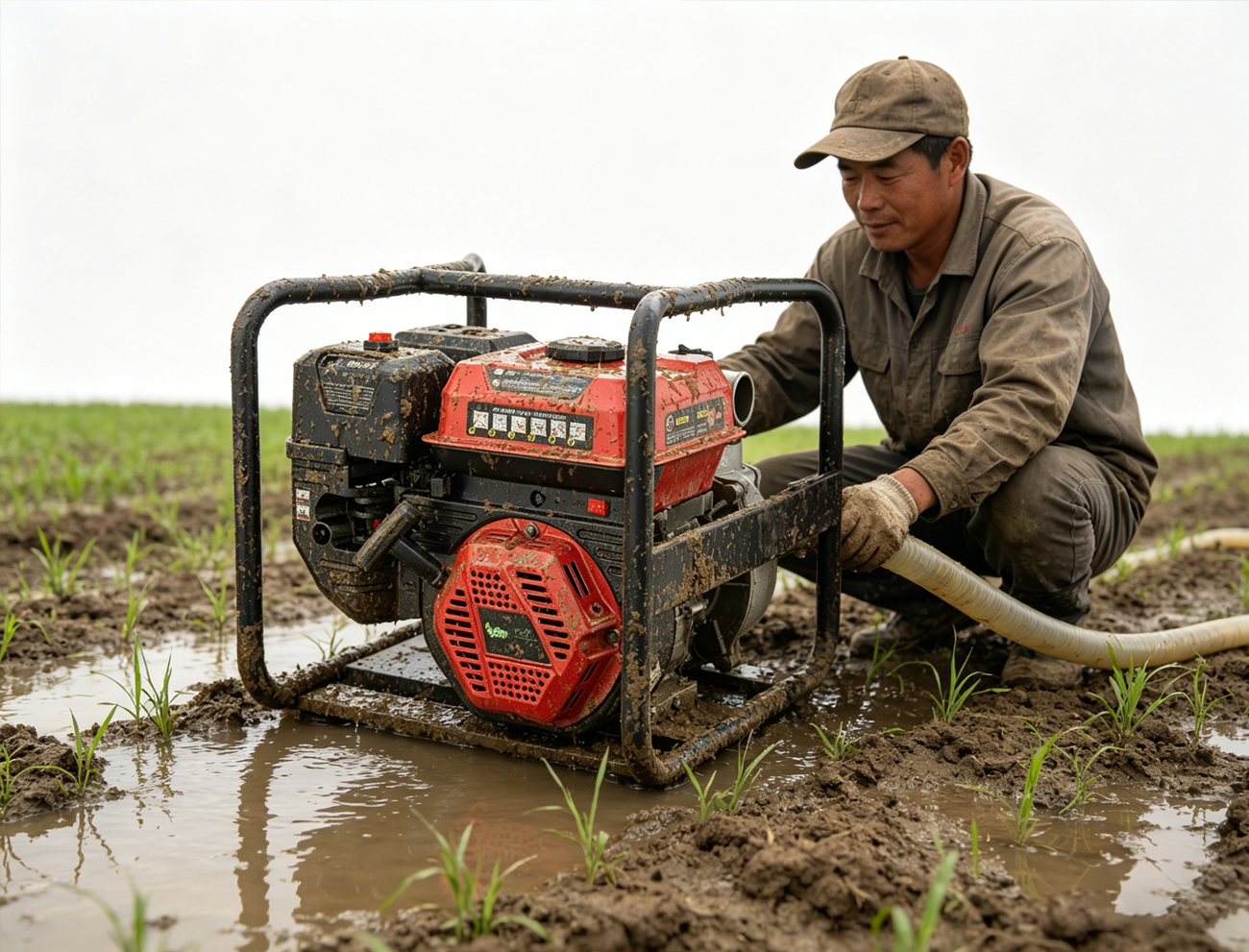

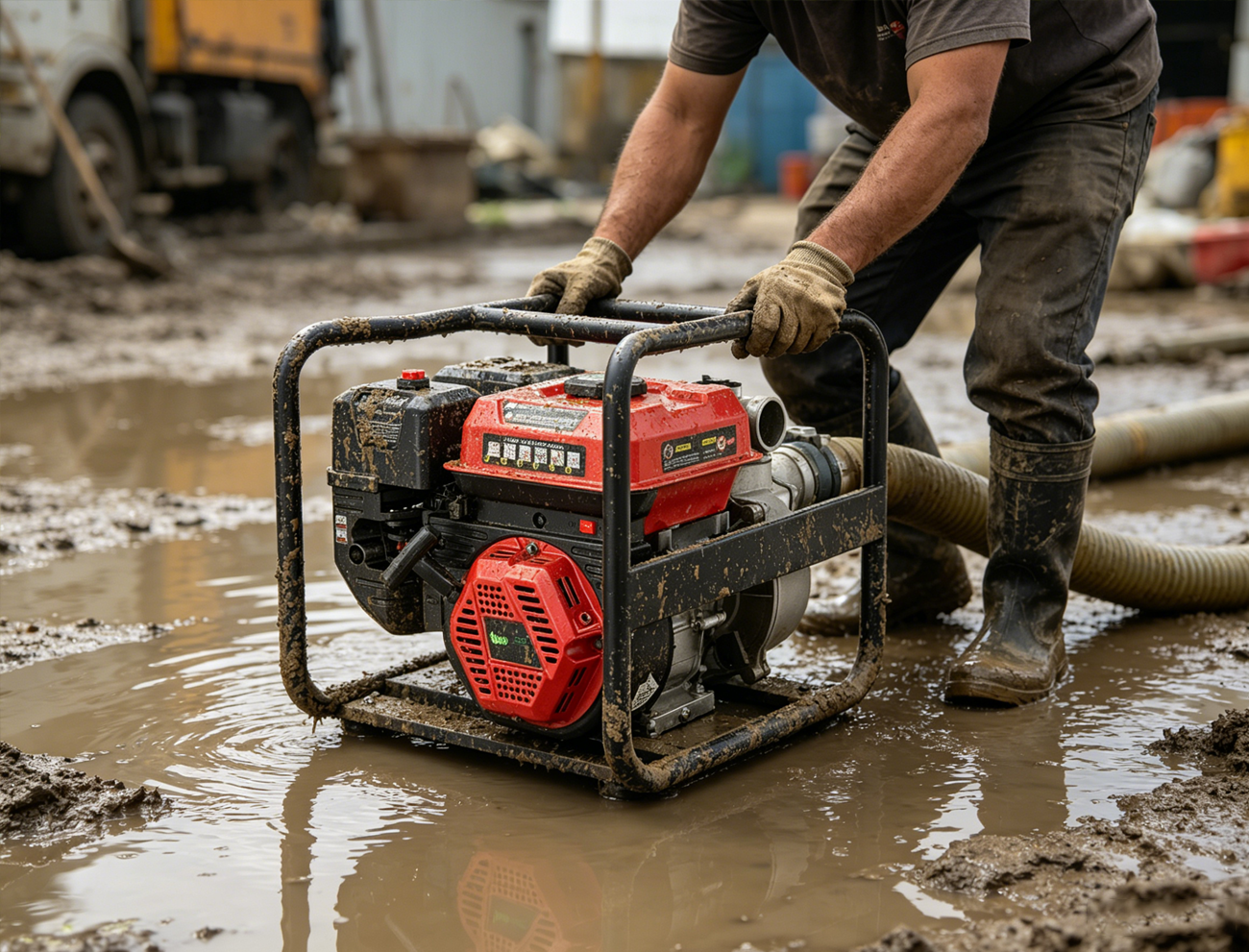

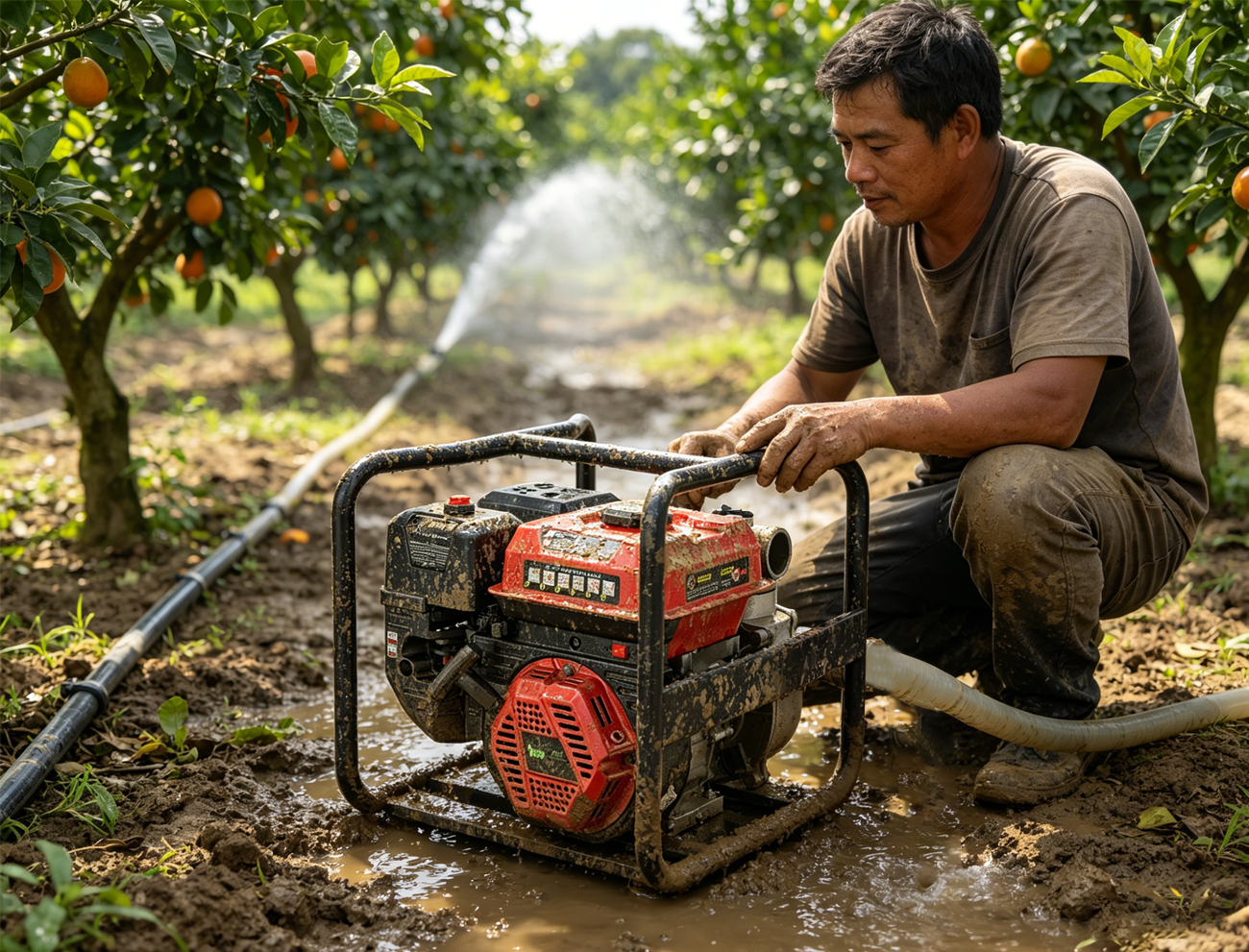

Usage Scenarios

Parameter Table

STARTING SYSTEM Recoil Start
Displacement(ml) 212
Pump type Aluminum
Max.Output(kw)/(r/min) 4.3/3600
Inler/Outlet Diameter(mm) 100/100
Suction(m) 7
Lift(m) 26
Flow(m³/h) 70
Packing Dismensions 620*465*540
G.W(kg) 31.5
Loading Quantity(40HQ) 380

Forced air cooling,4-Stroke,
SV,Single Cylinder

Forced air cooling,4-Stroke,
OHV,25°Single Cylinder
