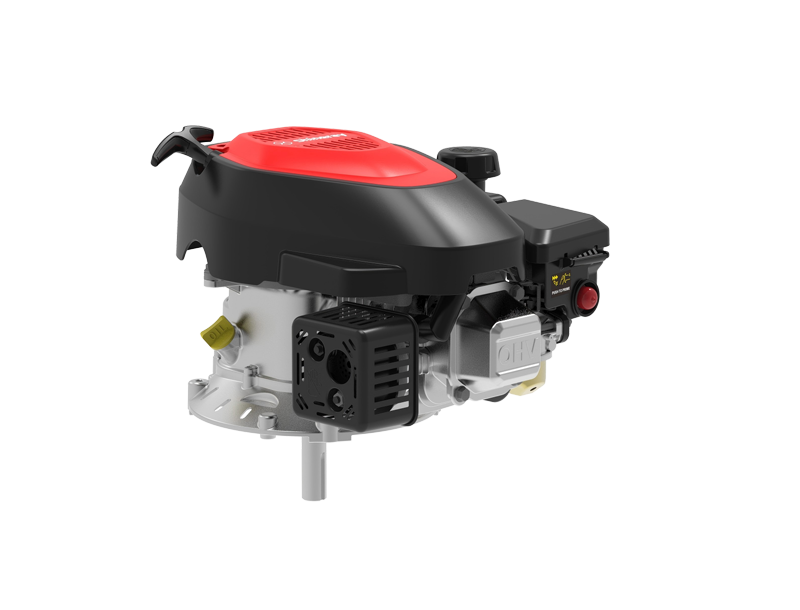

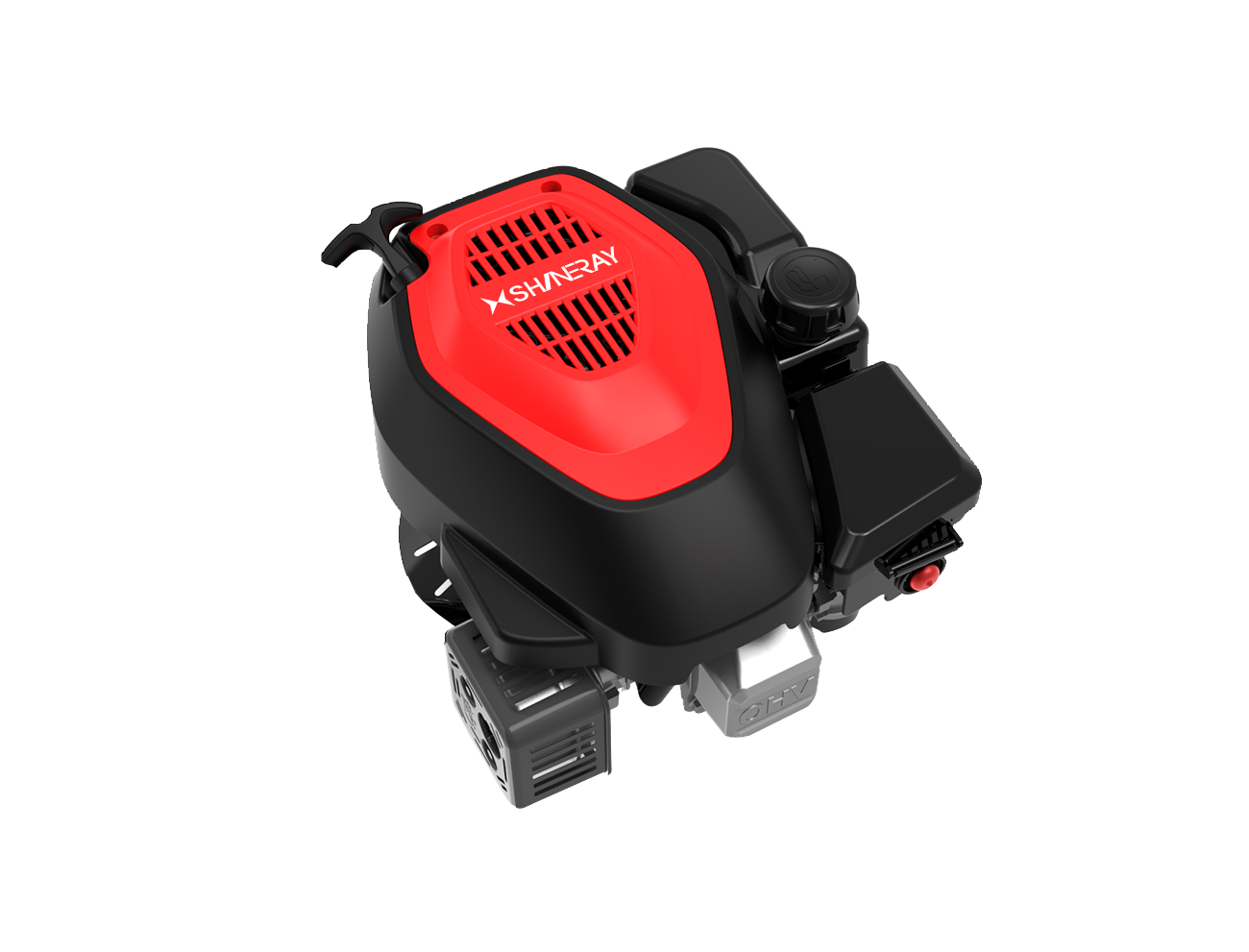

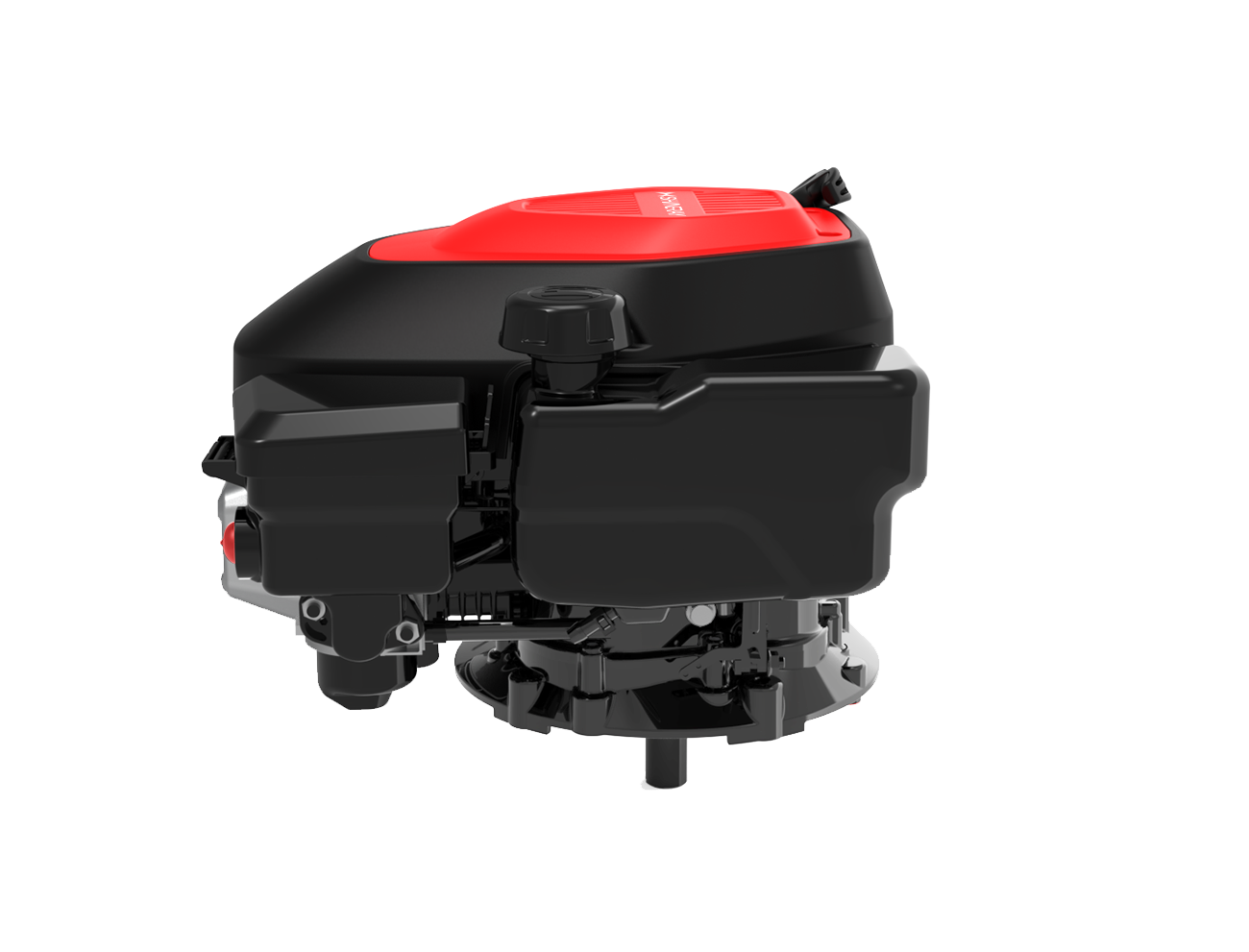

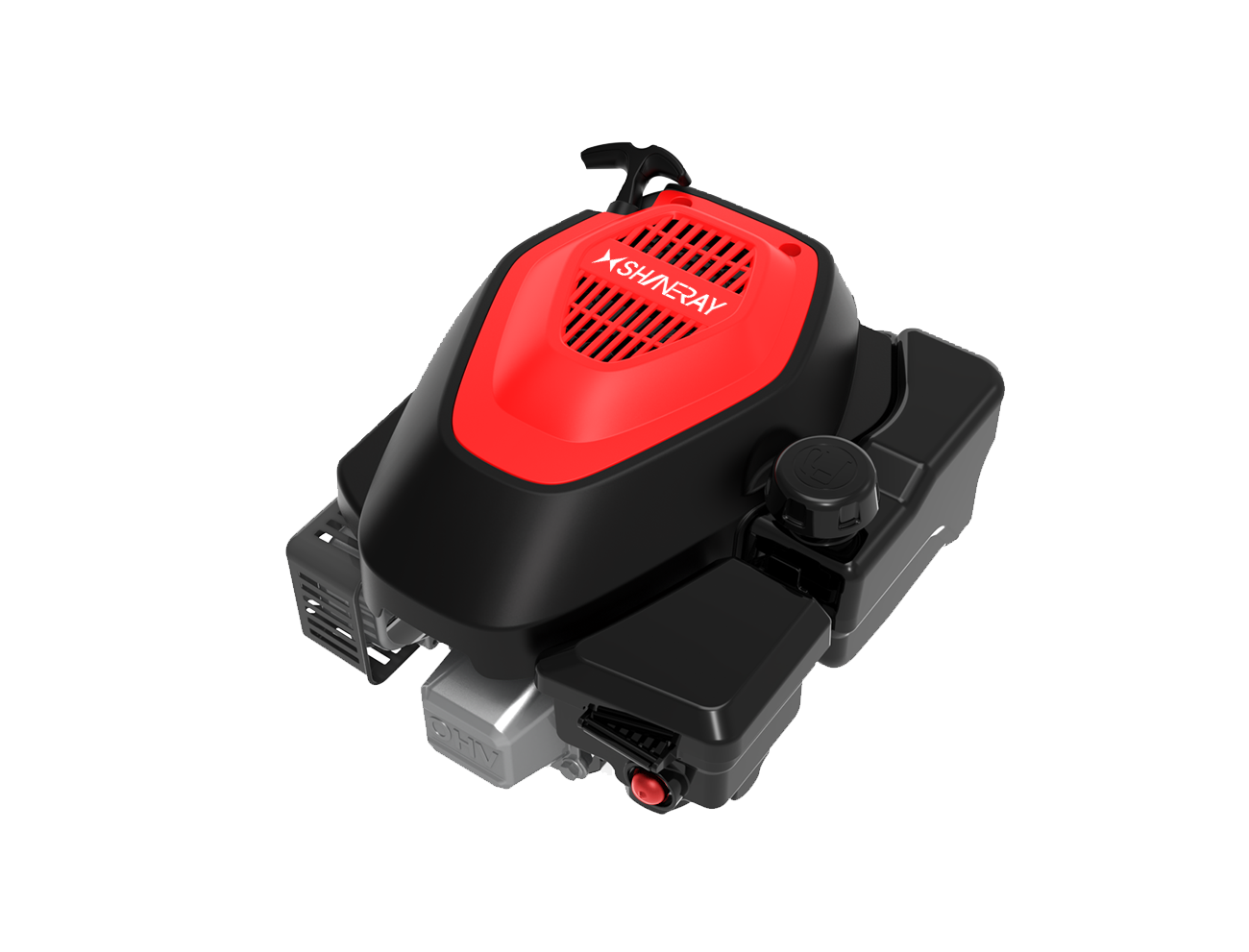

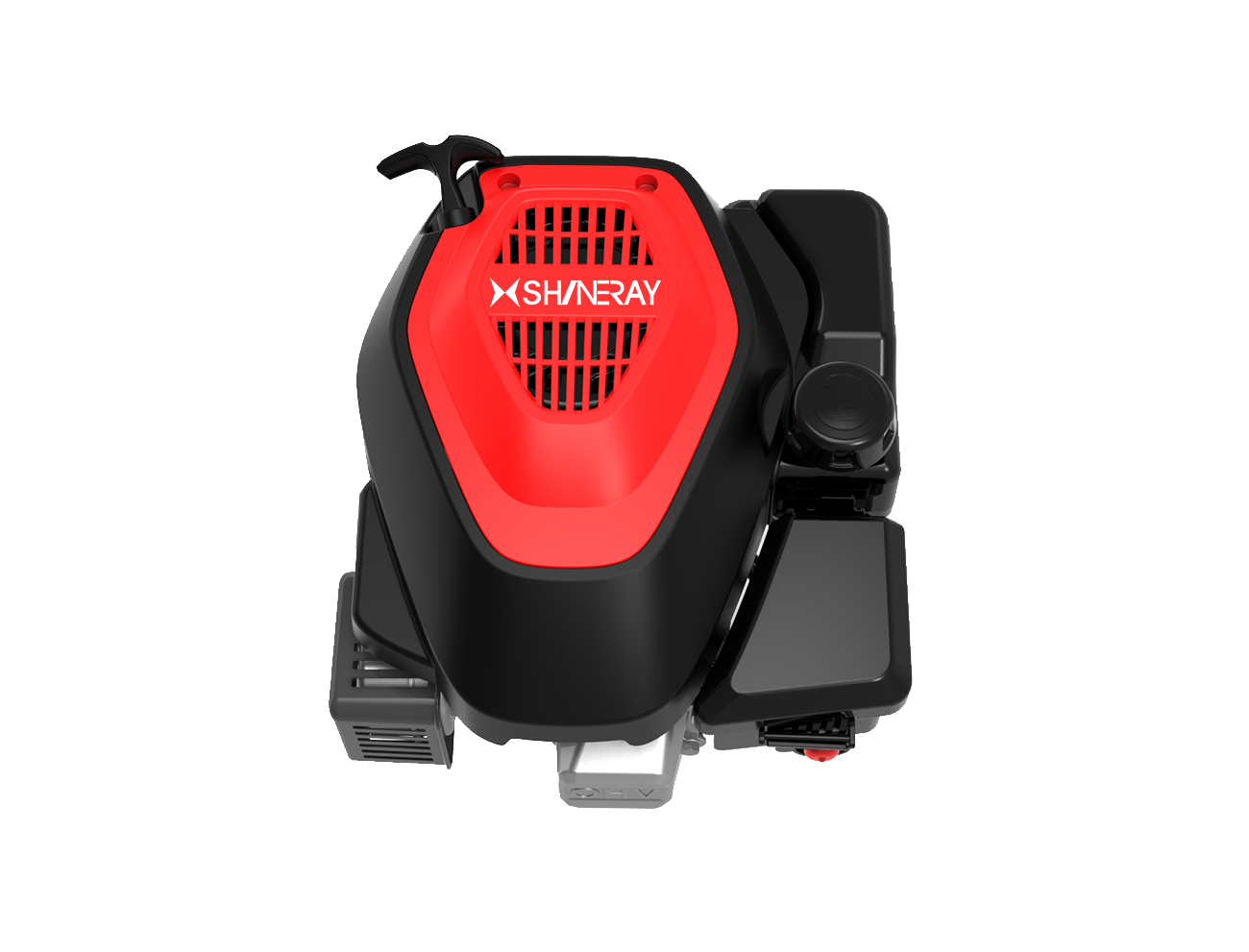

Vertical Shaft Power
SRV150
  • Output
    [ kw-(r/min)]
    2.6/3600
  • Overall Dimensions
    ( mm )
    331×307×245
  • Weight
    ( kg )
    8.5(10.5)

Panel Information

Features

Easy Start: Quick and reliable ignition ensures you spend less time starting and more time working.

Low Vibration: Professional balance technology reduces vibration for smoother operation and less operator fatigue.

Lightweight Design: Easy to carry and maneuver, perfect for extended use without strain.

Durable Engine: Cylinder liner construction enhances wear resistance, significantly extending engine life.

Heavy-Duty Filtration: Large-capacity air filter provides superior protection against dust and debris.

Automatic Choke: Smart choke mechanism automatically adjusts for easy starting in cold or hot conditions.

Usage Scenarios

Parameter Table

MODE SRV150
TYPE Single-cylinder 4-stroke, forced air cooling, OHV, vertical shaft
CYLINDER BORE ×STROKE(mm) 65*45
DISPLACEMENT(ml) 149
RATED POWER[kw-(r/min)] 2.6/3600
MAXIMUM NET TORQUE 8/2800
FUEL CAPACITY(L) 1
ROTATE DIRECTION Counterclockwise (facing the output shaft)
STARTING SYSTEM Kick start/Electric start
L×W×H(mm) 331×307×245
NET WEIGHT(kg) 8.5(10.5)
