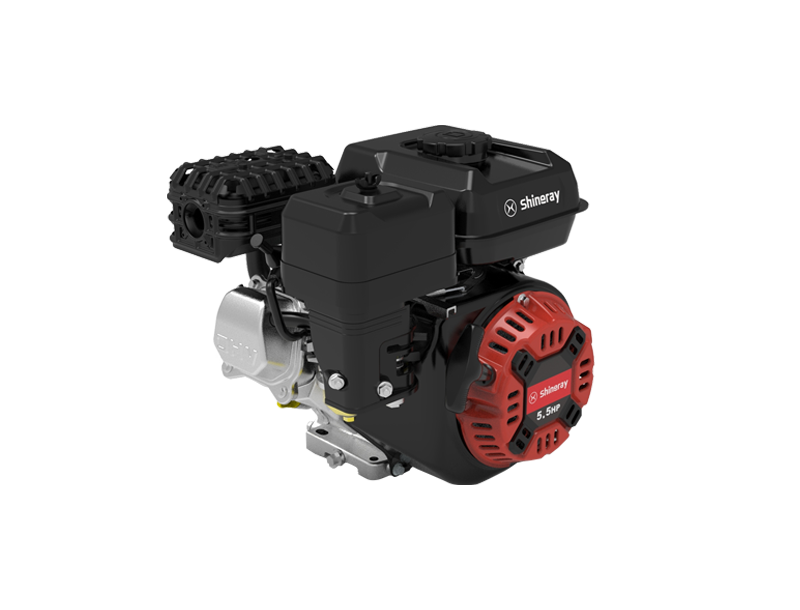

Gasoline power
SR210
-
Output[ kw-（r/min）]4.2/3600
-
Overall Dimensions( mm )370×320×330
-
Weight ( kg )16(18)
Panel Information
Features
Metal Camshaft & Forged Crankshaft: Ensures extended service life and enhanced durability.
Dual-Stage Air Filter: Delivers superior air filtration performance for optimal engine protection.
Large-Capacity Muffler: Provides excellent noise reduction for quieter operation.
Low Oil Level Warning System: Protects key engine components by preventing damage from insufficient lubrication.
EPA and Euro 5 Compliant: Meets stringent international environmental standards.

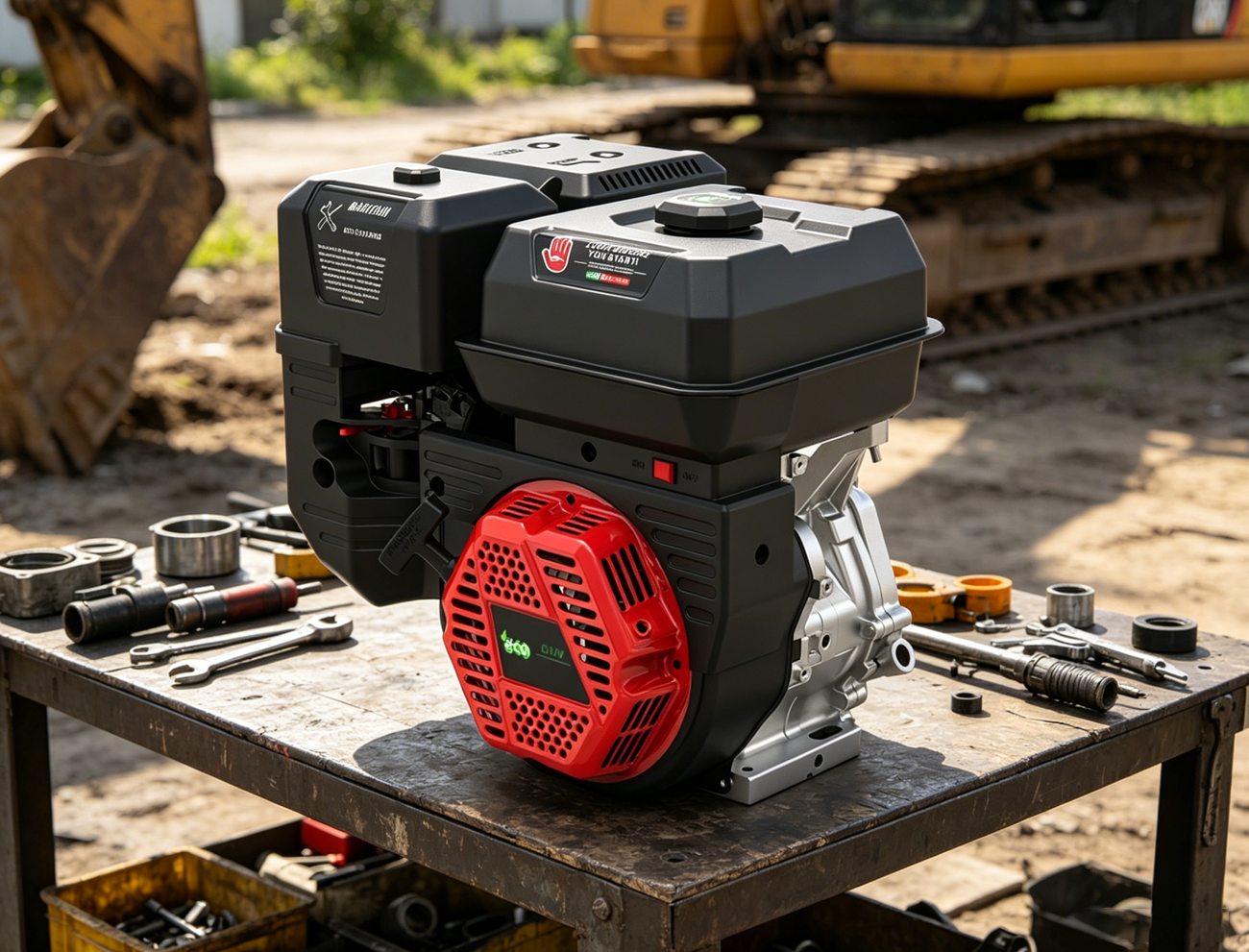

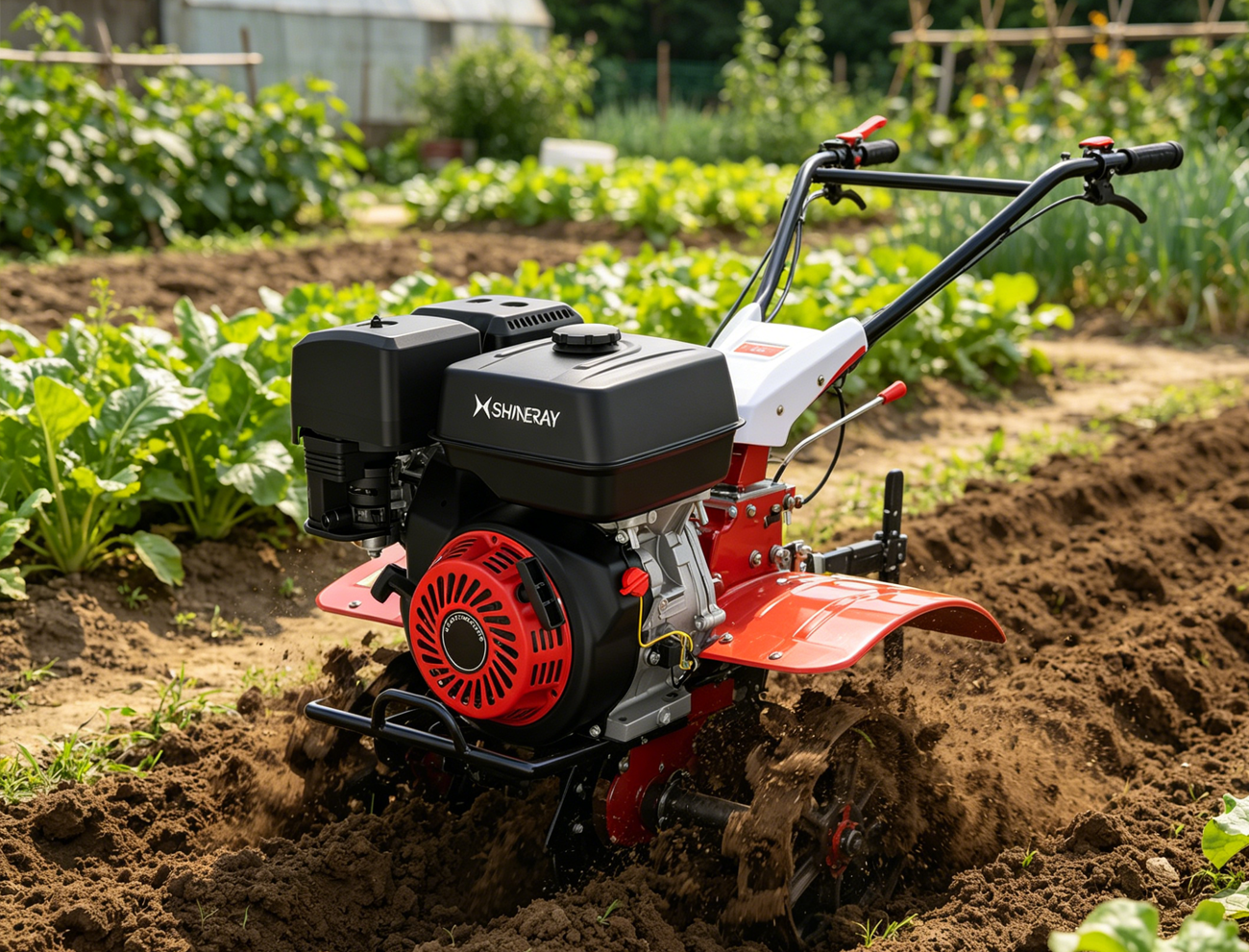

Usage Scenarios
Parameter Table
| MODE | SR210 |
| TYPE | Single-cylinder 4-stroke, forced air-cooled, OHV, horizontal shaft, 25° tilt |
| CYLINDER BORE ×STROKE(mm) | 70×55 |
| DISPLACEMENT(ml) | 212 |
| RATED POWER[kw-(r/min)] | 4.2/3600 |
| MAXIMUM NET TORQUE | 12/2500 |
| FUEL CAPACITY(L) | 3.6 |
| ROTATE DIRECTION | Counterclockwise (facing the output shaft) |
| STARTING SYSTEM | Kick start/Electric start |
| L×W×H（mm） | 370×320×330 |
| NET WEIGHT(kg) | 16(18) |
