Gasoline power

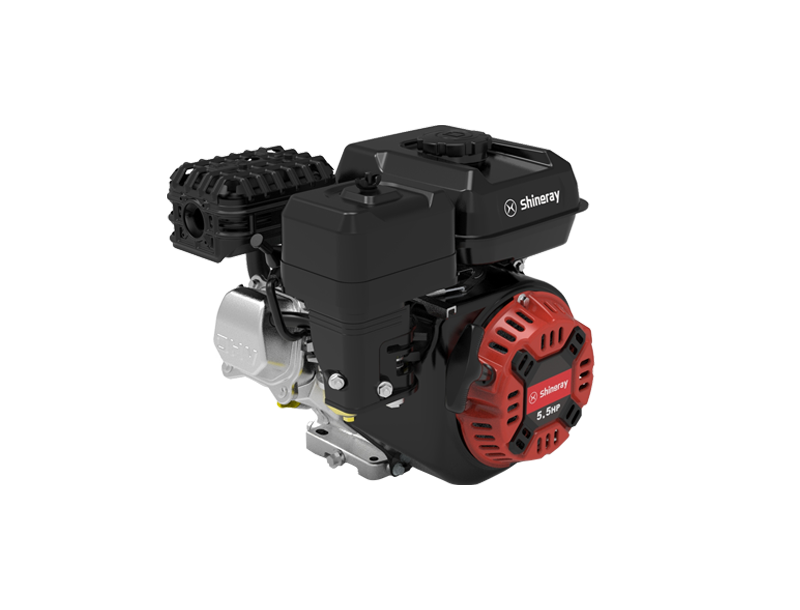

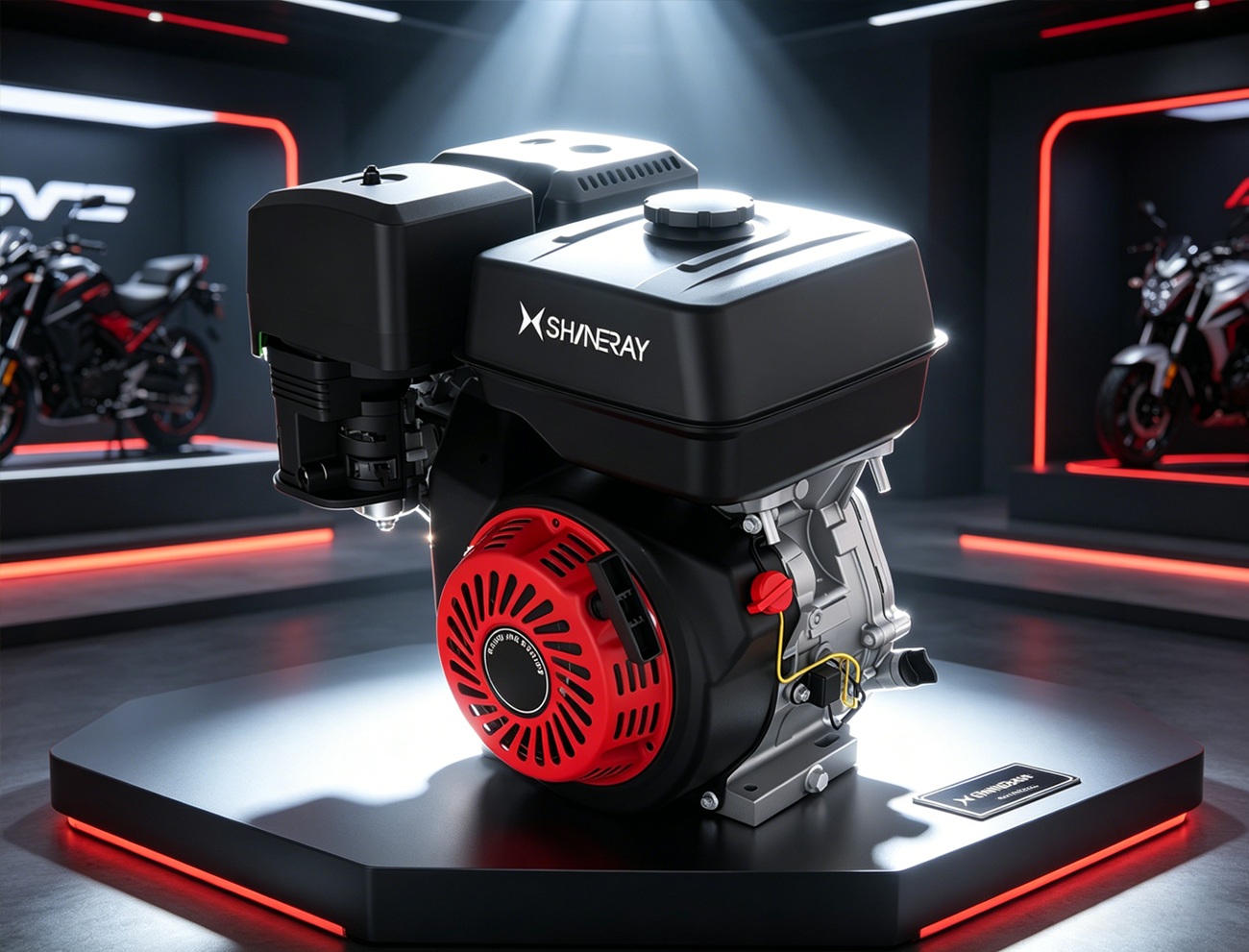

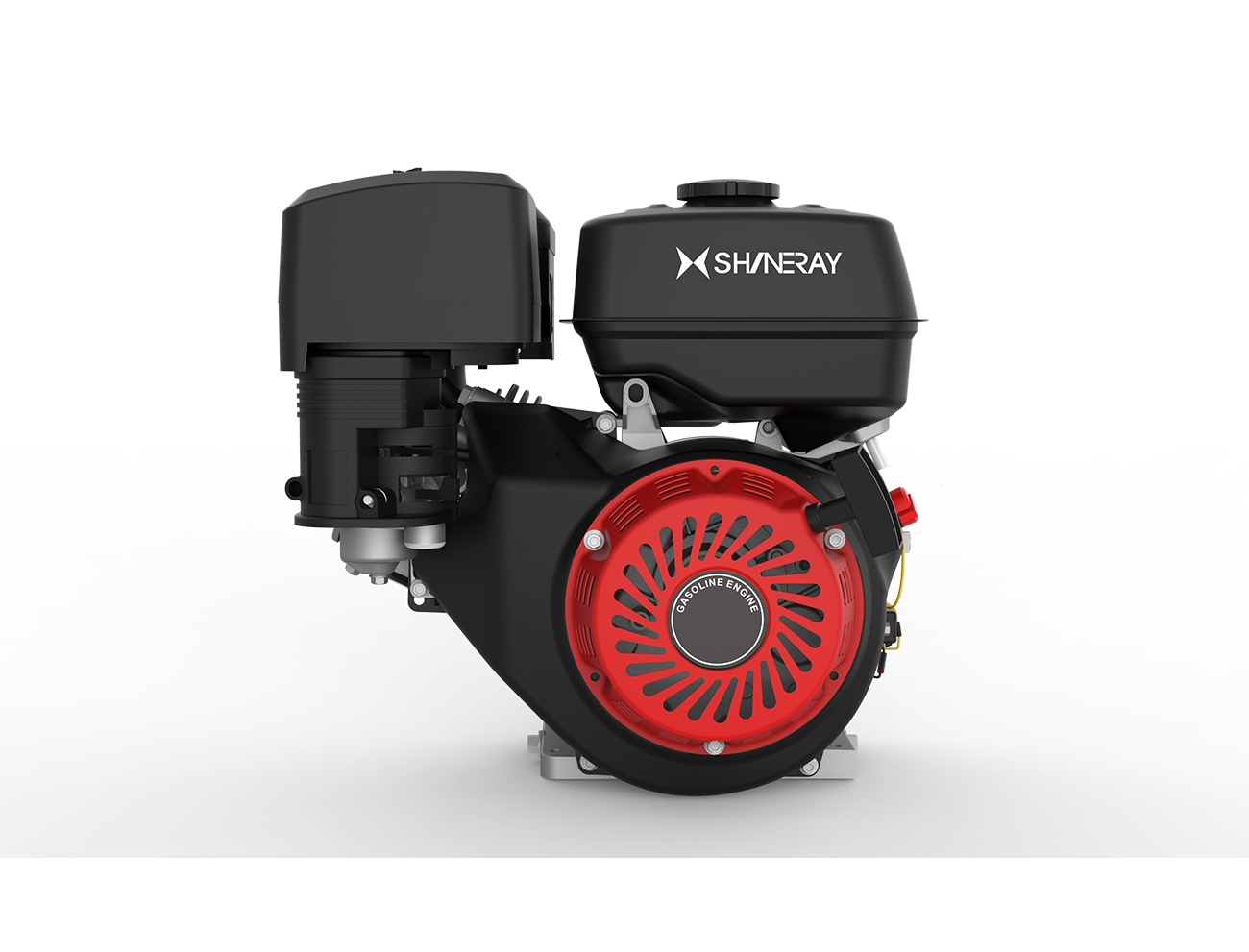

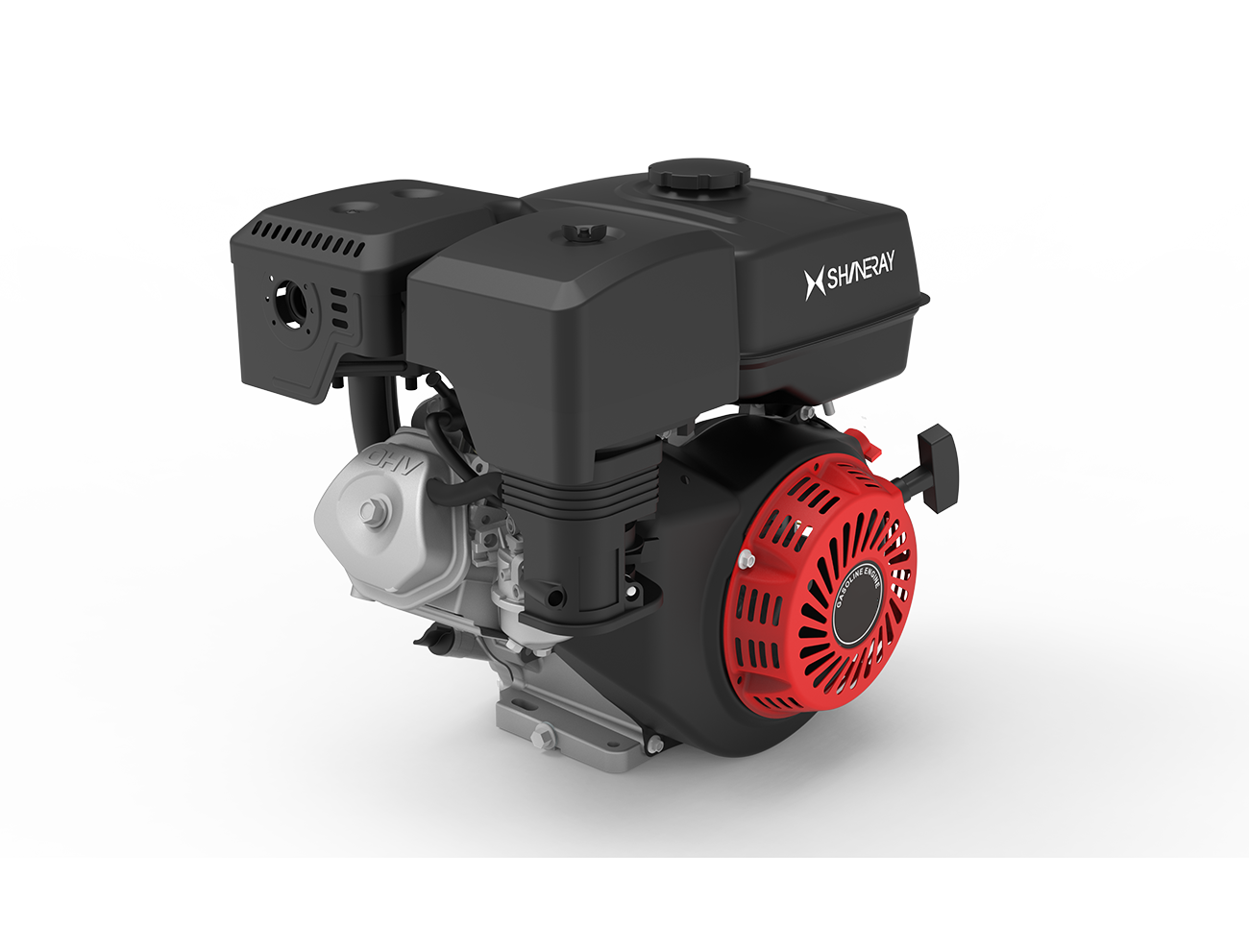

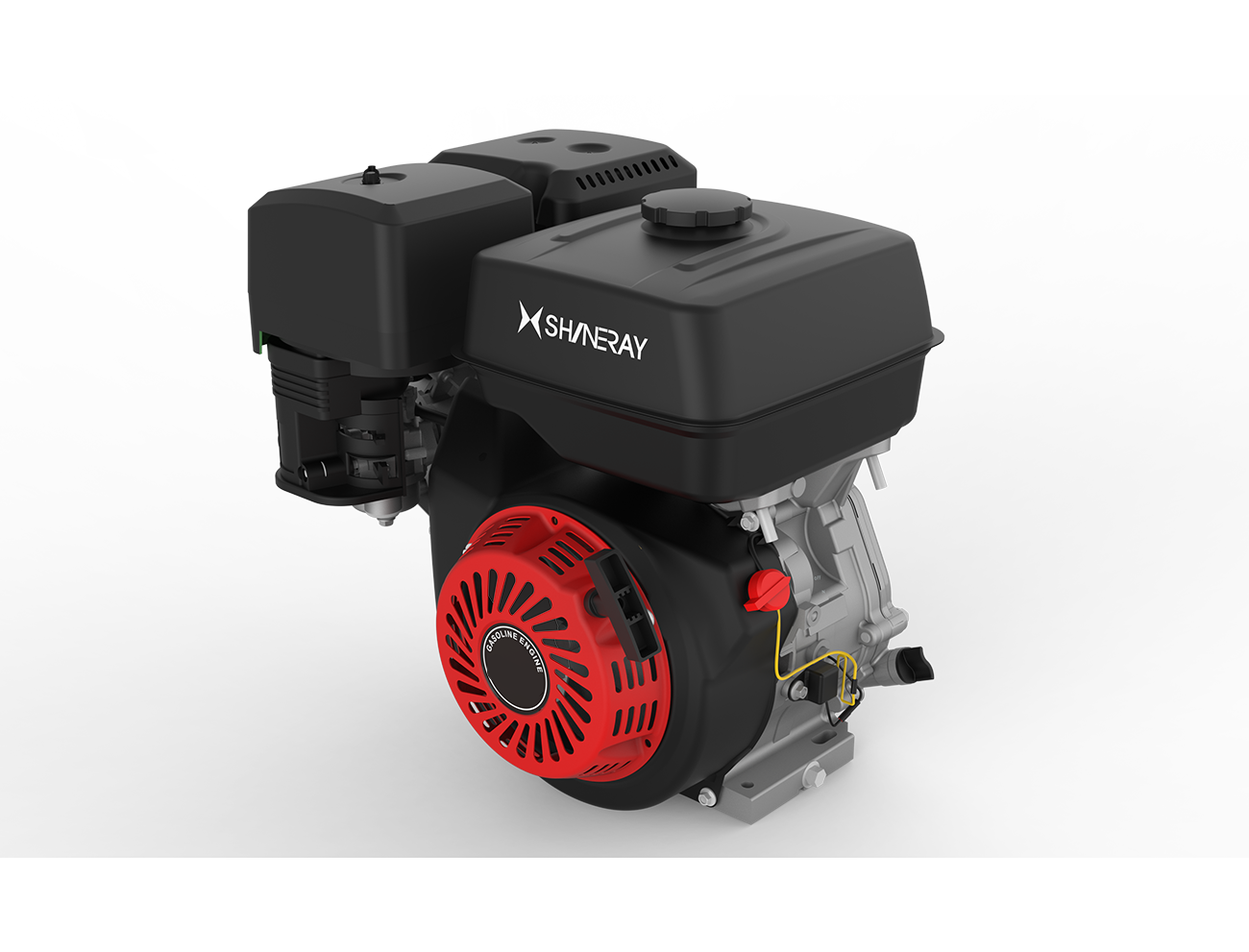

SR500
-
Output[ kw-（r/min）]12.5/3600
-
Overall Dimensions( mm )490×350×445
-
Weight ( kg )32.5（35.5）
Panel Information
Features
Simple & Reliable: Mature technology with a straightforward design ensures trouble-free operation.
Low Maintenance: Easy to maintain with minimal service costs, saving you money over the long run.
Long-Lasting Durability: Robust construction provides extended service life even under tough conditions.
Easy Starting: Engine starts quickly and reliably, reducing downtime and frustration.
Fuel-Efficient: Low fuel consumption reduces operating expenses and improves overall efficiency.
Great Value: Combines low maintenance, fuel savings, and long life for excellent economic benefits.

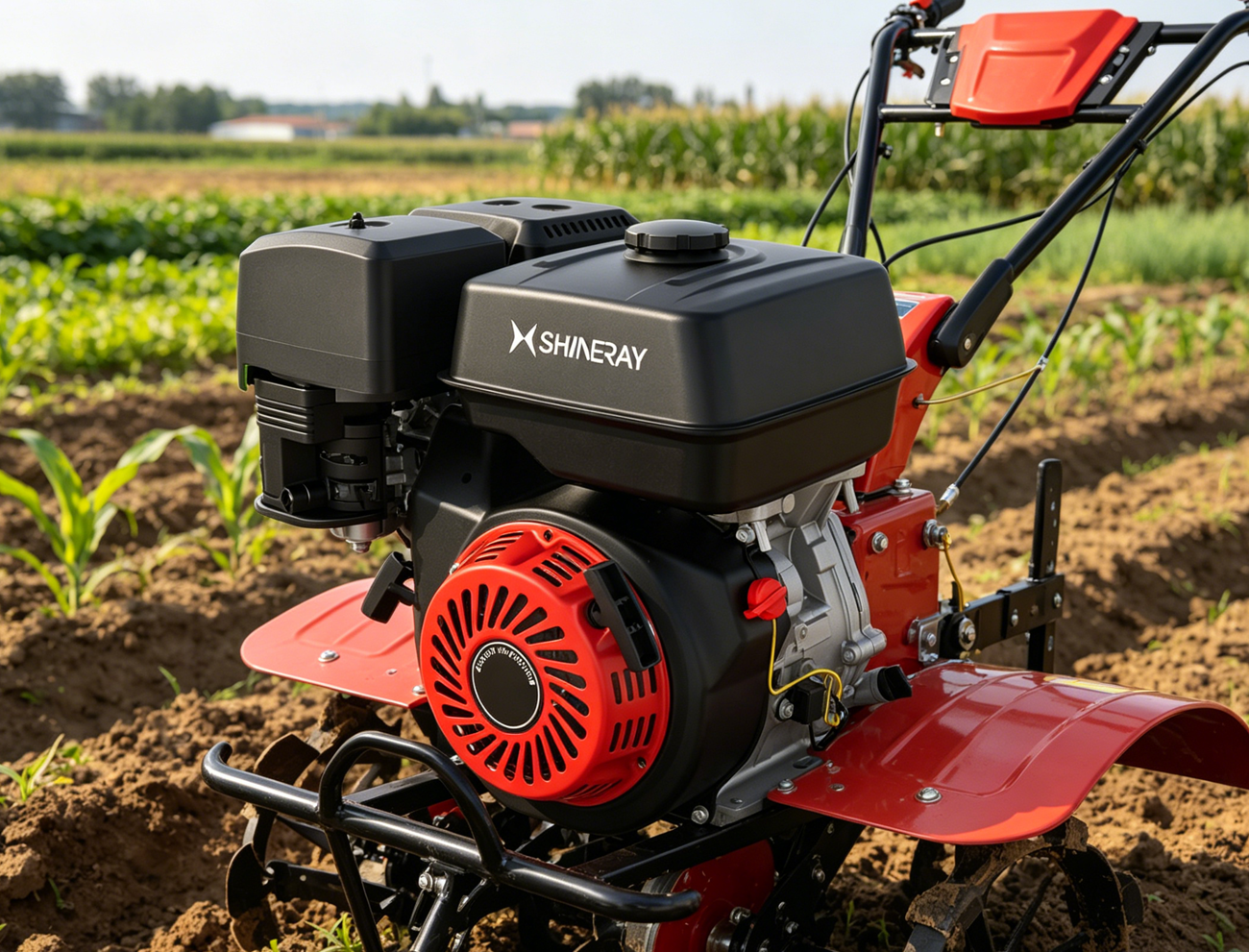

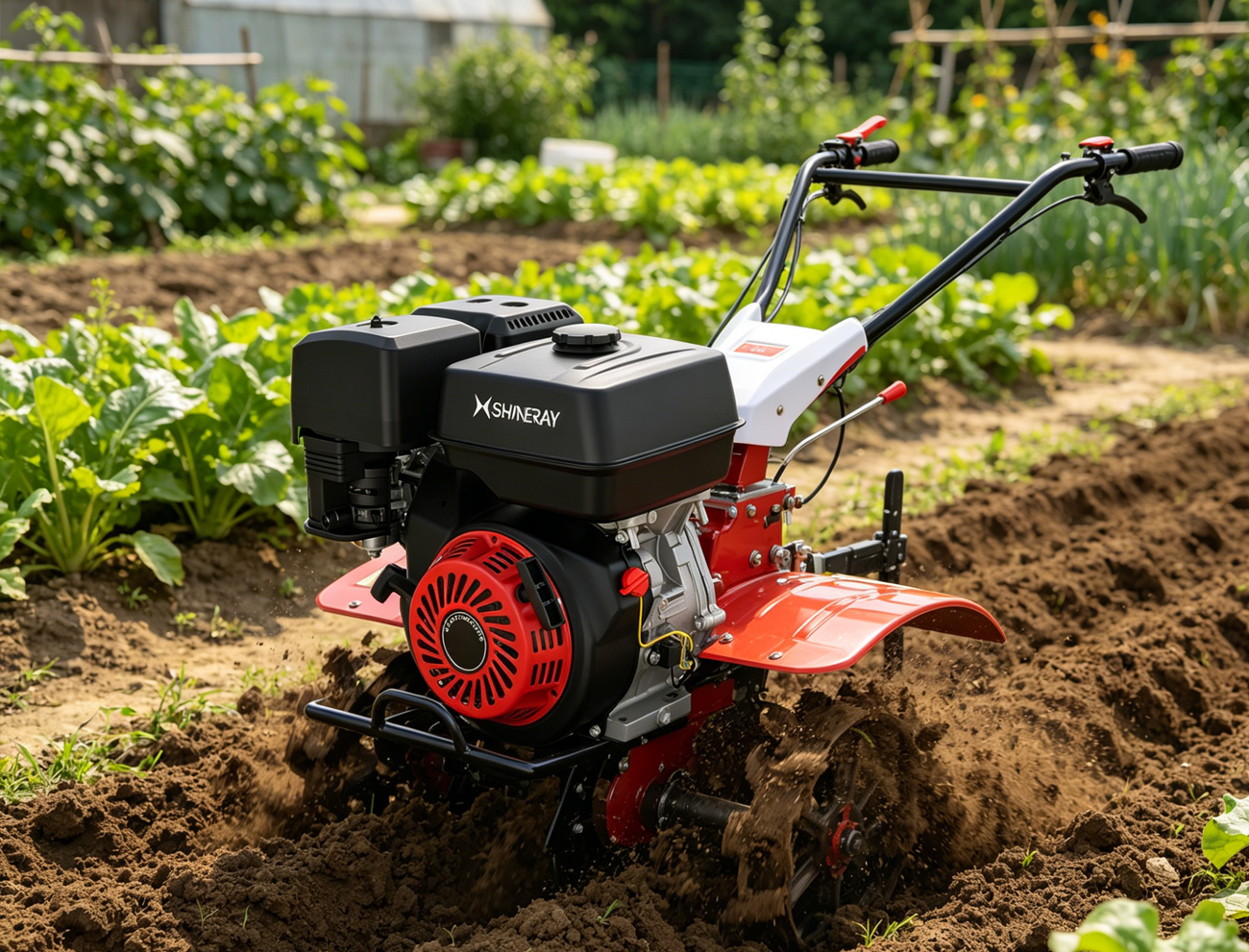

Usage Scenarios
Parameter Table
| MODE | SR500 |
| TYPE | Single-cylinder 4-stroke, forced air-cooled, OHV, horizontal shaft, 25° tilt |
| CYLINDER BORE ×STROKE(mm) | 94×72 |
| DISPLACEMENT(ml) | 500 |
| RATED POWER[kw-(r/min)] | 12.5/3600 |
| MAXIMUM NET TORQUE | 35/2800 |
| FUEL CAPACITY(L) | 7 |
| ROTATE DIRECTION | Counterclockwise (facing the output shaft) |
| STARTING SYSTEM | Kick start/Electric start |
| L×W×H（mm） | 490×350×445 |
| NET WEIGHT(kg) | 32.5（35.5） |
