Gasoline power
SR80
-
Output[ kw-（r/min）]1.1/3600
-
Overall Dimensions( mm )270×265×345
-
Weight ( kg )9
Panel Information
Features
Metal Camshaft & Forged Crankshaft: Ensures extended service life and enhanced durability.
Dual-Stage Air Filter: Delivers superior air filtration performance for optimal engine protection.
Large-Capacity Muffler: Provides excellent noise reduction for quieter operation.
Low Oil Level Warning System: Protects key engine components by preventing damage from insufficient lubrication.
EPA and Euro 5 Compliant: Meets stringent international environmental standards.

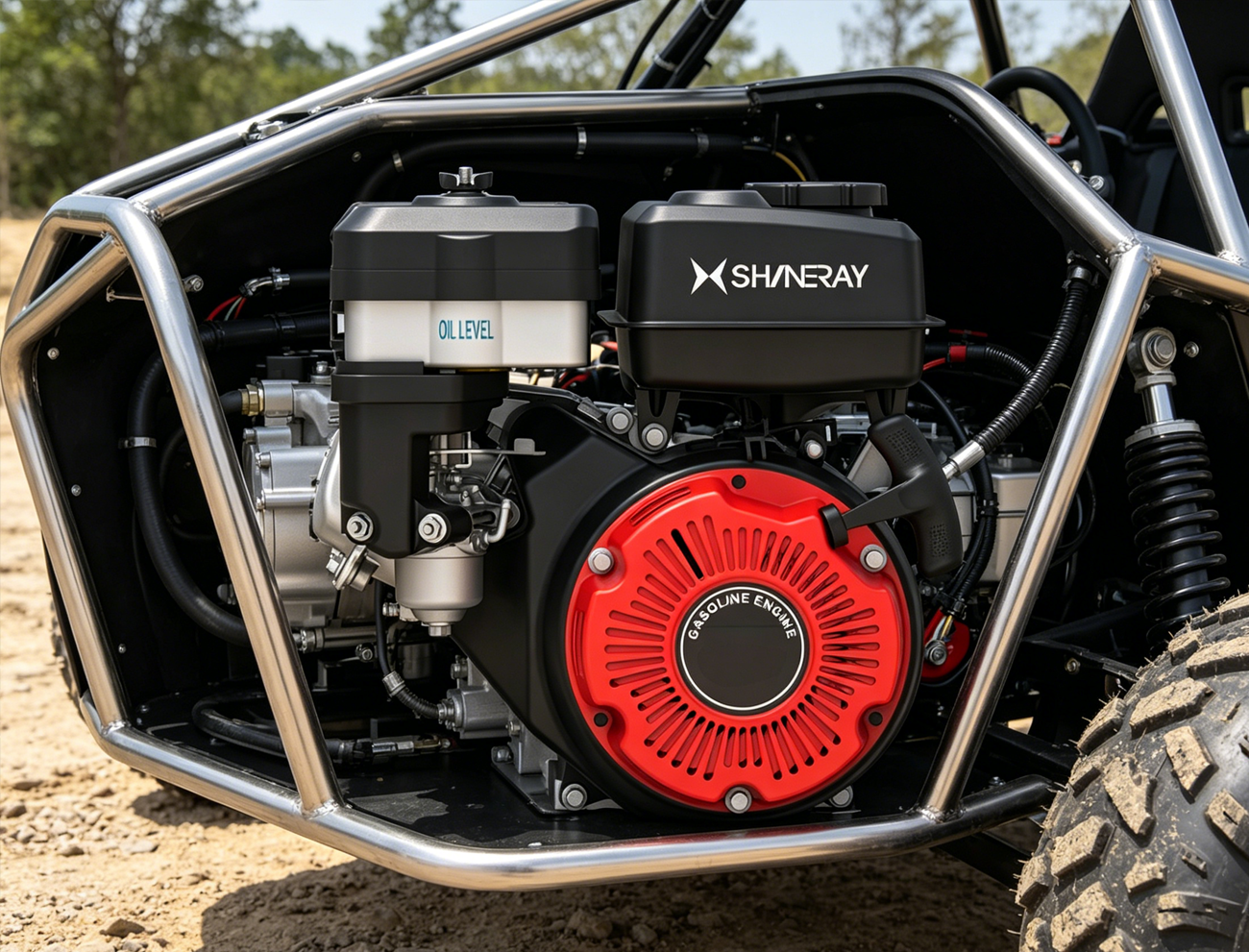

Usage Scenarios
Parameter Table
| MODE | SR80 |
| TYPE | Single-cylinder 4-stroke, forced air-cooled, SV, horizontal shaft |
| CYLINDER BORE ×STROKE(mm) | 54×46 |
| DISPLACEMENT(ml) | 105 |
| RATED POWER[kw-（r/min）] | 1.1/3600 |
| MAXIMUM NET TORQUE | 3.5/2500 |
| FUEL CAPACITY(L) | 1.5 |
| ROTATE DIRECTION | Counterclockwise (facing the output shaft) |
| STARTING SYSTEM | Hand start |
| L×W×H(mm) | 270×265×345 |
| NET WEIGHT(kg) | 9 |
