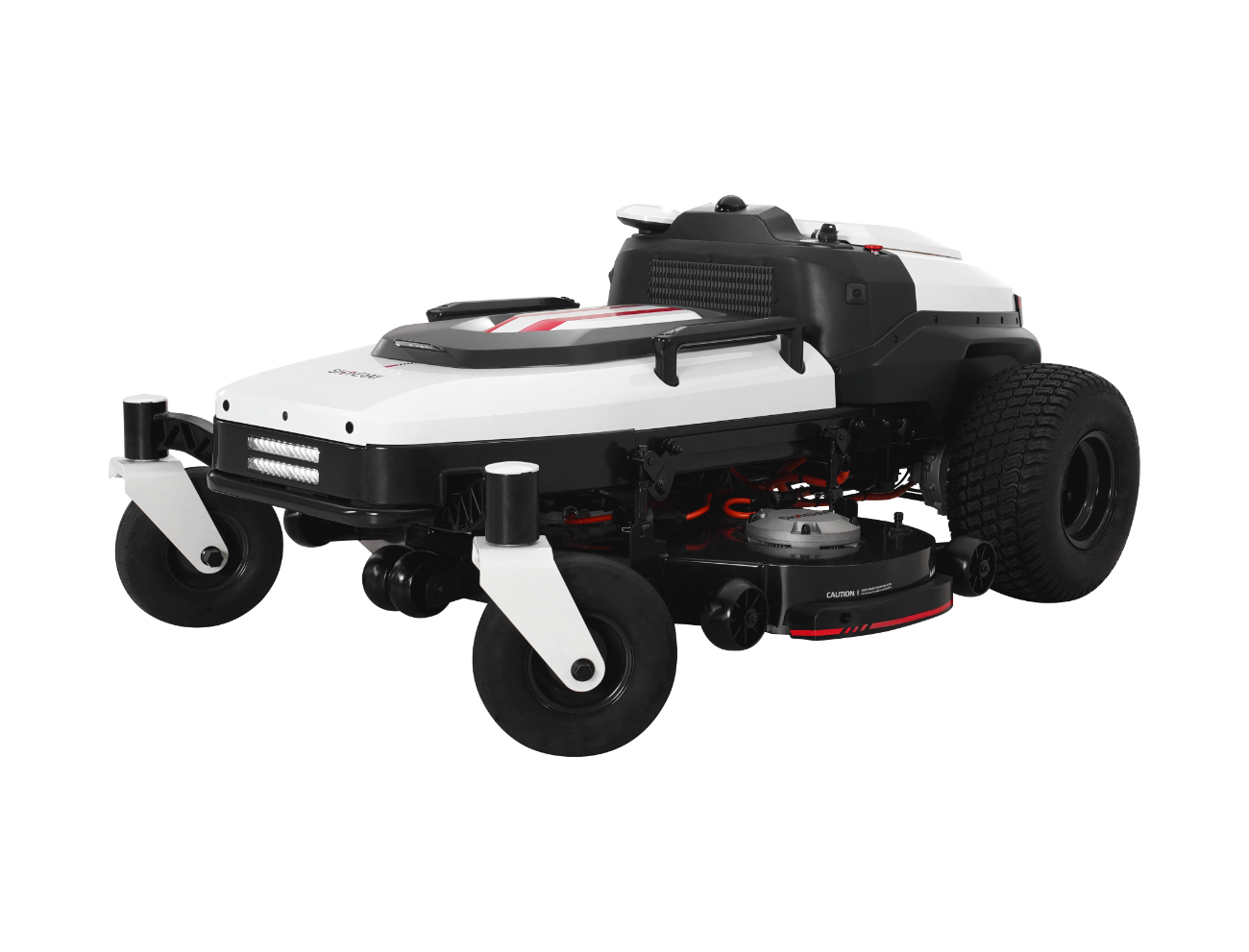

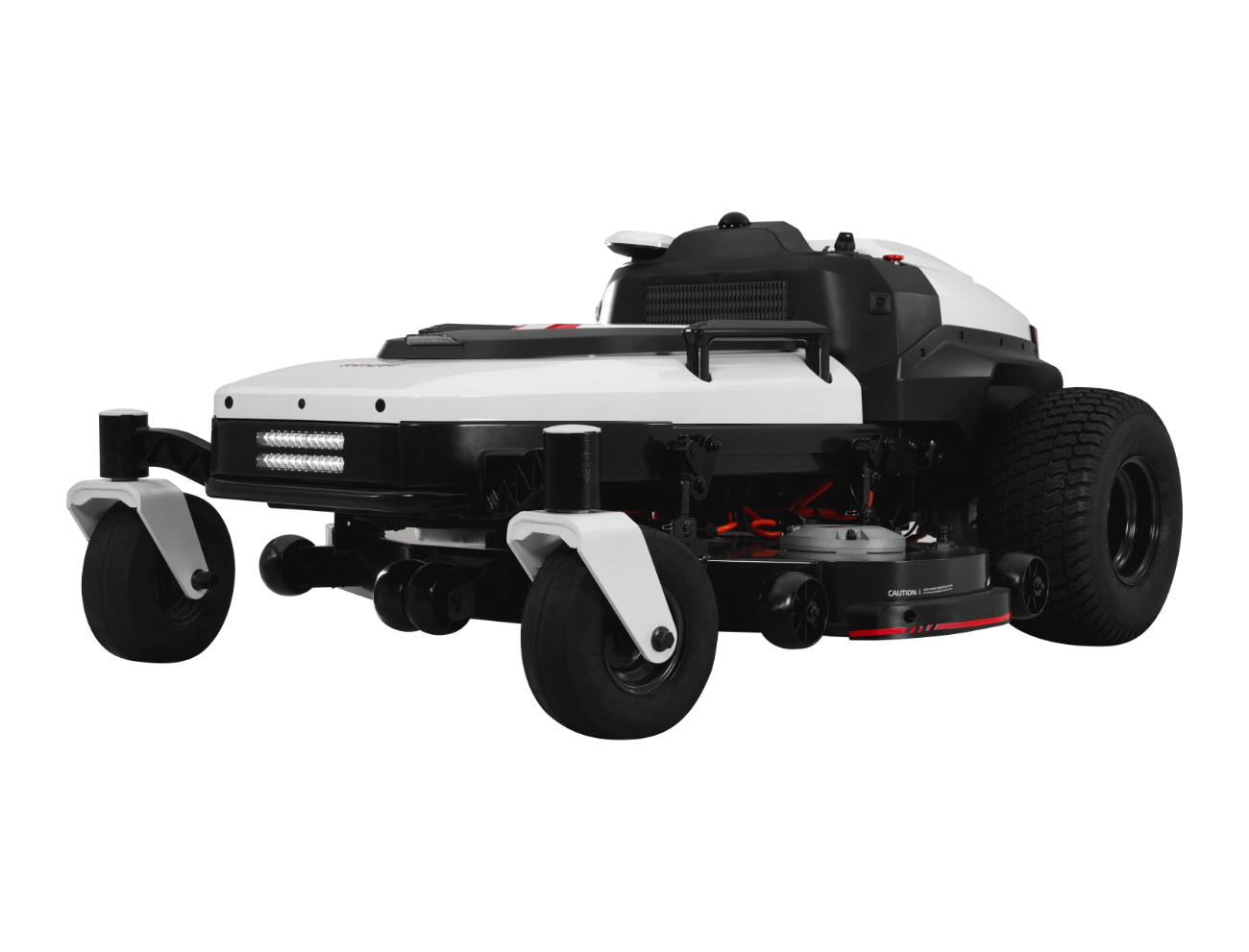

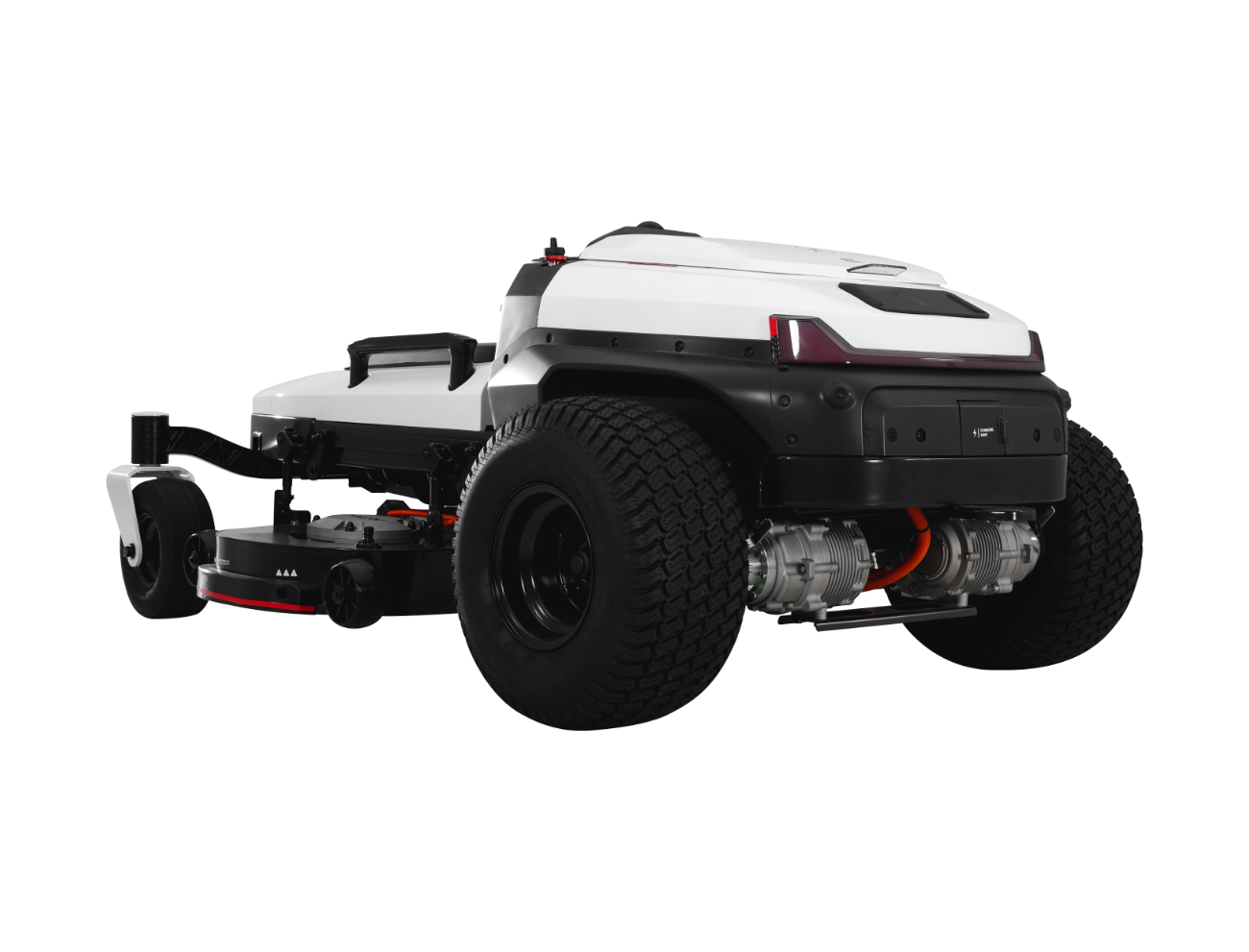

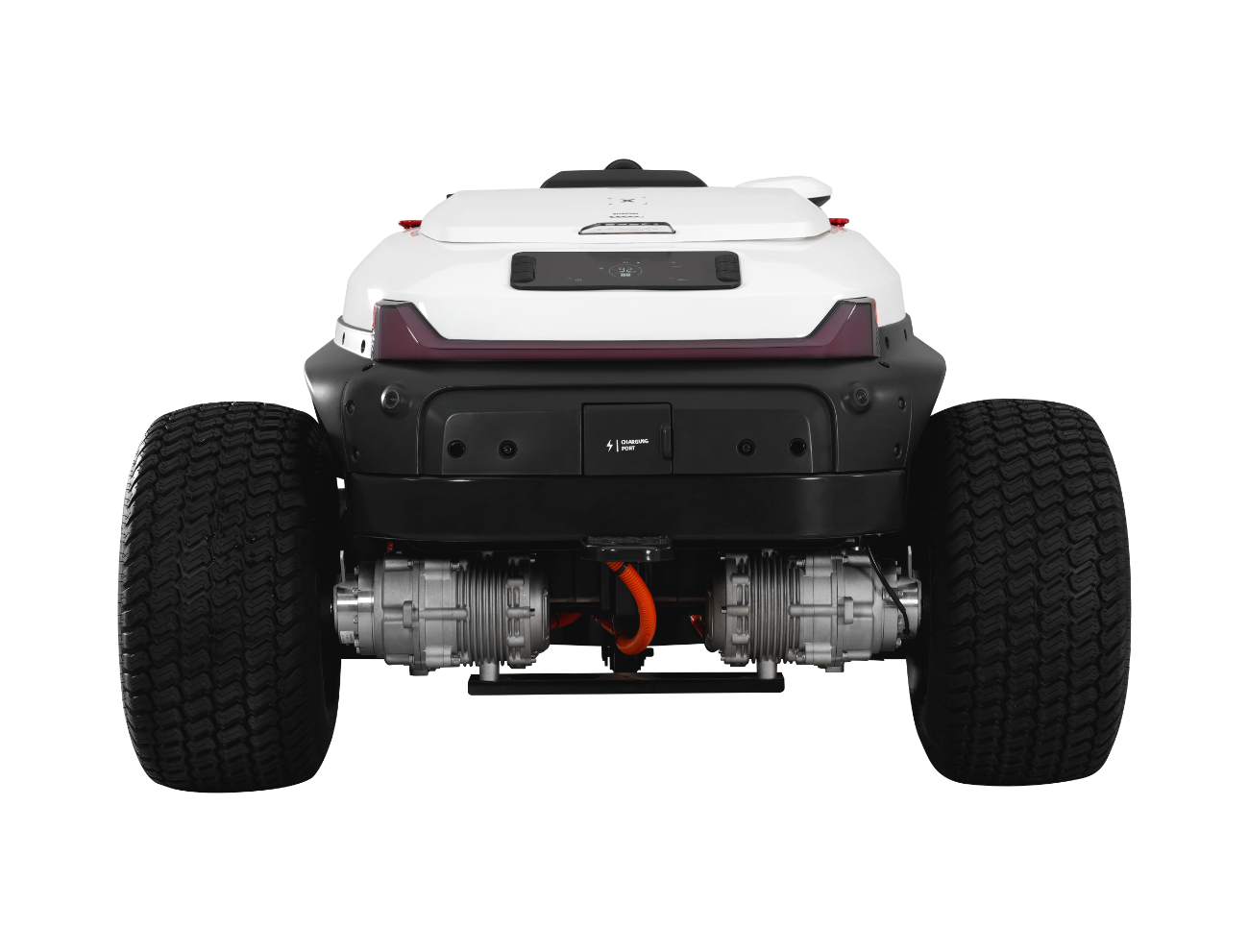

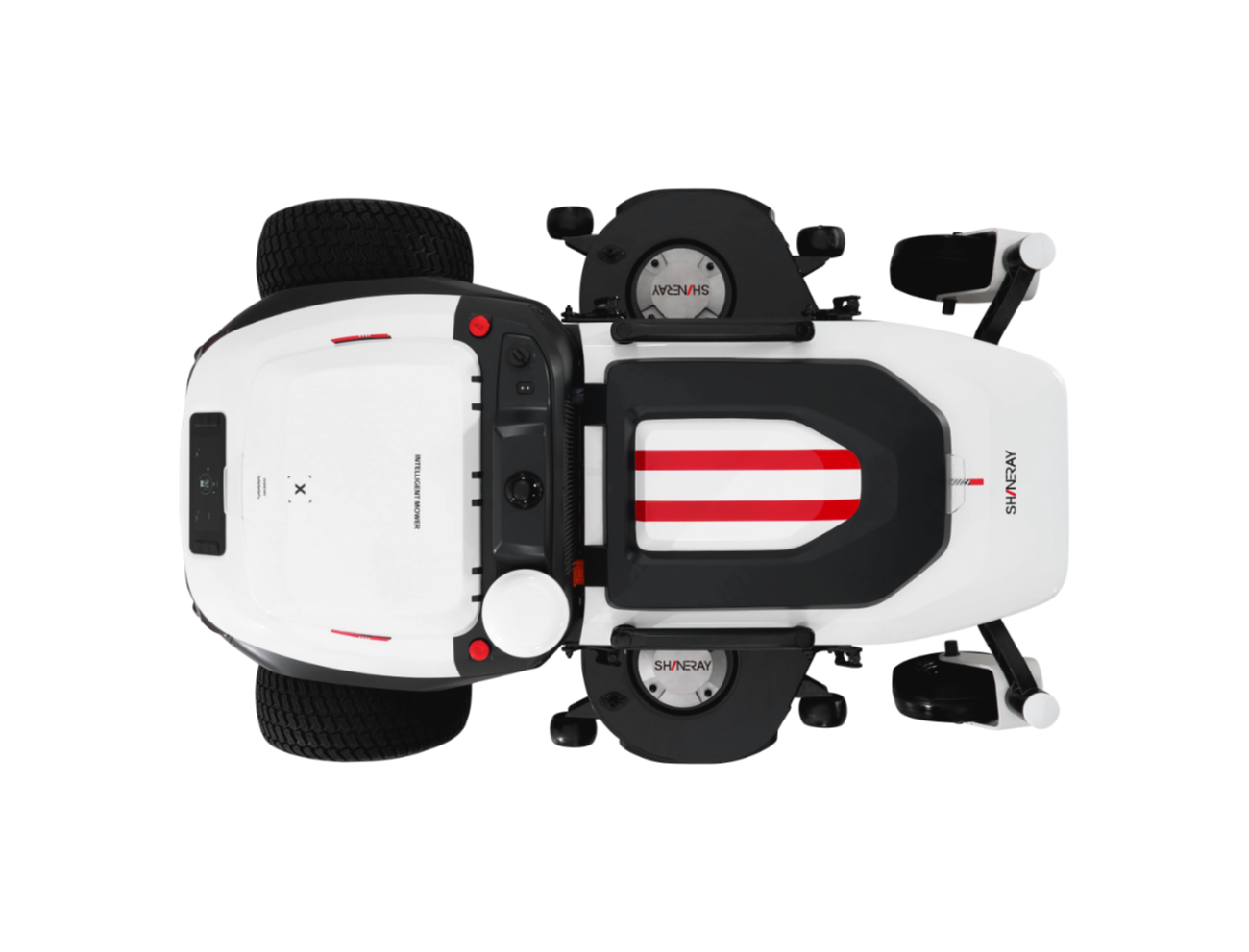

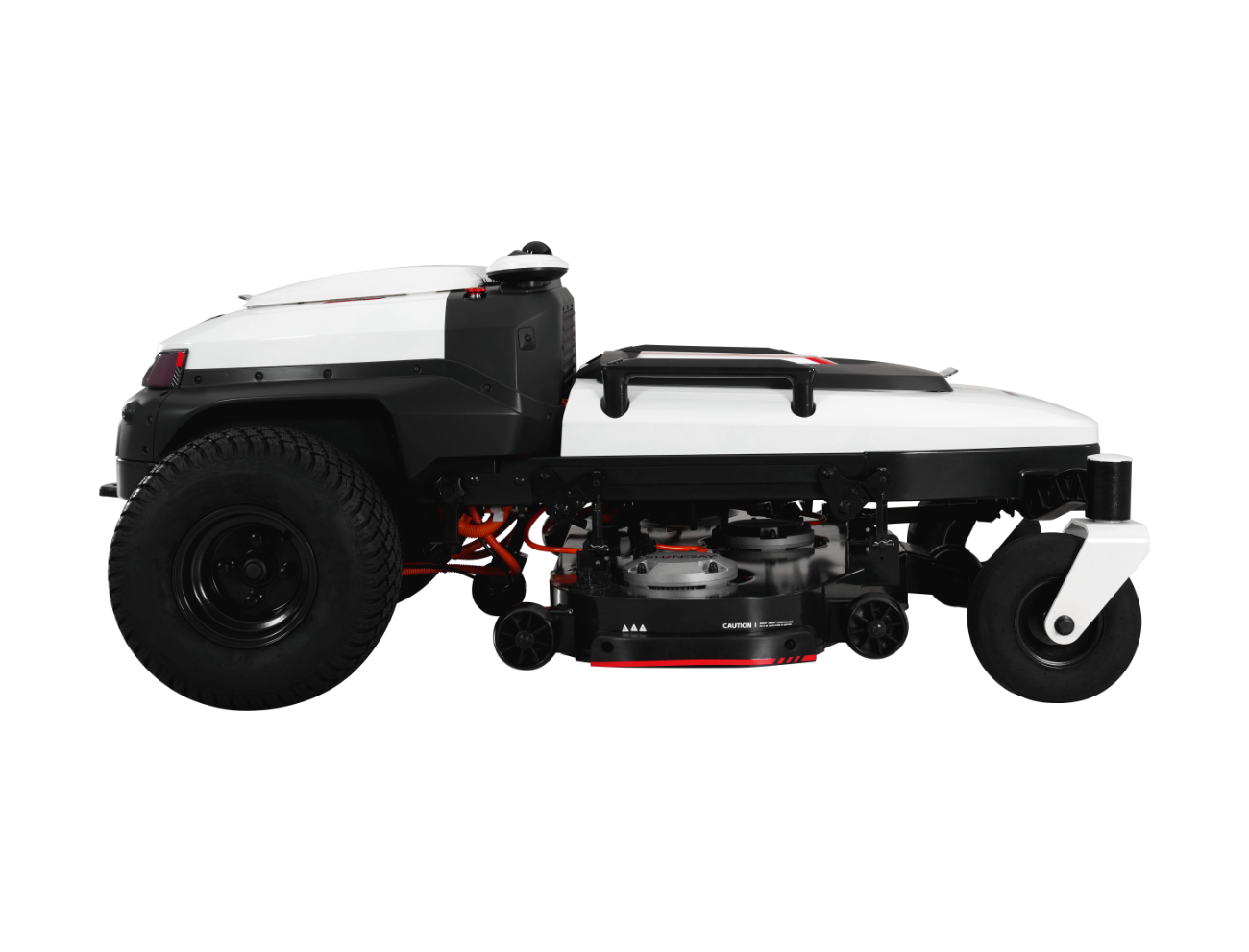

Commercial Robot
Ground Matrix 05
-
Output[ kw-（r/min）]7.5kW
-
Overall Dimensions( mm )1,830 × 1,286 × 755
-
Weight ( kg )302
Panel Information
Features
GM05 is a commercial autonomous mower designed to help professional landscaping teams reduce repetitive manual work and manage large turf areas more efficiently.
Combining commercial mowing performance, autonomous navigation, modular swappable batteries and intelligent fleet capabilities, GM05 brings automation into real-world commercial landscaping operations.

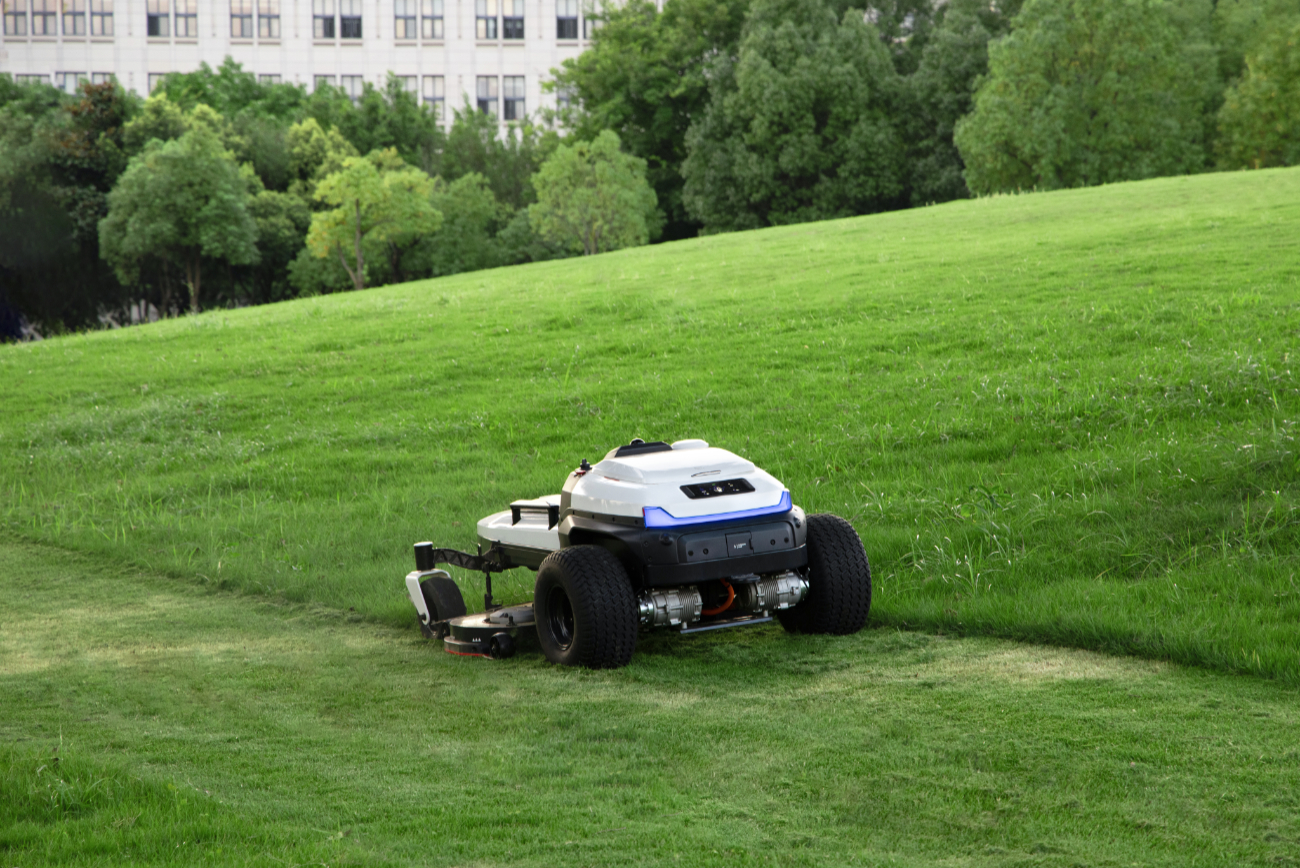

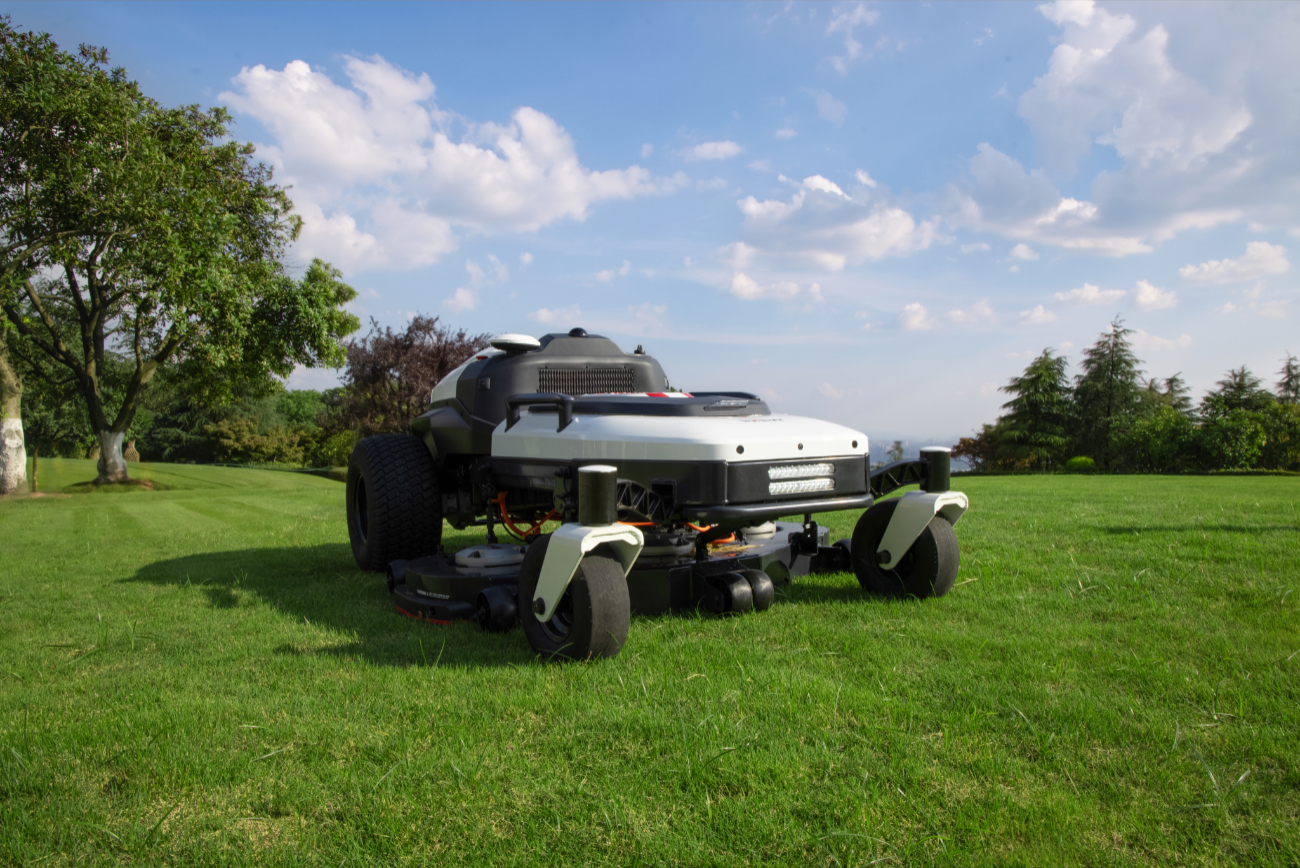

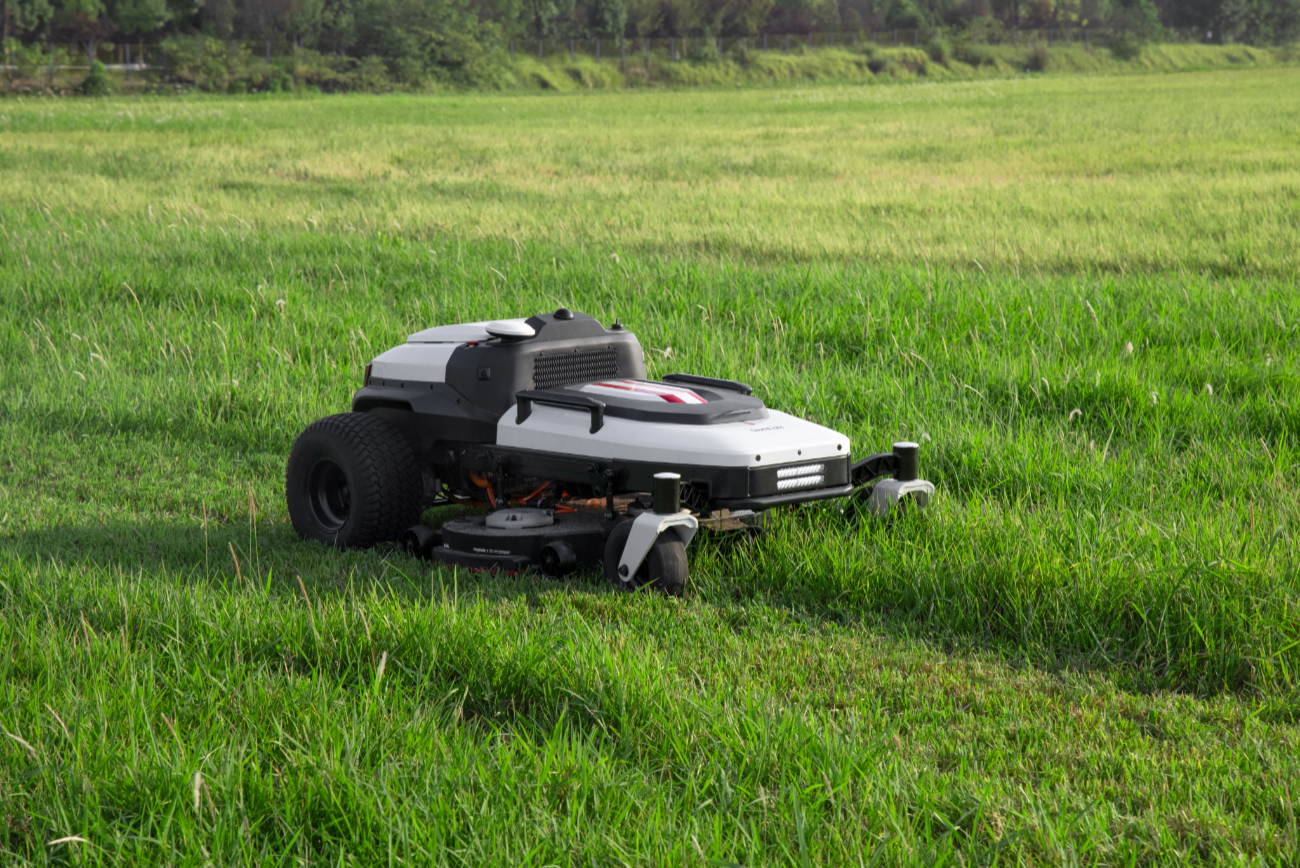

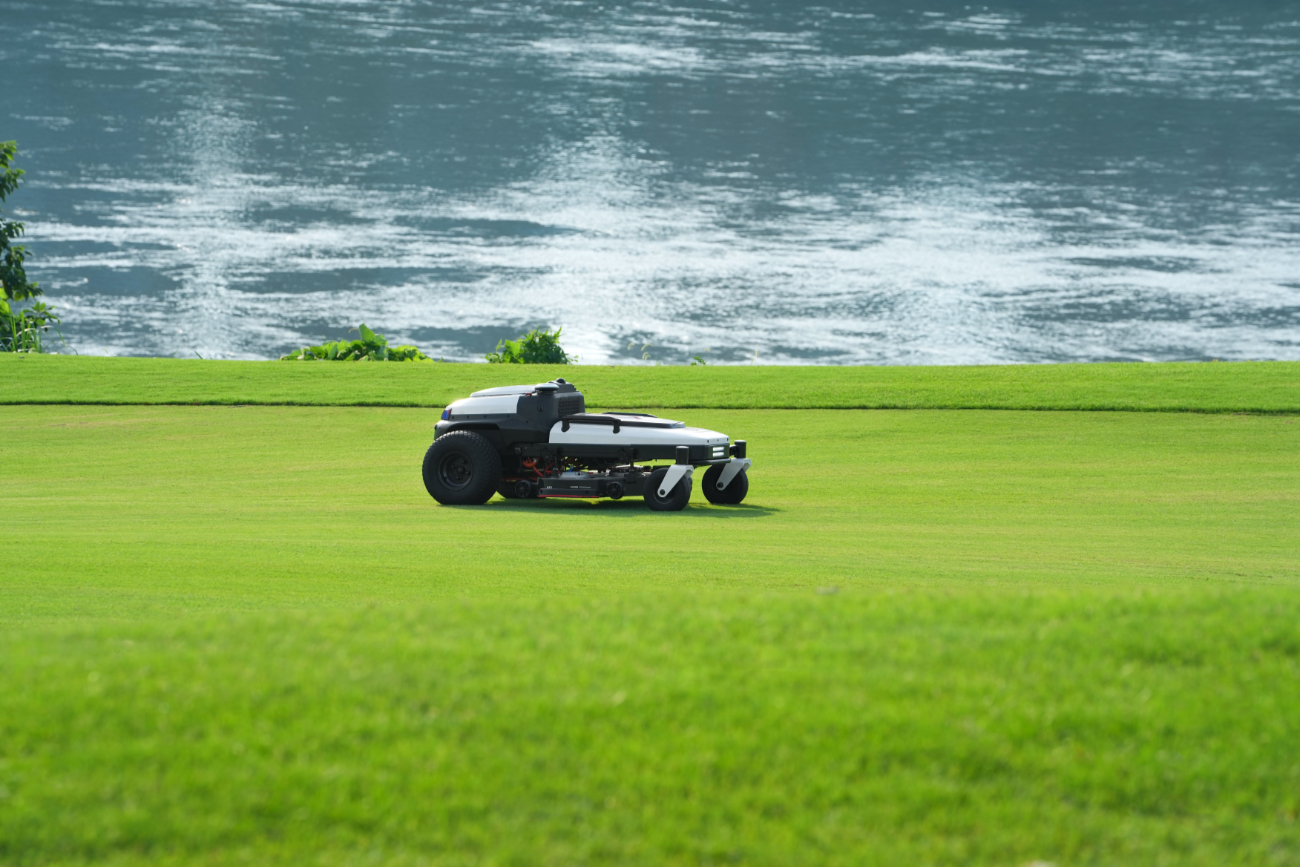

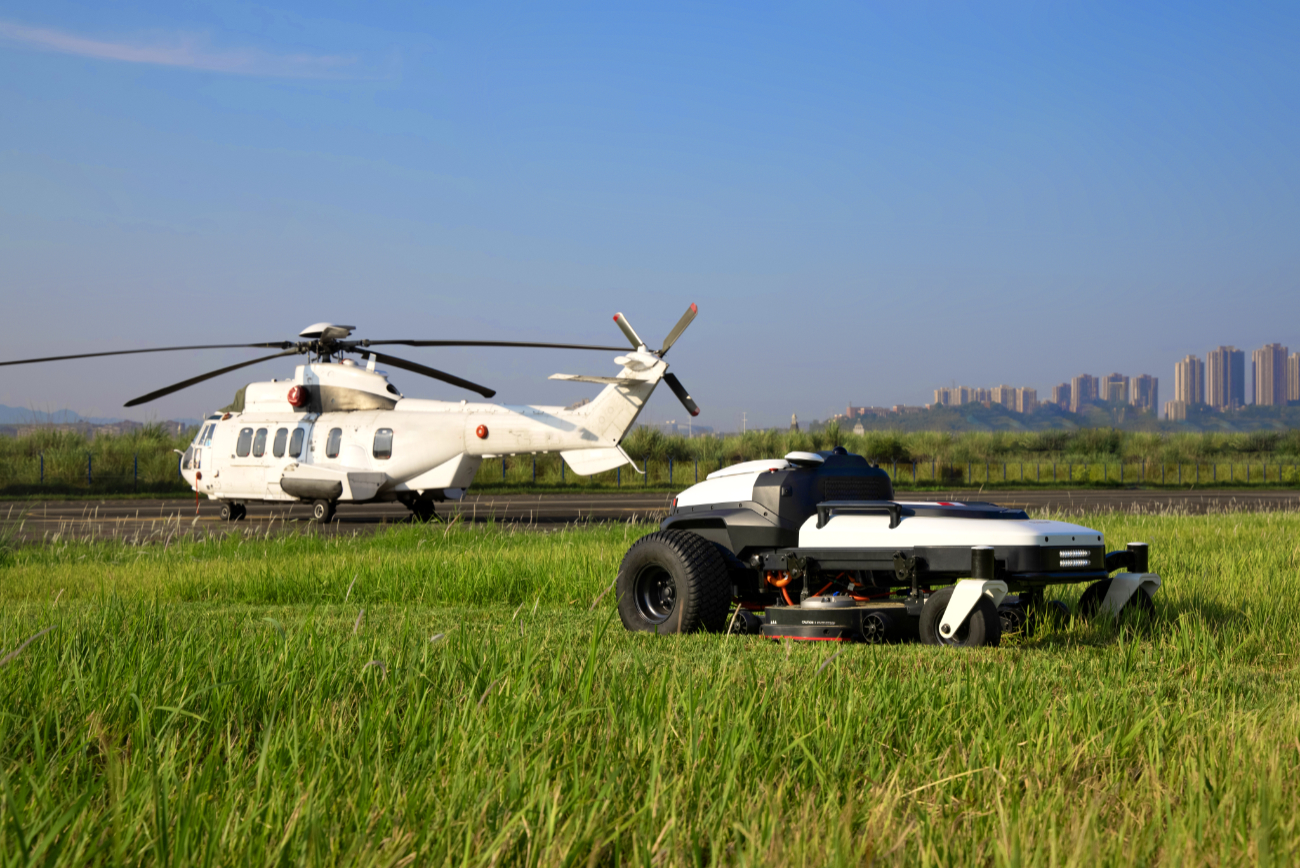

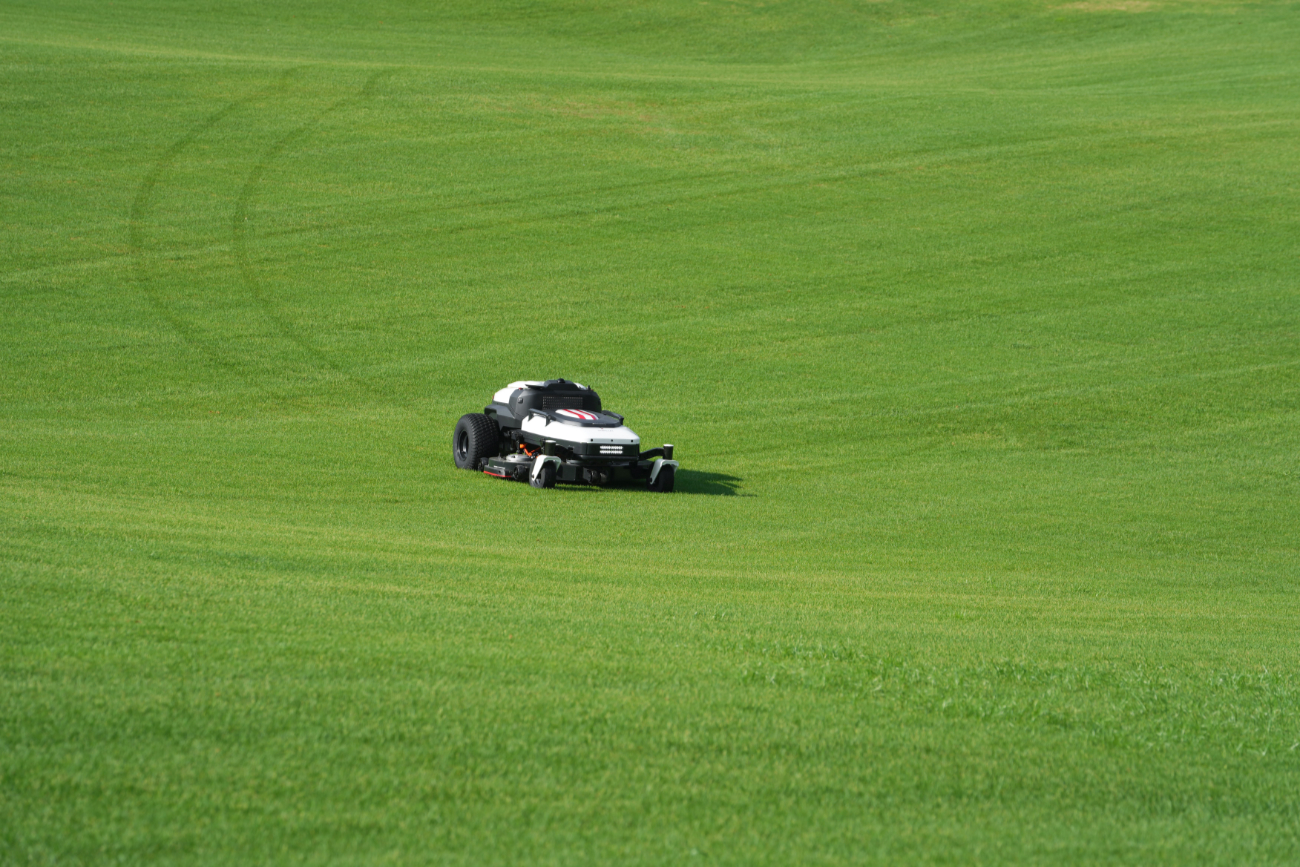

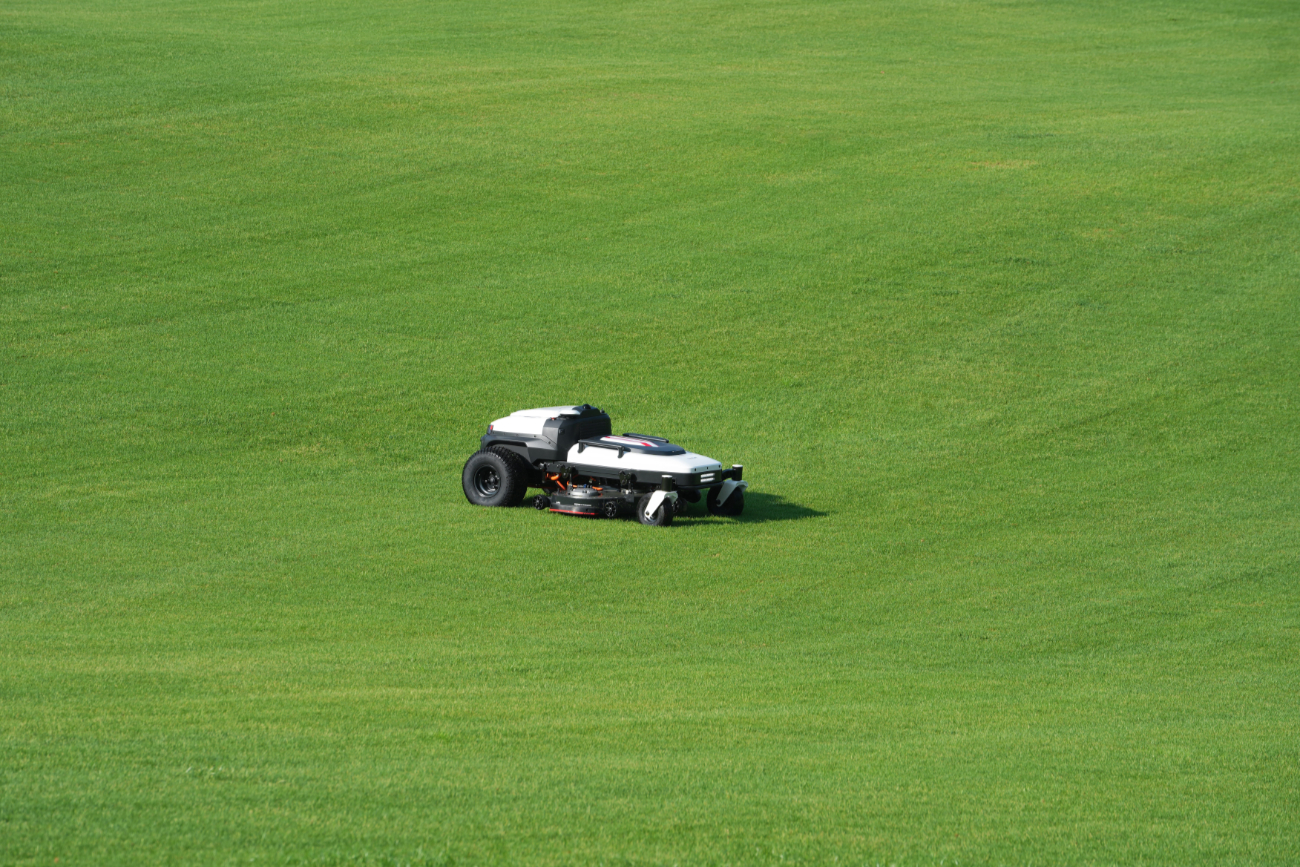

Usage Scenarios
Parameter Table
| Dimensions & Performance | |
| Overall Dimensions | 1,830 × 1,286 × 755 mm (72 × 51 × 30 in) |
| Machine Weight | 302 kg (666 lb) |
| Cutting Width | 1,220 mm (48 in) |
| Cutting Height | 25–105 mm (1–4 in) |
| Height Adjustment | Electric, continuously adjustable |
| Cutting System | 3-blade rotary cutting system |
| Blade Type | Straight Blade |
| Blade Motor Speed | 3,000 RPM |
| Mowing Productivity | 5,000–10,000 m²/h (1.25–2.5 acres/h)* |
| Max. Mowing Speed | 8 km/h (5 mph) |
| Max. Travel Speed | 12.8 km/h (8 mph) |
| Max. Working Slope | 20° |
| Water Resistance | IPX5 |
| Battery & Charging | |
| Battery Chemistry | LFP |
| Maximum Battery Capacity | 9 kWh |

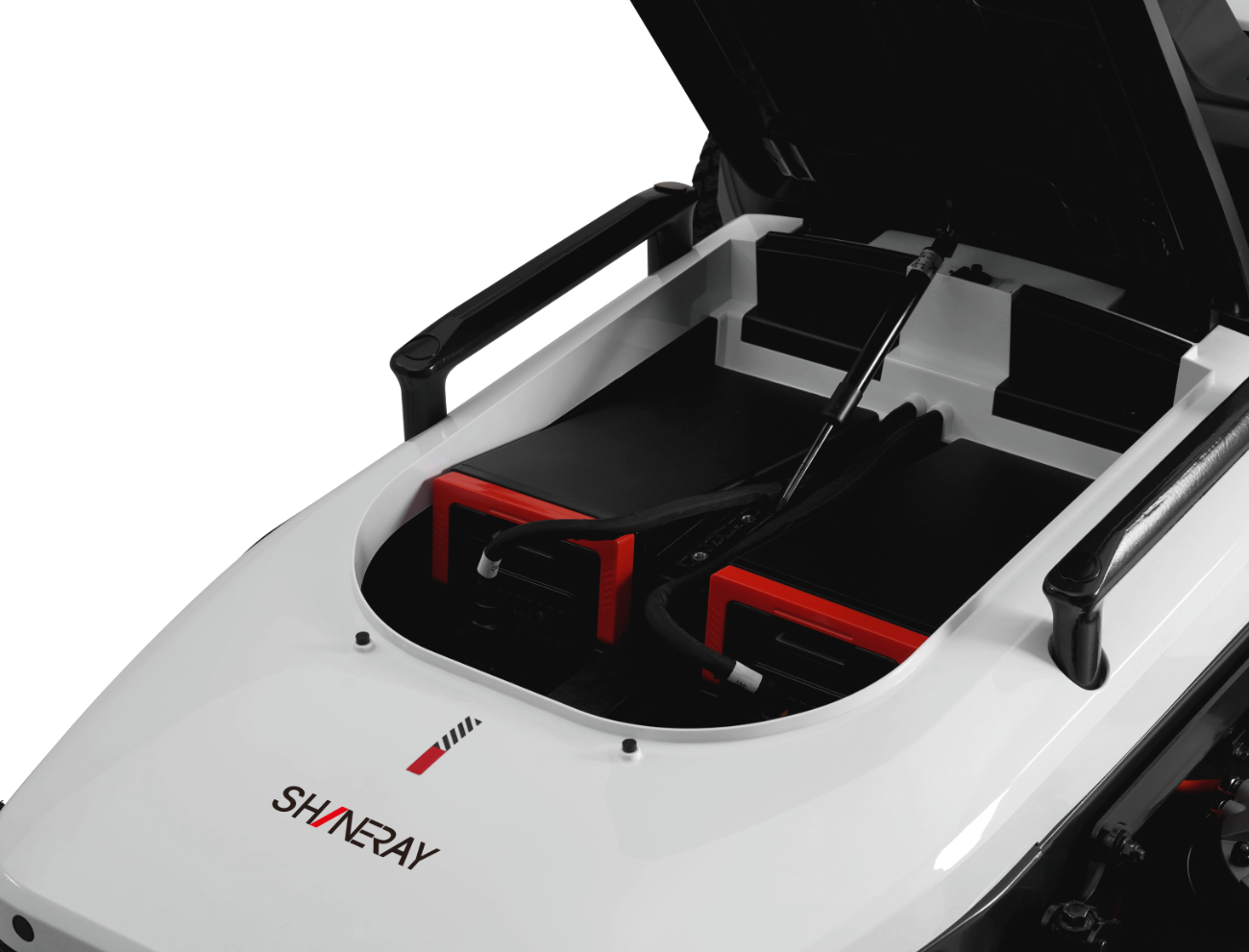

| Battery Configuration | 1–6 modular battery packs |
| Runtime | Approx. 4–5 h* |
| Charging Voltage | 120V/220V |
| Fast Charging Time | Approx. 4.5 h |
| Standard Charging Time | Approx. 9 h |
| Autonomous & Intelligent Functions | |
| Positioning | RTK / nRTK + LiDAR + IMU |
| Obstacle Detection | LiDAR + Vision + Ultrasonic |
| Virtual Boundary | Yes |
| Automatic Route Planning | Yes |
| Multi-Zone Management | Yes |
| Map Storage | Yes |
| Multi-Mower Map Sharing | Yes |
| Remote Operation | Yes |
| Tilt Detection | Yes |
| Rain Sensor | Yes |
| OTA Updates | Yes |
